RSCP5024
e-reader
Technical details

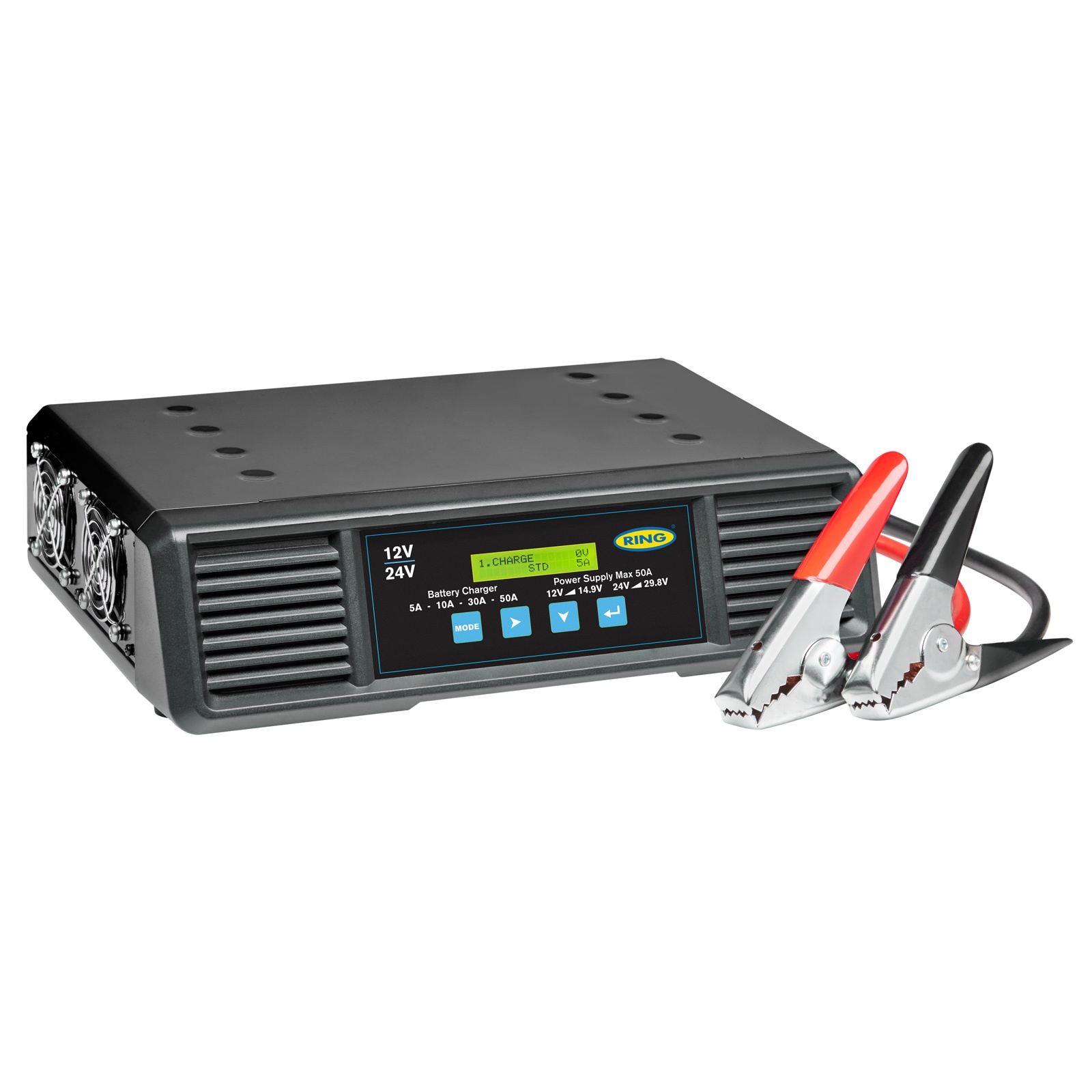

RSCP5024
SMARTCHARGE PRO
50A BATTERY CHARGER
For Workshop and Showroom Use
12V and 24V compatible ideal for intensive use with fleets of mixed vehicles
Up to 50A Continuous charge

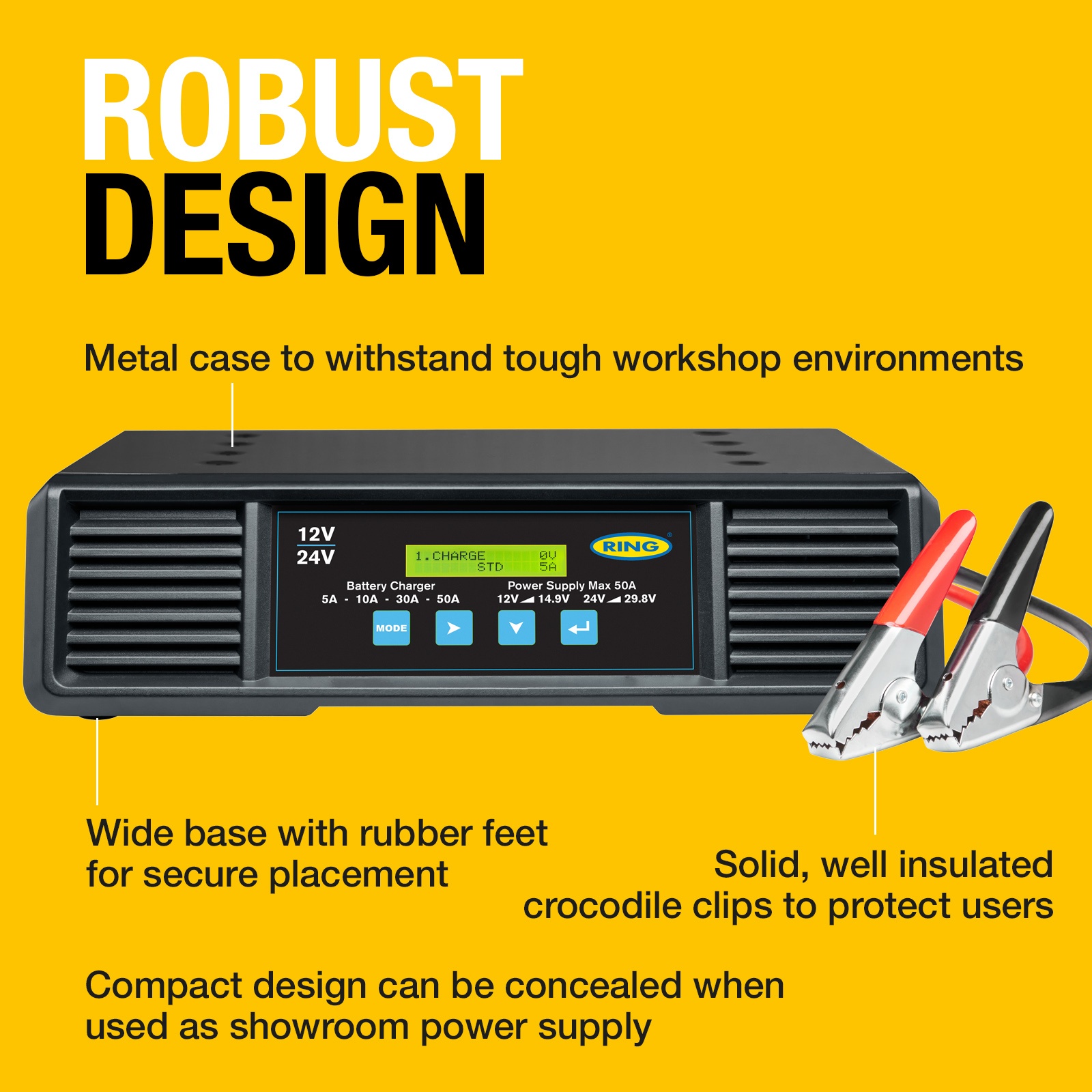

Removable fully insulated high capacity battery clamps
Rapid recharge in minutes
Stop/Start compatible

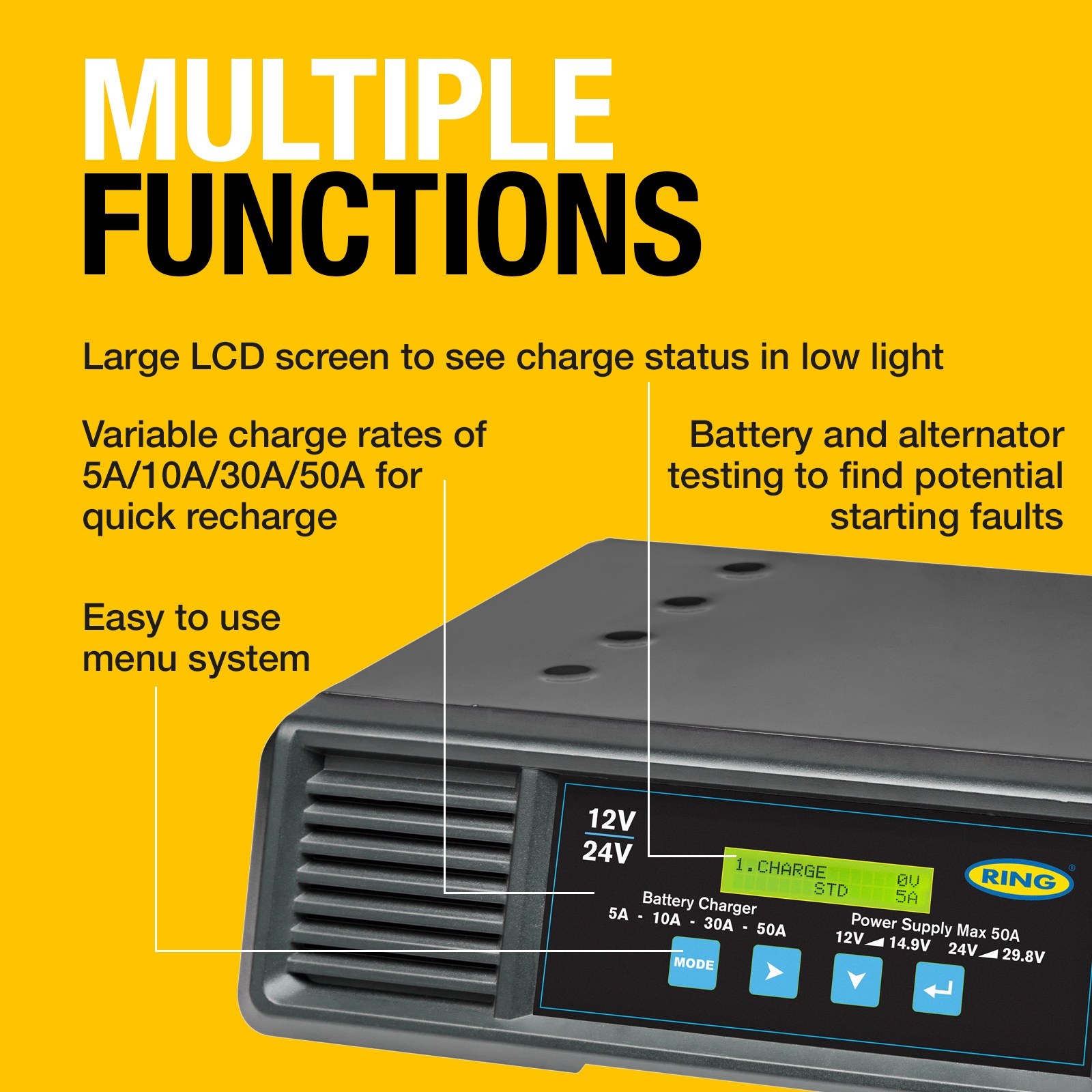

Variable charging rates 12/24V at 5/10/30/50A

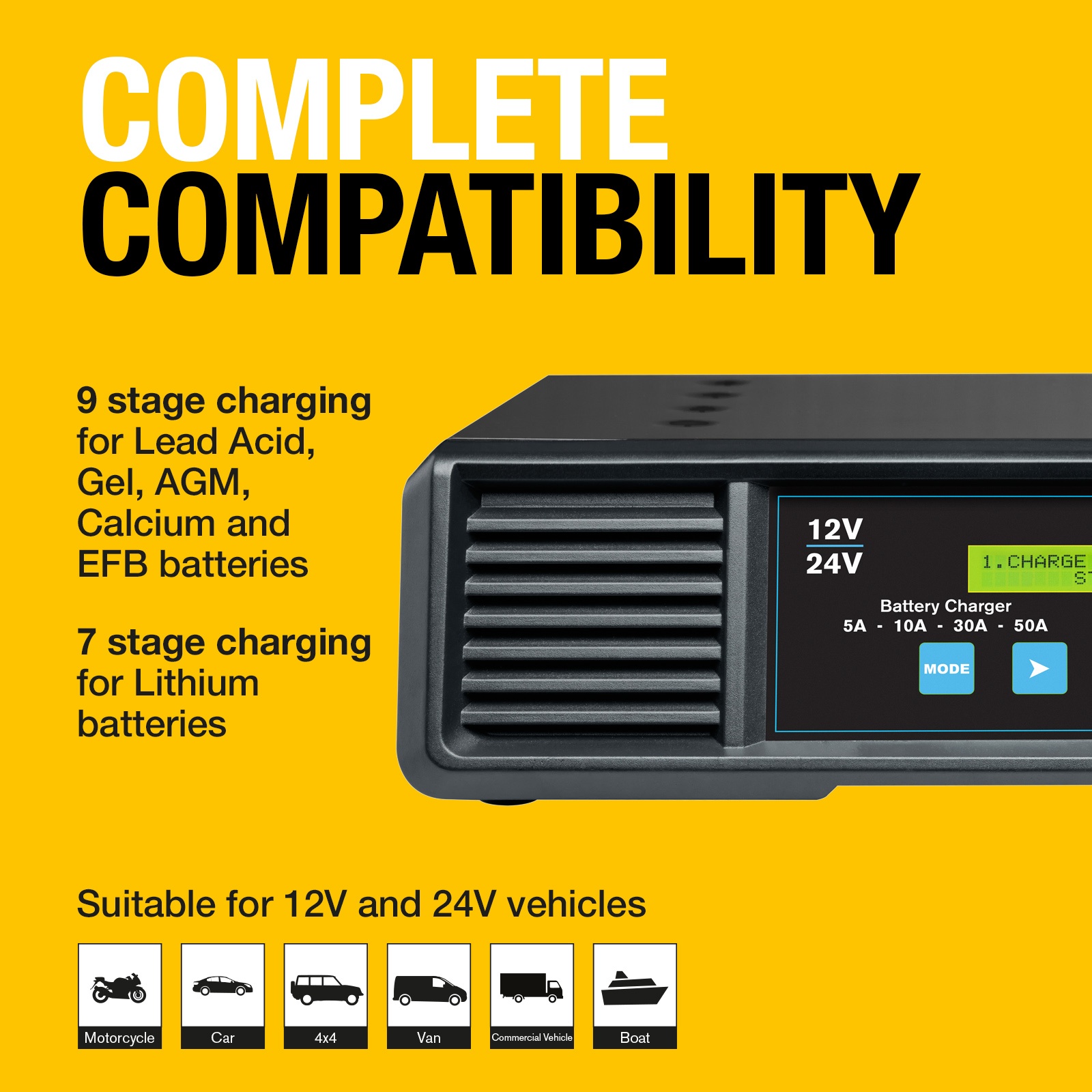

9-Stage charging process for Lead Acid/Gel/AGM/Calcium/EFB batteries
7-Stage lithium charging process for Lithium batteries
Large LCD display screen
Battery and alternator diagnosis
Pre-charge health check for your engine system
Easy to use menu system

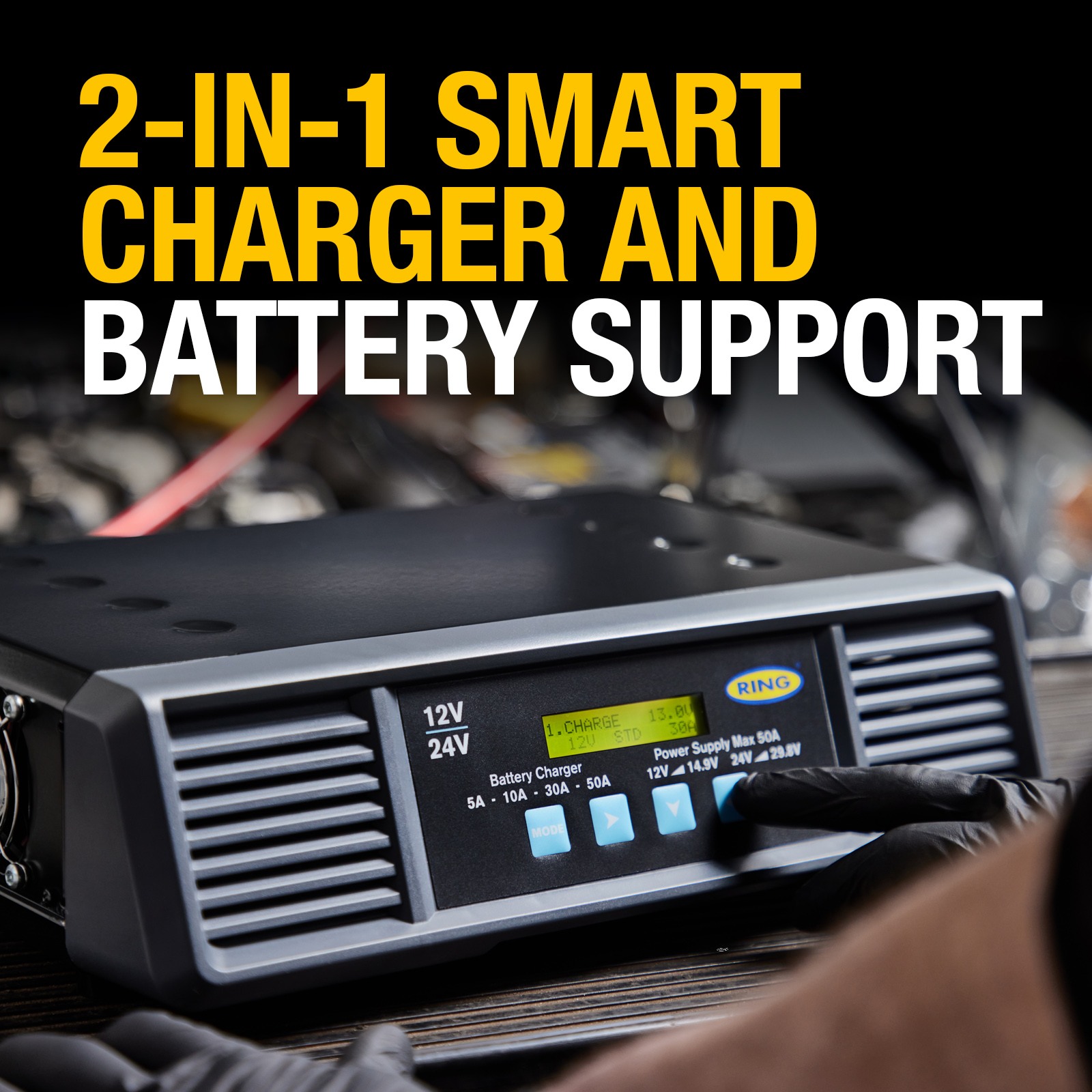

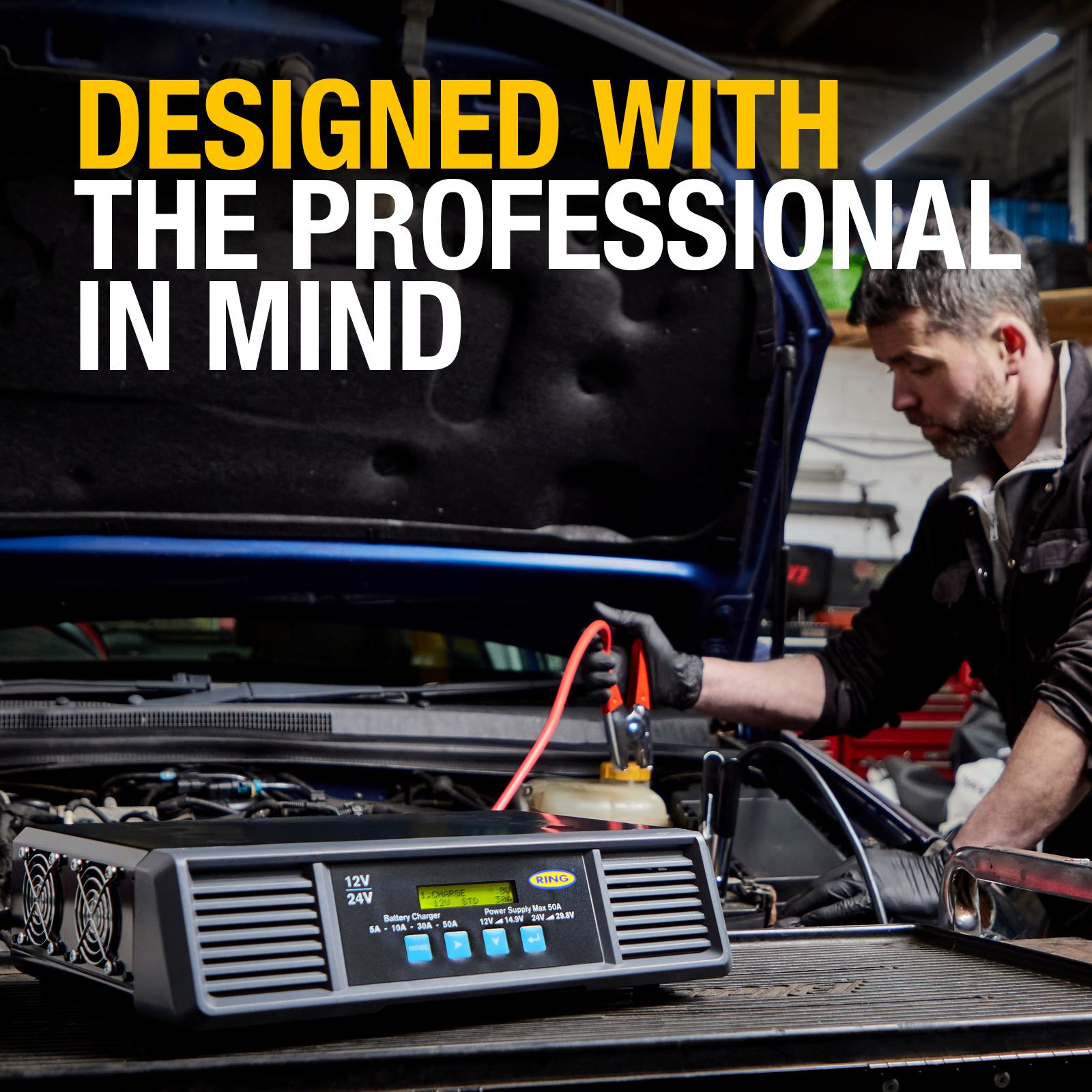

50A smart battery charger with multiple charge rate settings. A complete battery support unit suitable for 12V and 24V vehicles with mixed battery types including Lithium and START/STOP. Slimline & light ideal for intensive use with fleets of mixed vehicles in garages workshops and showroom environments. With heavy duty removable clamps.

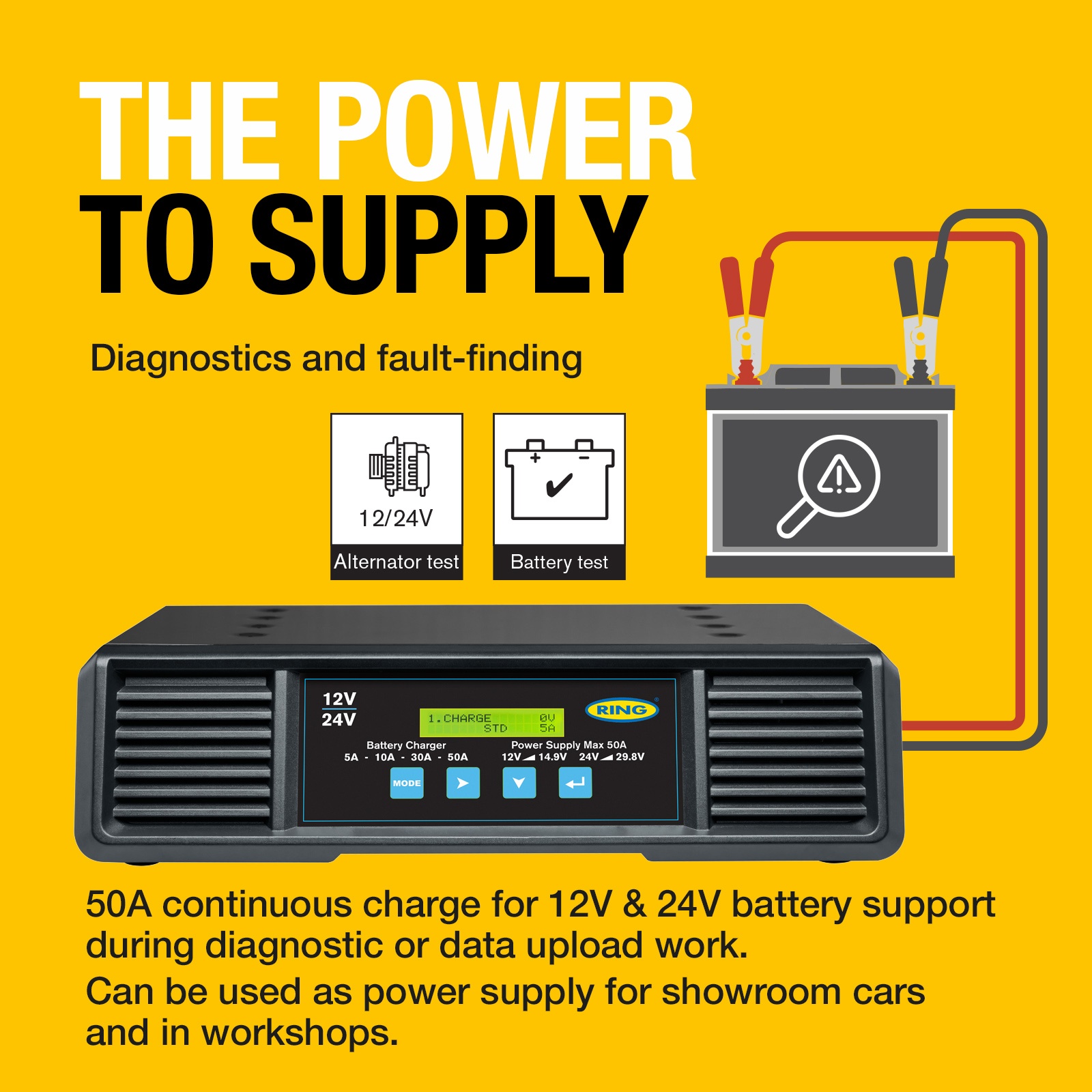

Using the power supply function maintain a constant battery voltage level at both 12V & 24V for when appliances or programming & vehicle diagnostic equipment is connected and drawing power. Multi-chemistry and charging level selection allow the user to set the specific charge required for different battery types. Test functions provide battery and alternator diagnosis. With LCD display and an easy to navigate menu system.
Featuring smart charge technology which optimises battery performance and improves the ability to hold charge. Two dedicated charging curves seven stage for Lithium batteries and nine stage for all other chemistries optimising the battery performance and improving the ability to hold charge.
Related
Products
RSCP10024
SMARTCHARGE PRO
100A BATTERY CHARGER
For Workshop and Showroom Use
12V/24V DC
RSCP3024
SMARTCHARGE PRO
30A BATTERY CHARGER
With Lithium Charging Mode
12V/24V DC
RSCPR824
SMARTCHARGEPRO
8A BATTERY CHARGER
LCD Display
24V DC
Spec
RSCP5024
RSCP10024
RSCP3024
RSCPR824
Description
50A SmartChargePro
Input Voltage
220-240V AC
Max Output Voltage
12/24V DC
Max Output Current
50A
Charge Rates
5/10/30/50A
Battery Capacity
14-500Ah
Battery Compatability
Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
Temperature Compensation
No
Operating Temperature
-20 to 50
LCD Display
Yes
Approvals
CE
Product Dimensions (mm)
102 x 370 x 247
Weight (kg)
6.048
100A SmartChargePro
220-240V AC
12/24V DC
100A
12V@ 5/10/30/50/60/100A 24V@ 5/10/30/50/60/80A
14-1000Ah
Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
No
-20 to 50
Yes
CE
100 x 370 x 280
7.038
30A SmartChargePro
220-240V AC
12/24V DC
30A
5/10/20/30A
14-300Ah
Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
No
-20 to 50
Yes
CE
235 x 220 x 80
2.8
8A SmartChargePro
230V AC
24V DC
8A
2 / 4 / 6 / 8A
14-160Ah
Flooded/Calcium/Gel/AGM
Yes
N/A
Yes
CE
85 x 175 x 245
2.432
