| RSCP10024

Technical details

RSCP10024

100A BATTERY SUPPORT

SMARTCHARGE PRO

For Workshop and Showroom Use

12V and 24V for intensive use with mixed vehicle fleets and diagnostic/remapping purposes
Up to 100A continuous charge
Rapid recharge in minutes
Stop/Start compatible

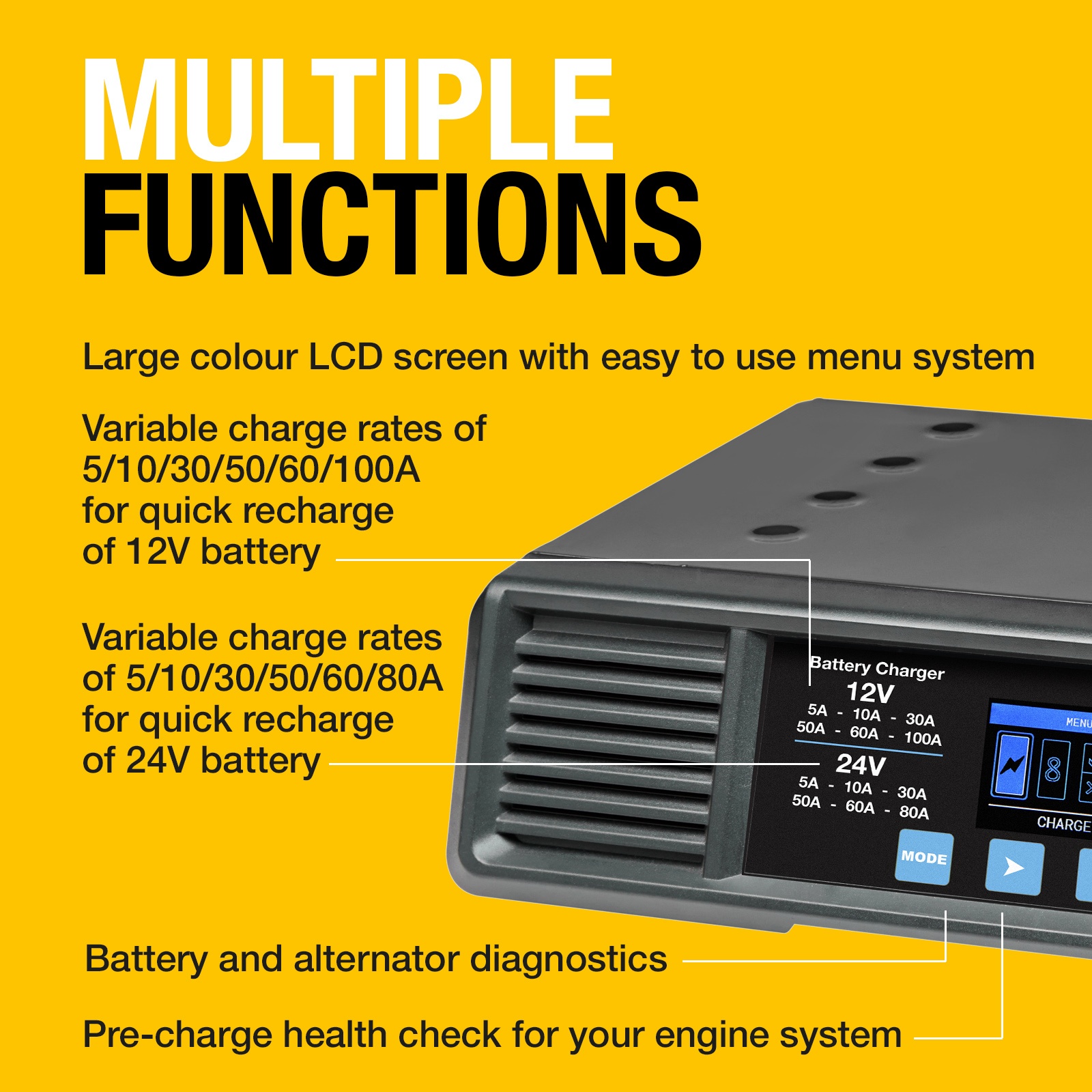

5/10/30/50/60/80A (24V only) and 100A (12V only)
9-Stage charging process for Lead Acid/Gel/AGM/Calcium/EFB batteries
7-Stage lithium charging process for Lithium batteries
Large LCD colour screen
Battery and alternator diagnosis
Pre-charge health check for your engine system
Easy to use menu system

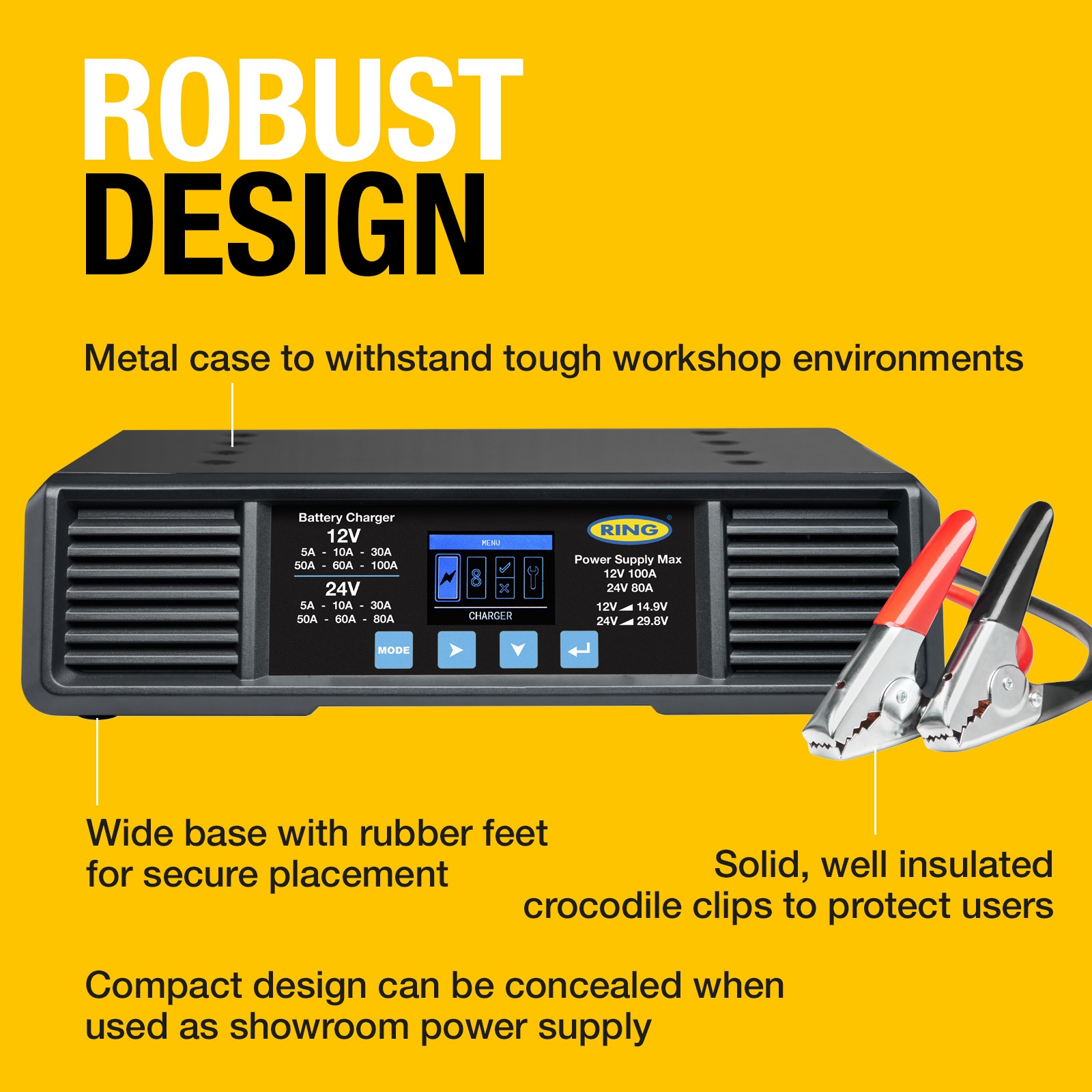

Removable fully insulated high capacity battery clamps

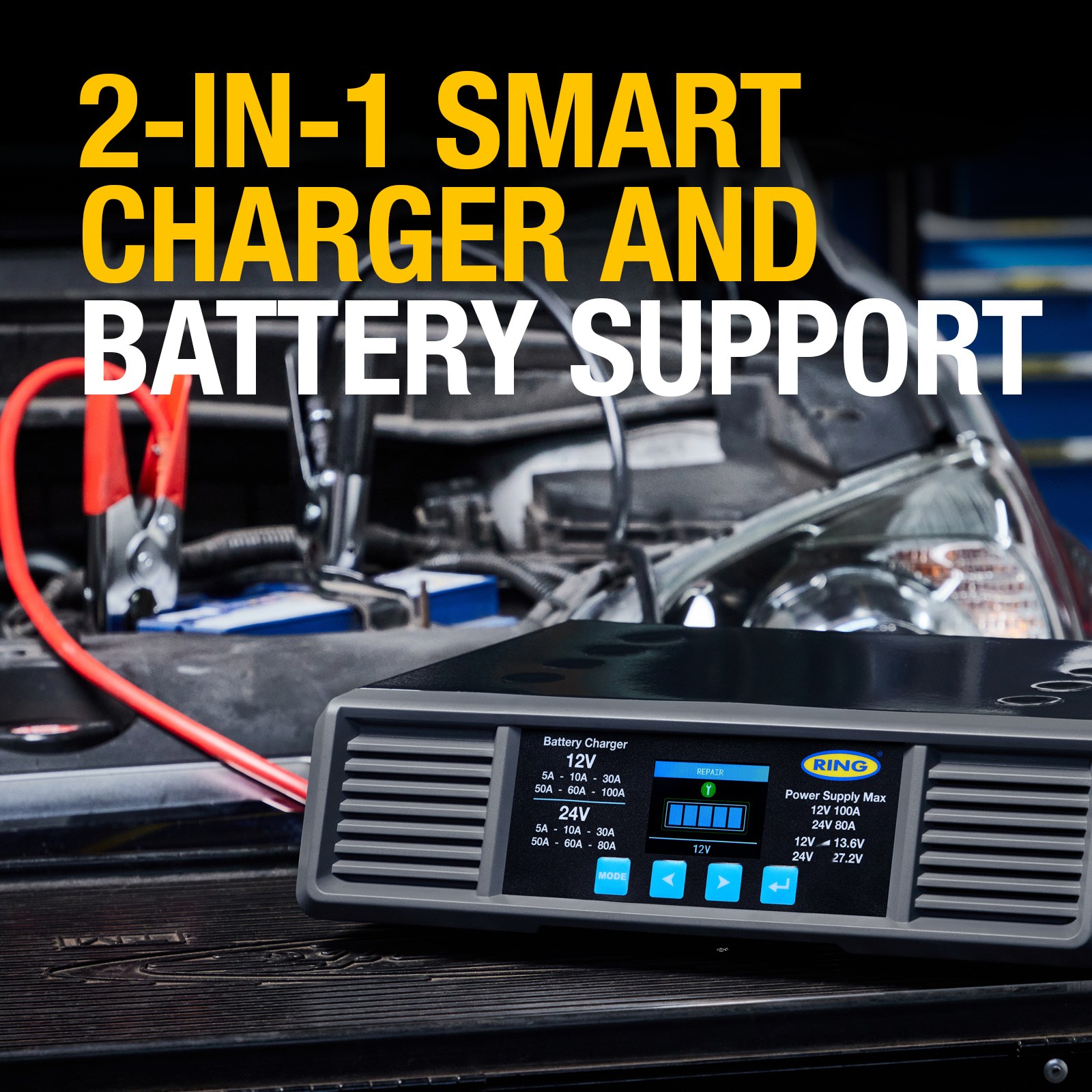

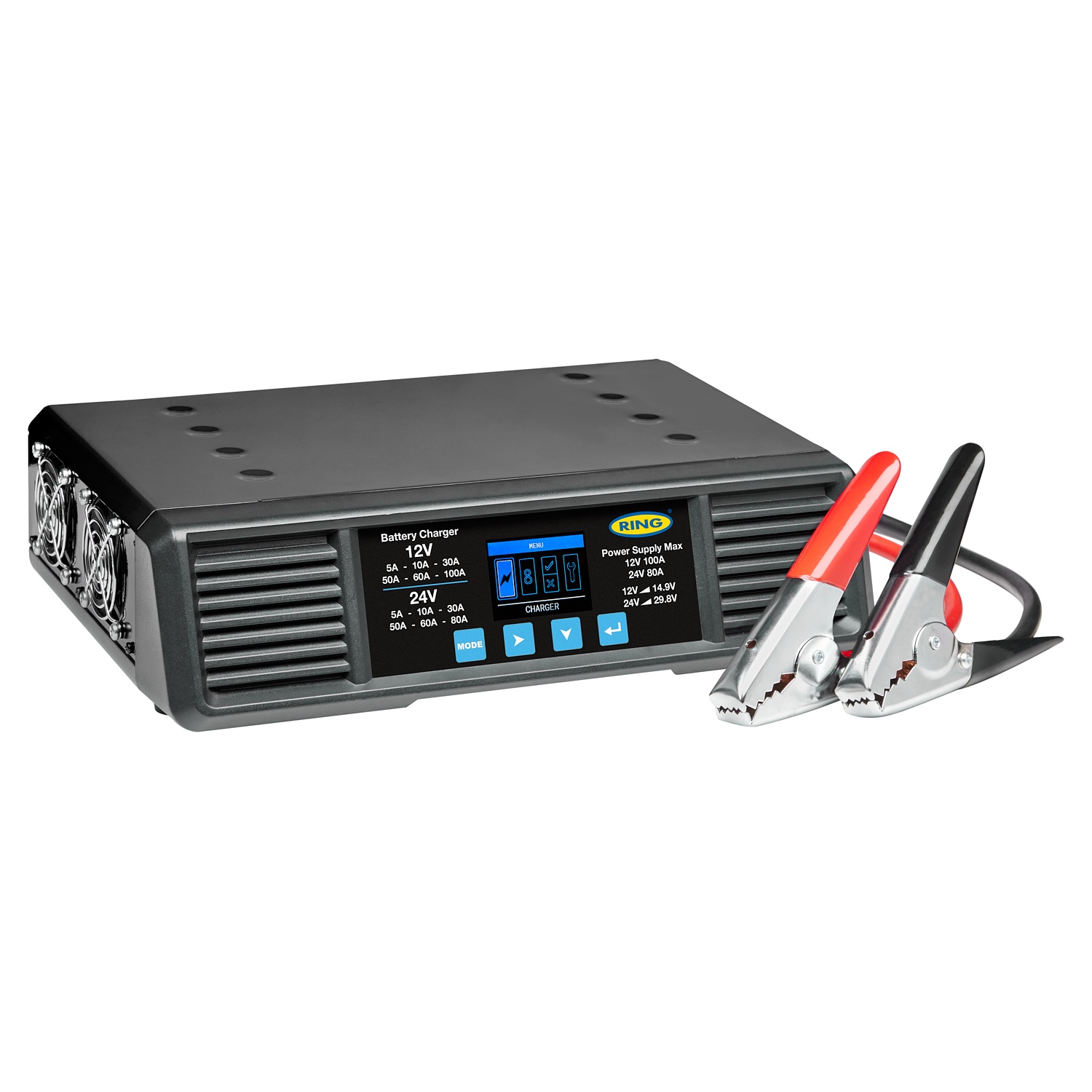

100A smart battery charger with multiple charge rate settings. A complete battery support unit suitable for 12V and 24V vehicles with mixed battery types including Lithium and START/STOP. Slimline & light ideal for intensive use with fleets of mixed vehicles in garages and workshops for diagnostic and remapping purposes and showroom environments. With heavy-duty removable clamps.

Using the power supply function maintain a constant battery voltage level at both 12V & 24V for when appliances or programming & vehicle diagnostic equipment is connected and drawing power. Multi-chemistry and charging level selection allow the user to set the specific charge required for different battery types. Test functions provide battery and alternator diagnosis. With LCD display and an easy to navigate menu system.

Featuring smart charge technology which optimises battery performance and improves the ability to hold charge. Two dedicated charging curves seven stage for Lithium batteries and nine stage for all other chemistries optimising the battery performance and improving the ability to hold charge.

Related Products

RSCP20

20A BATTERY SUPPORT SMARTCHARGE PRO
WITH JUMP STARTER FUNCTION

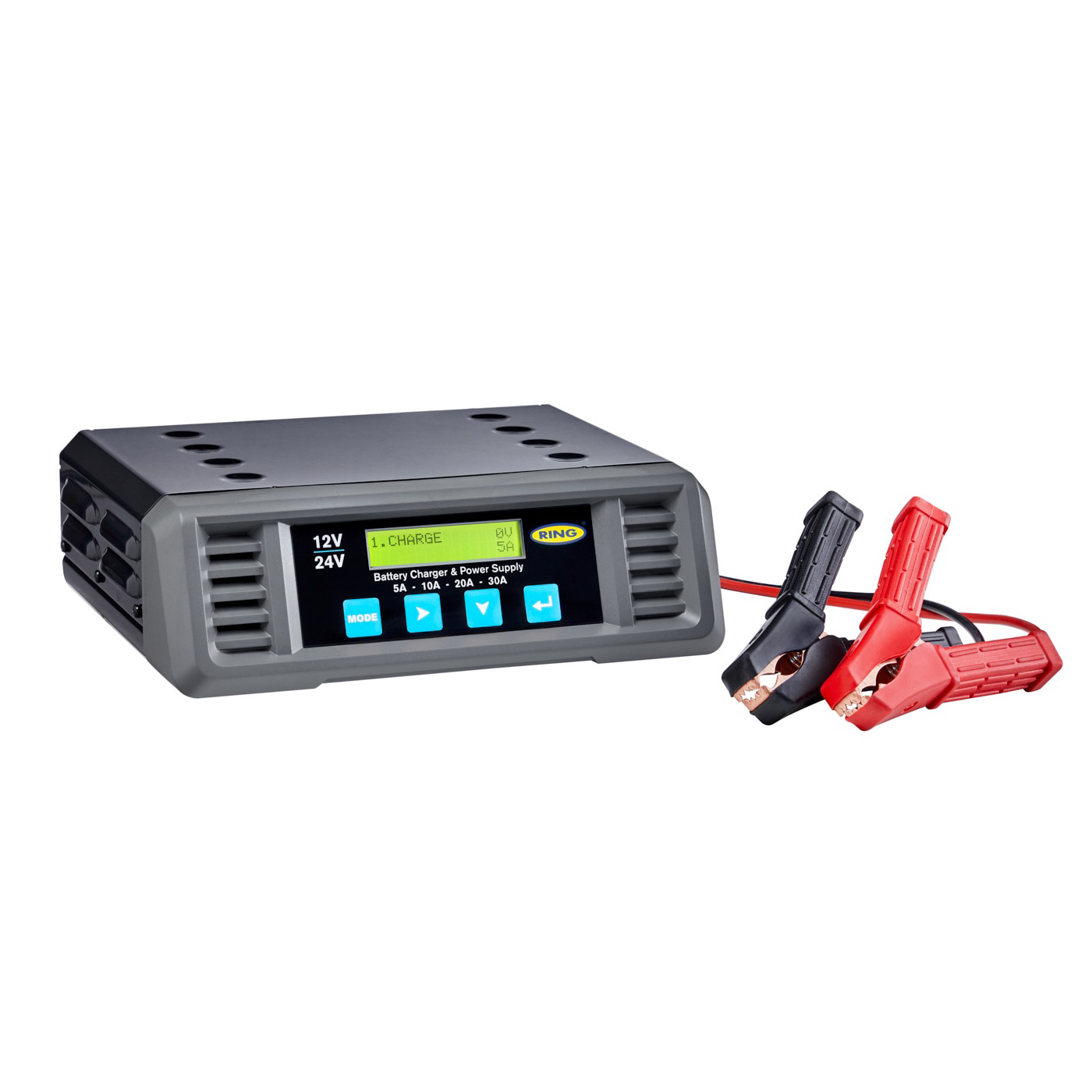

RSCP3024

SMARTCHARGE PRO
30A BATTERY CHARGER

RSCP5024

SMARTCHARGE PRO
50A BATTERY CHARGER

RSCPR824

SMARTCHARGEPRO
8A BATTERY CHARGER

Spec	RSCP10024	RSCP20	RSCP3024	RSCP5024	RSCPR824
Description	100A SmartChargePro
Input Voltage	220-240V AC
Max Output Voltage	12/24V DC
Max Output Current	100A
Charge Rates	12V@ 5/10/30/50/60/100A 24V@ 5/10/30/50/60/80A
Battery Capacity	14-1000Ah
Battery Compatability	Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
Temperature Compensation	No
Operating Temperature	-20 to 50
LCD Display	Yes
Approvals	CE

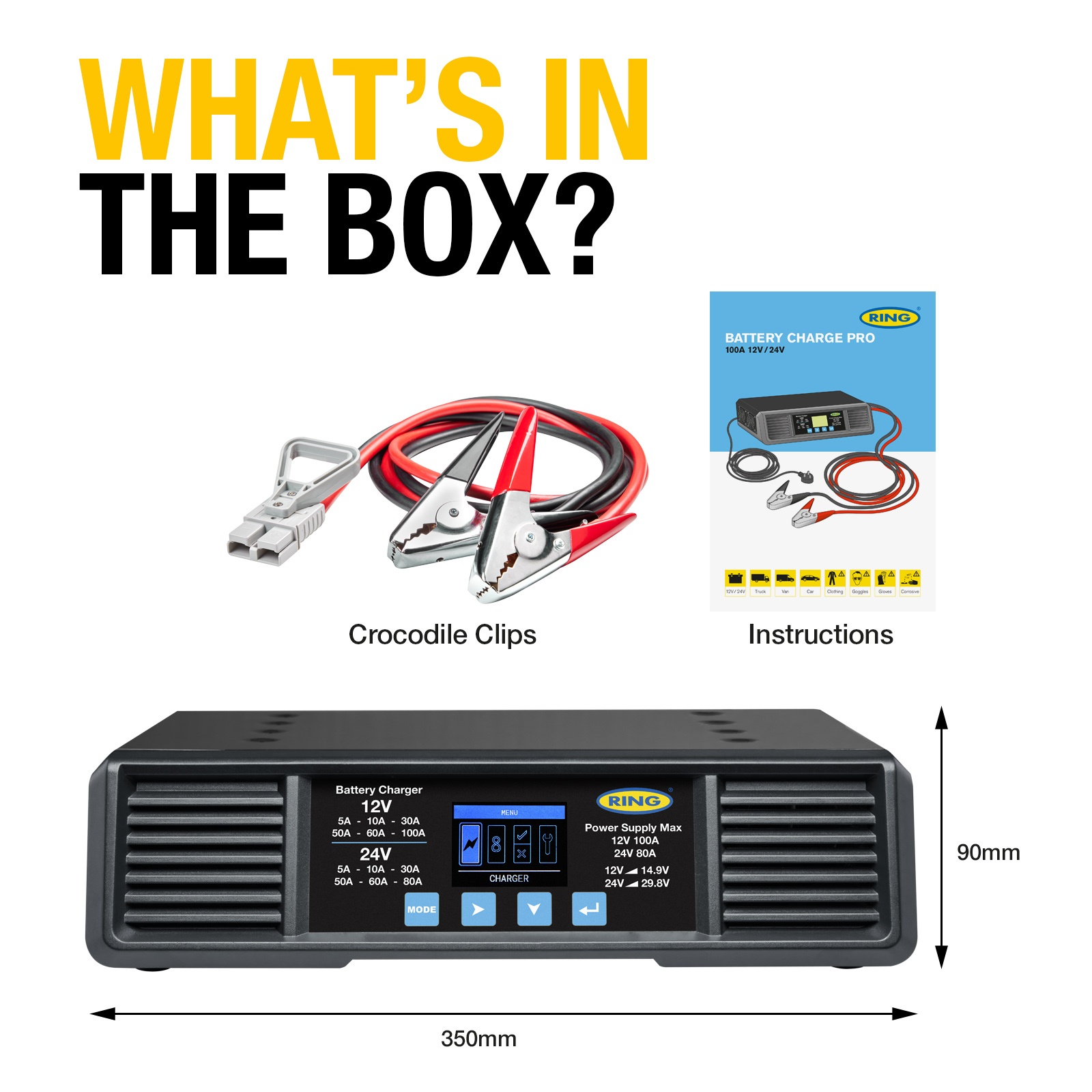

Product Dimensions (mm)	100 x 370 x 280
Weight (kg)	7.038

20A BATTERY SUPPORT

220-240V AC

6V / 12V

20A

Yes

230 x 160 x 85

1.9kg

30A SmartChargePro

220-240V AC

12/24V DC

30A

5/10/20/30A

14-300Ah

Lead Acid/Gel/Calcium EFB/AGM/LiFePO4

-20 to 50

Yes

235 x 220 x 80

2.8

50A SmartChargePro

220-240V AC

12/24V DC

50A

5/10/30/50A

14-500Ah

Lead Acid/Gel/Calcium EFB/AGM/LiFePO4

-20 to 50

Yes

102 x 370 x 247

6.048

8A SmartChargePro

230V AC

24V DC

2 / 4 / 6 / 8A

14-160Ah

Flooded/Calcium/Gel/AGM

Yes

N/A

Yes

85 x 175 x 245

2.432
