- Up to 16 intelligent outputs per module
- 150A Total output current per module
- 2x30A Maximum Rated outputs
- 14x15A Rated outputs
- Product variant provides 2 x Lowside outputs
- Short Circuit and Overload protection
- 100ms Update rate
- Dedicated resettable fuses enable safe OPM disconnections
- Output current limit configured in genisys™ software application

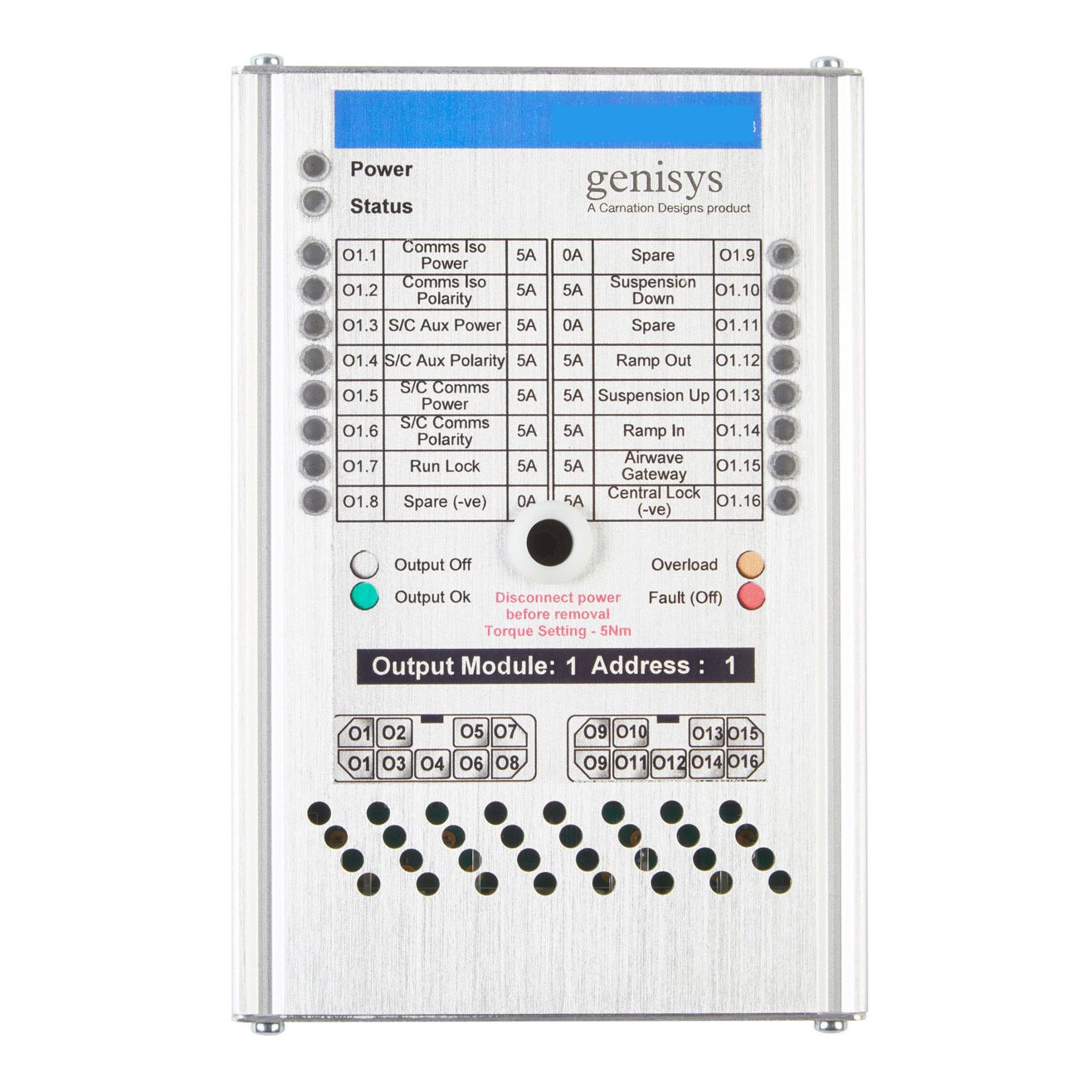

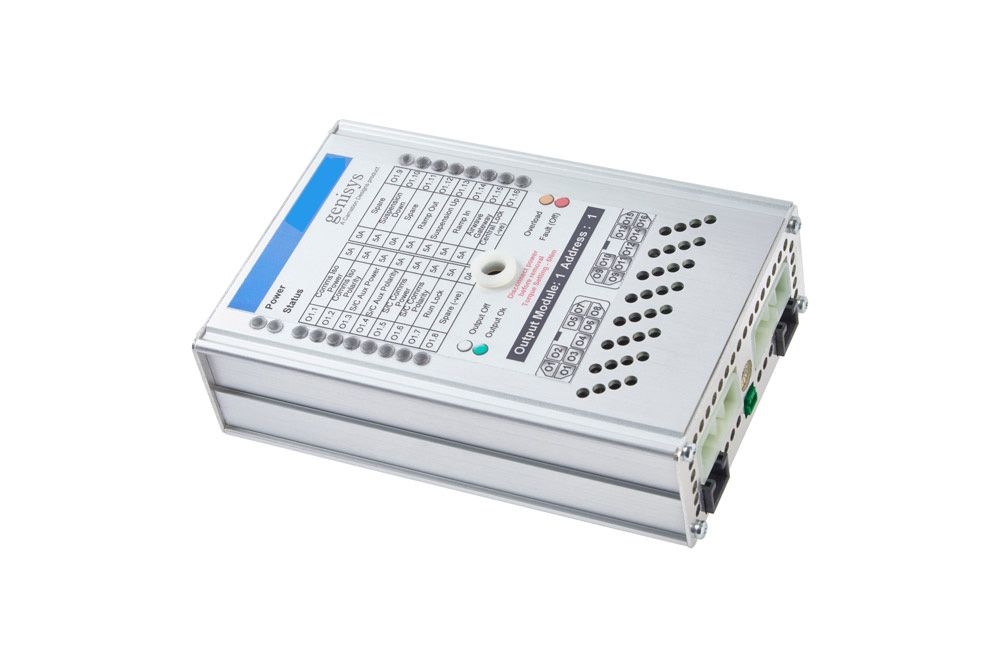

The Output Module (OPM) connects to the genisys™ modular system providing a safe, internally fused, high power output switching system.
Safety is assured by means of intelligent current monitoring, automatically disabling outputs when a fault condition occurs.
Outputs are controlled by solid state switches (MOSFET) rather than mechanical relays. These provide longer operating life, faster switching, and require very little drive current.
