RSCP3024
e-reader
Technical details

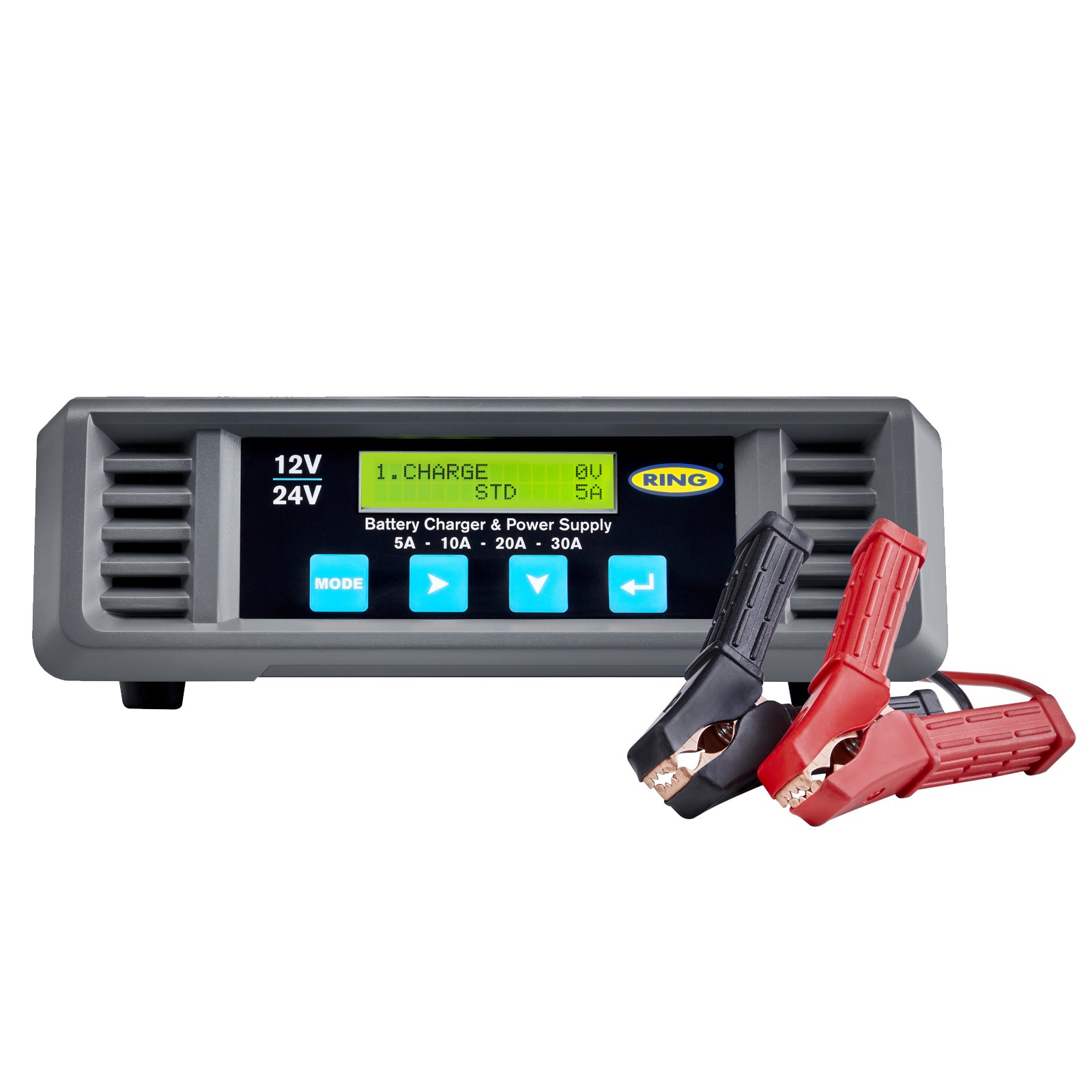

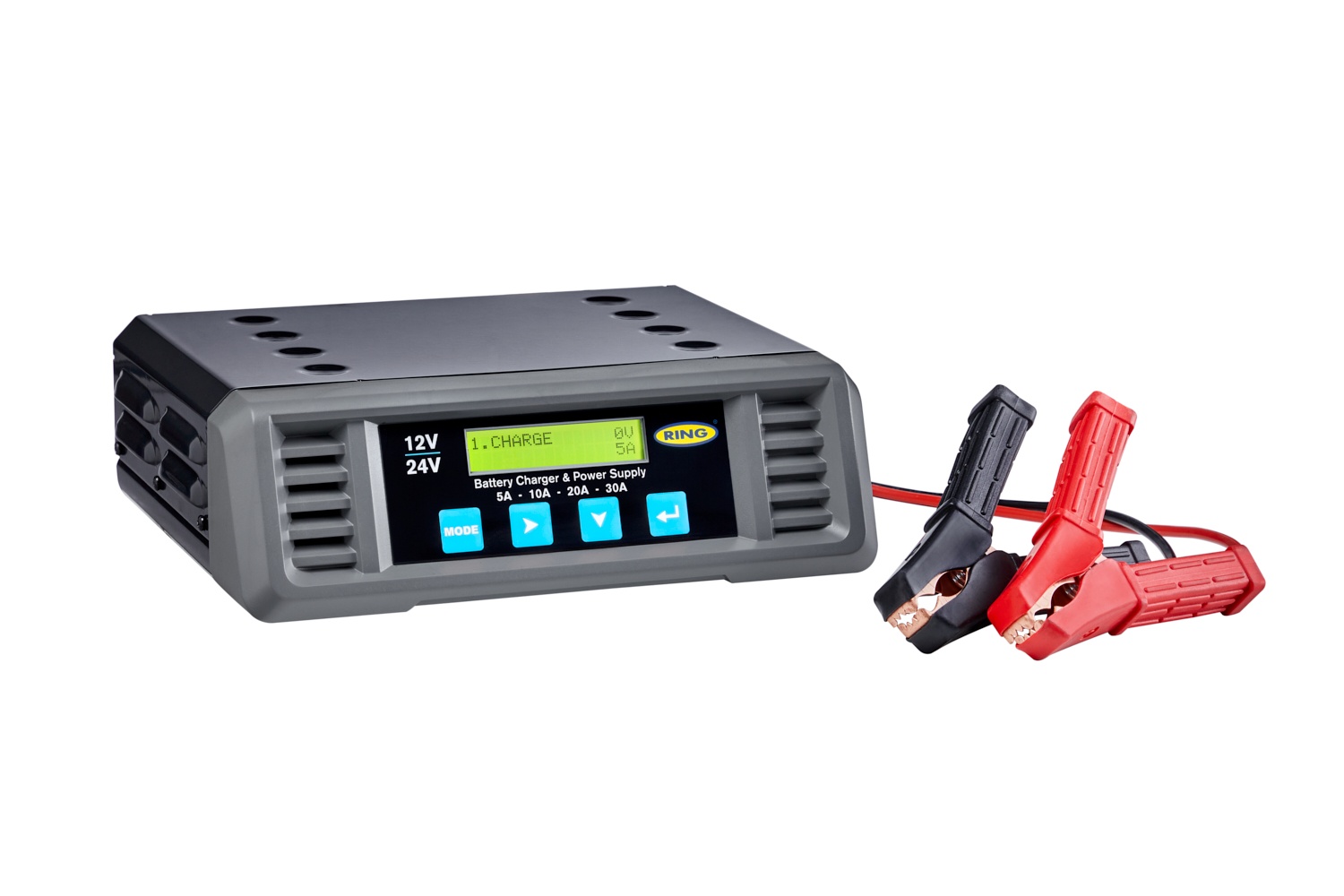

RSCP3024
30A BATTERY SUPPORT
SMARTCHARGE PRO
With Lithium Charging Mode
8-Stage lithium charging process for lithium ferrous phosphate batteries

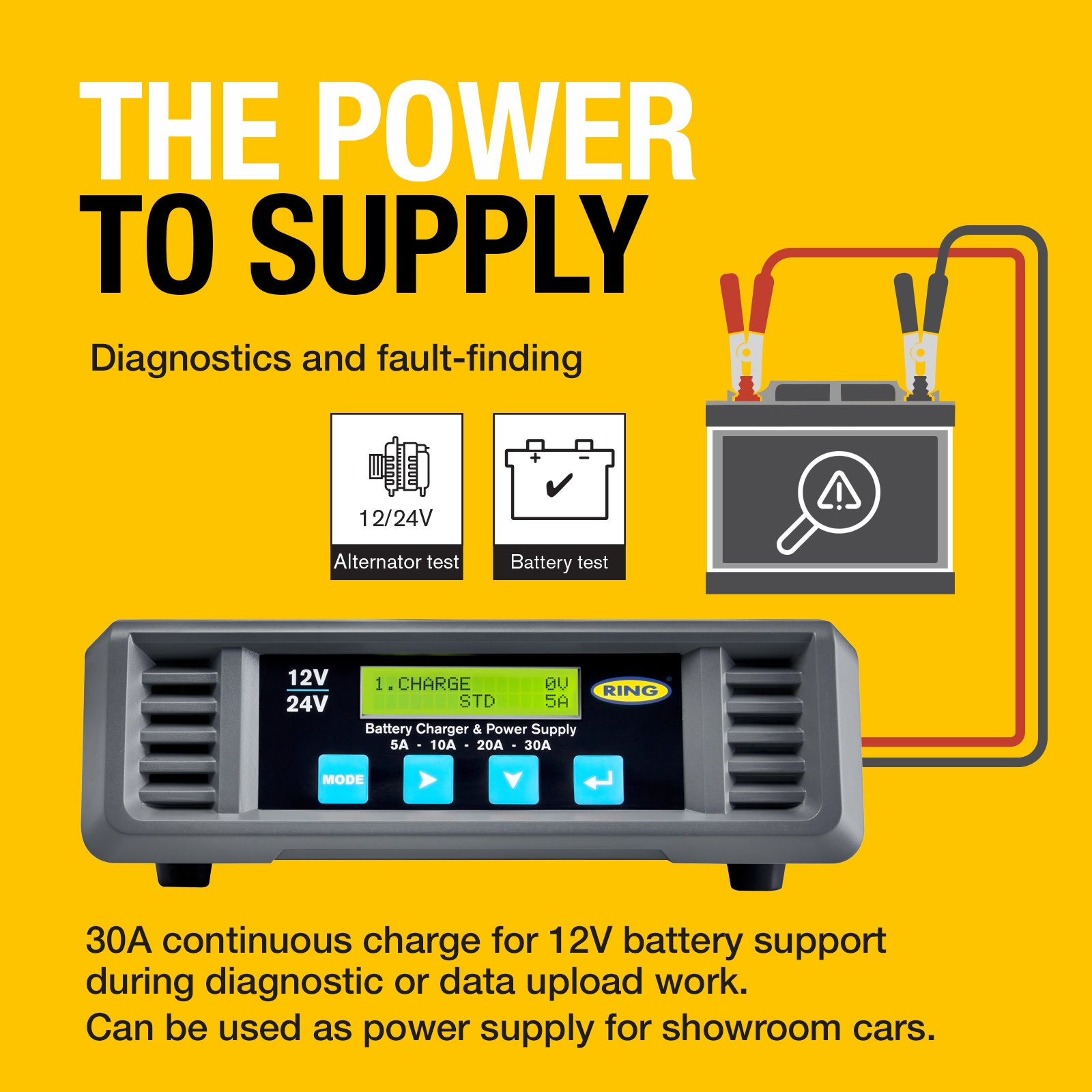

Up to 30A continuous charge for battery support power supply function
Rapid recharge in minutes
Stop/Start compatible

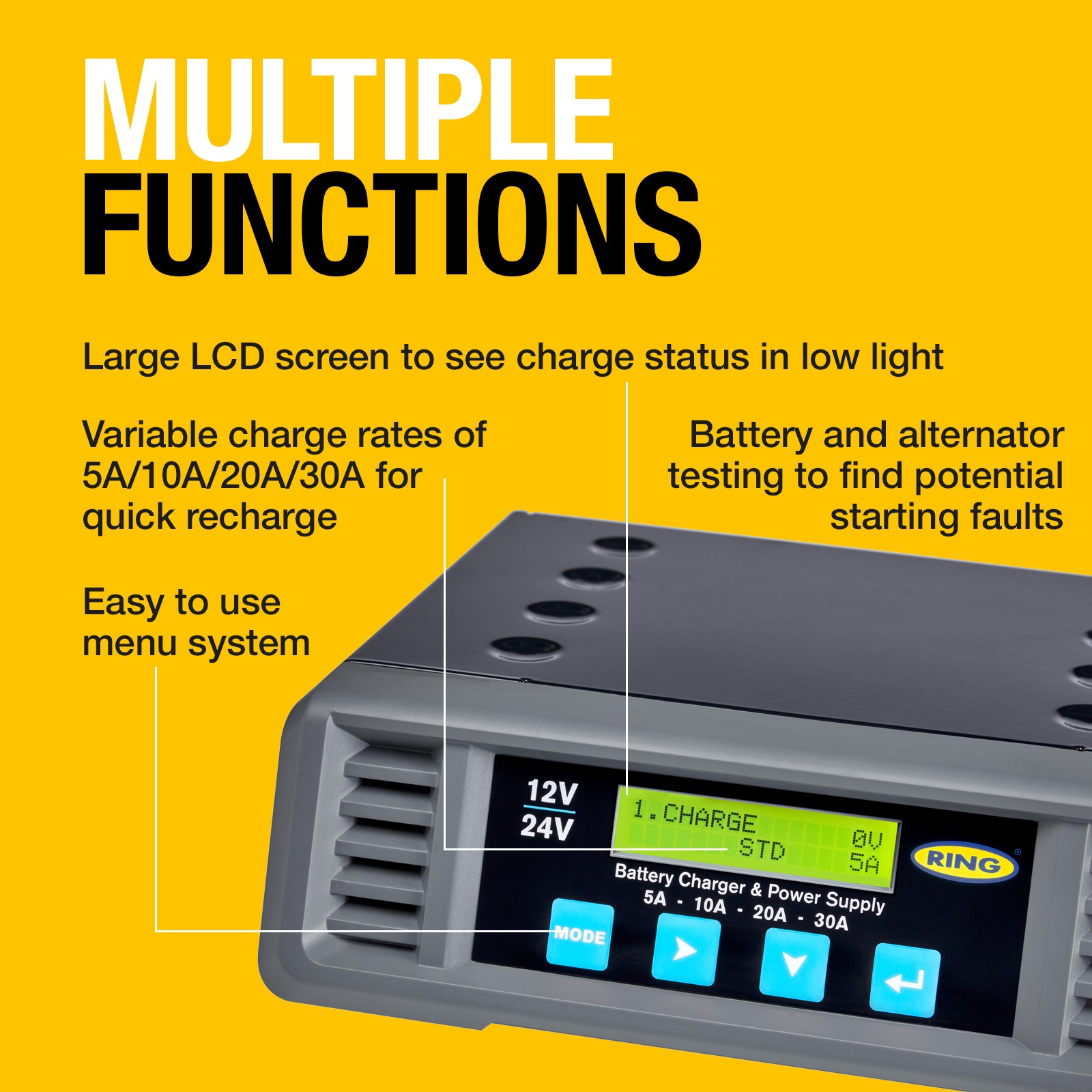

Variable charging rates 5/10/20/30A for slow or rapid recharge

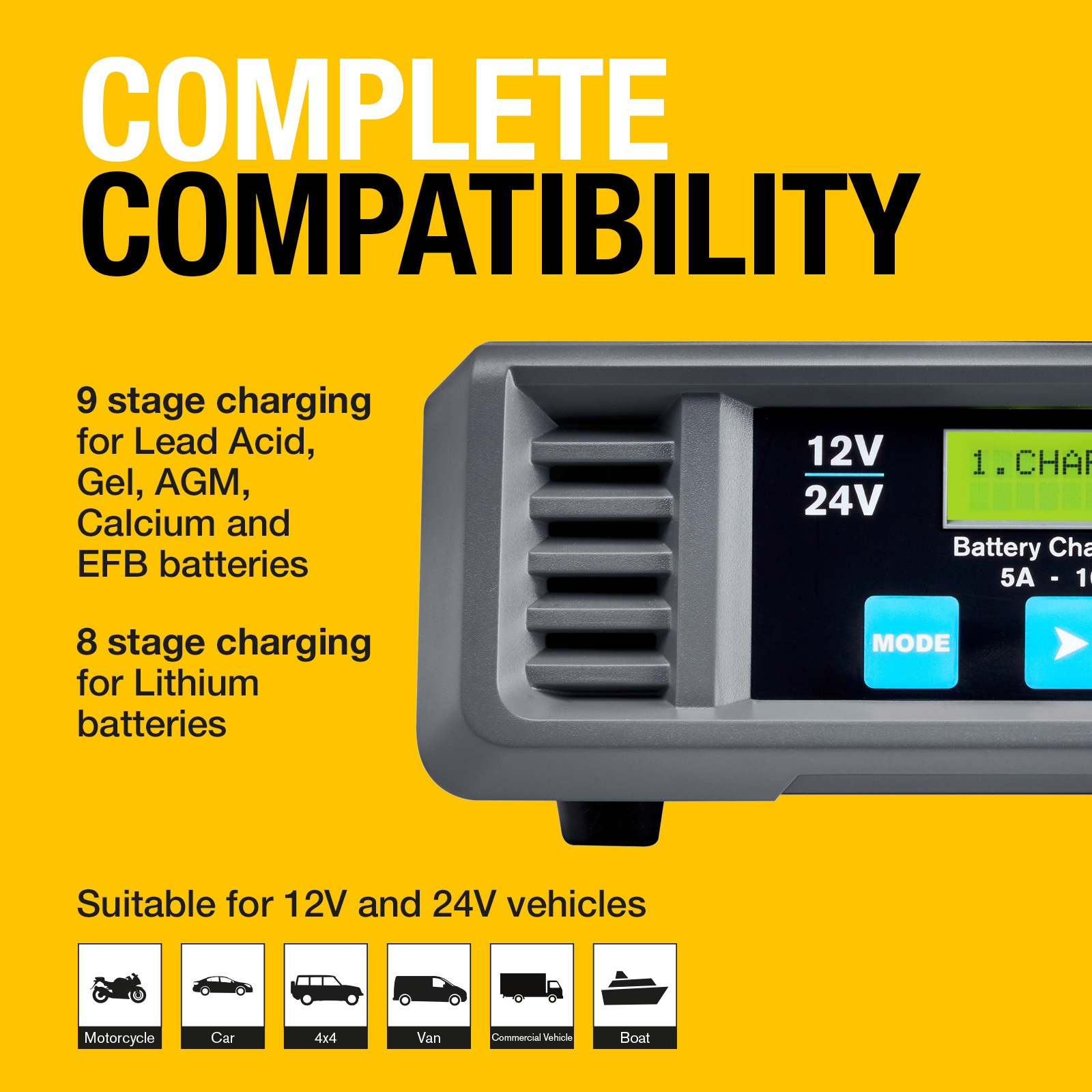

9-Stage charging process for Lead Acid/Gel/AGM/Calcium/EFB batteries
7-Stage lithium charging process for lithium ferrous phosphate batteries
Large LCD display screen to see charge status clearly in low light
Battery and alternator diagnosis to check potential starting problems and cranking ability
Pre-charge health check for your engine system
Easy to use menu system making it intuitive to use removing any hassle when working

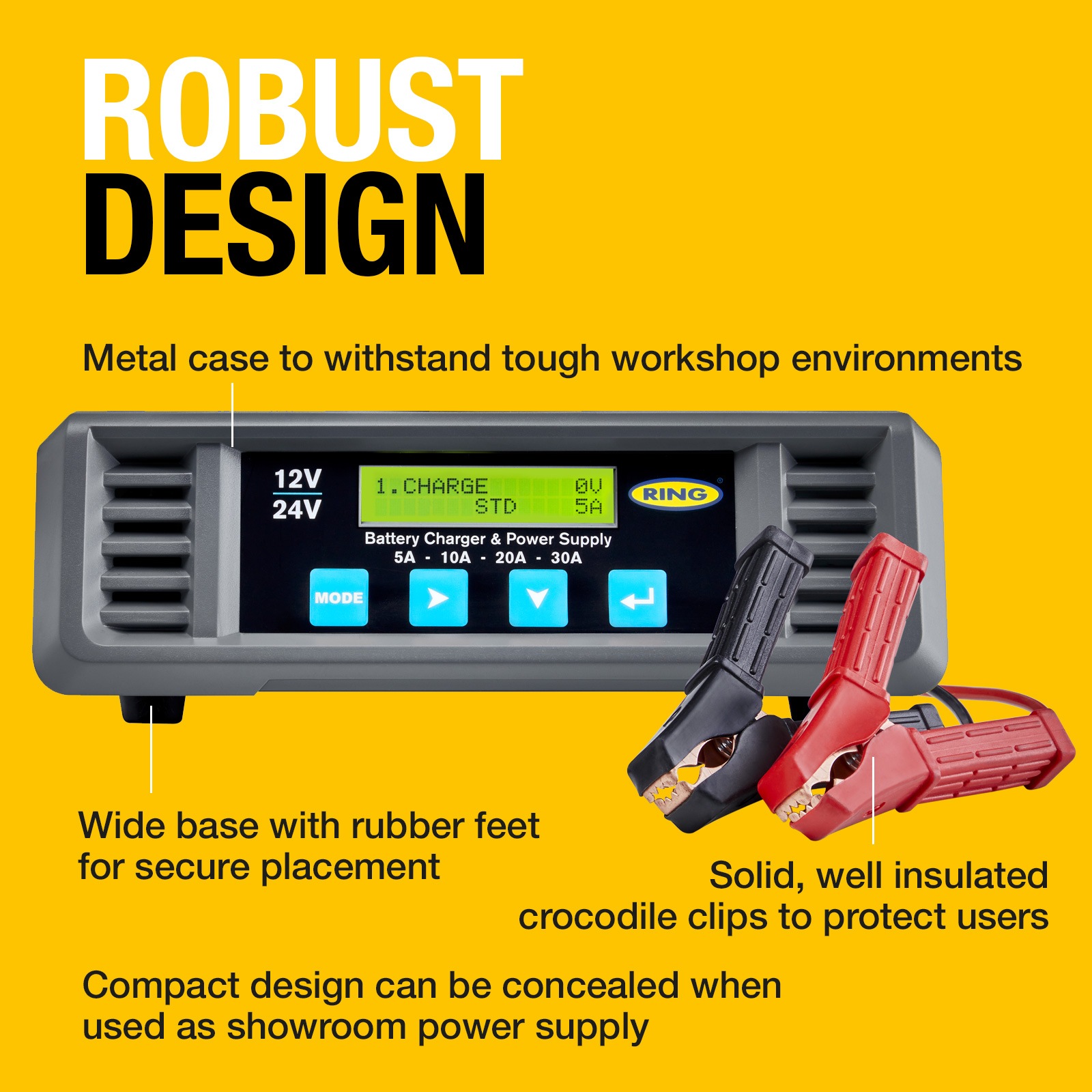

30A smart battery charger with multiple charge rate settings. A complete battery support unit suitable for 12V and 24V vehicles with mixed battery types including Lithium and START/STOP. Slimline & light ideal for intensive use with fleets of mixed vehicles in garages workshops and showroom environments.
Using the power supply function maintain a constant battery voltage level at both 12V & 24V for when appliances or programming & vehicle diagnostic equipment is connected and drawing power. Multi-chemistry and charging level selection allow the user to set the specific charge required for different battery types. Test functions provide battery and alternator diagnosis. With LCD display and an easy to navigate menu system.
Featuring smart charge technology which optimises battery performance and improves the ability to hold charge. Two dedicated charging curves seven stage for Lithium batteries and nine stage for all other chemistries optimising the battery performance and improving the ability to hold charge.
Related
Products
RSCP10024
SMARTCHARGE PRO
100A BATTERY CHARGER
For Workshop and Showroom Use
12V/24V DC
RSCP20
20A BATTERY SUPPORT SMARTCHARGE PRO
WITH JUMP STARTER FUNCTION
6V and 12V compatible

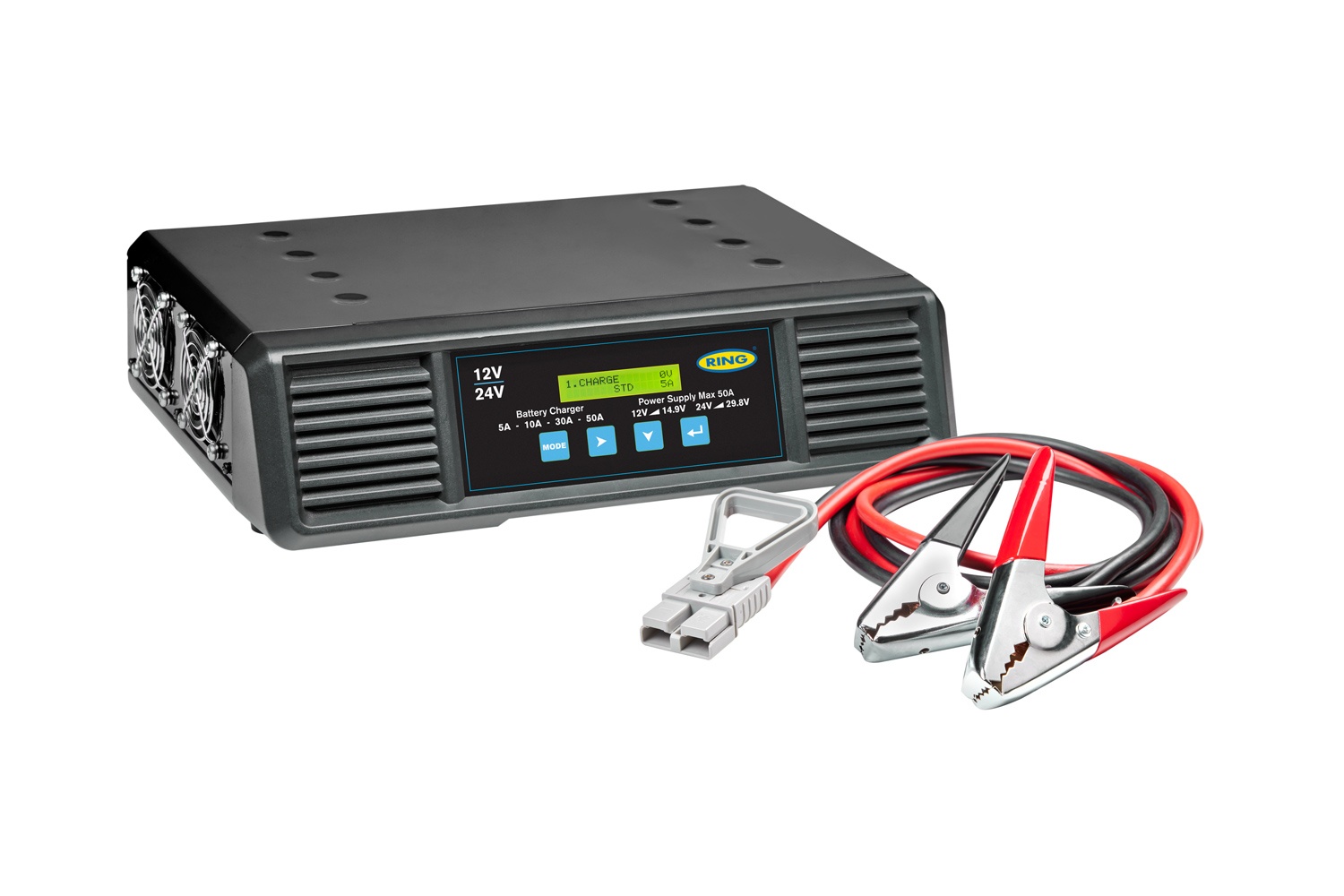

RSCP5024
SMARTCHARGE PRO
50A BATTERY CHARGER
For Workshop and Showroom Use
12V/24V DC
RSCPR824
SMARTCHARGEPRO
8A BATTERY CHARGER
LCD Display
24V DC
Spec
RSCP3024
RSCP10024
RSCP20
RSCP5024
RSCPR824
Description
30A SmartChargePro
Input Voltage
220-240V AC
Max Output Voltage
12/24V DC
Max Output Current
30A
Charge Rates
5/10/20/30A
Battery Capacity
14-300Ah
Battery Compatability
Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
Temperature Compensation
No
Operating Temperature
-20 to 50
LCD Display
Yes
Approvals
CE
Product Dimensions (mm)
235 x 220 x 80
Weight (kg)
2.8
100A SmartChargePro
220-240V AC
12/24V DC
100A
12V@ 5/10/30/50/60/100A 24V@ 5/10/30/50/60/80A
14-1000Ah
Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
No
-20 to 50
Yes
CE
100 x 370 x 280
7.038
20A BATTERY SUPPORT
220-240V AC
6V / 12V
20A
Yes
230 x 160 x 85
1.9kg
50A SmartChargePro
220-240V AC
12/24V DC
50A
5/10/30/50A
14-500Ah
Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
No
-20 to 50
Yes
CE
102 x 370 x 247
6.048
8A SmartChargePro
230V AC
24V DC
8A
2 / 4 / 6 / 8A
14-160Ah
Flooded/Calcium/Gel/AGM
Yes
N/A
Yes
CE
85 x 175 x 245
2.432
