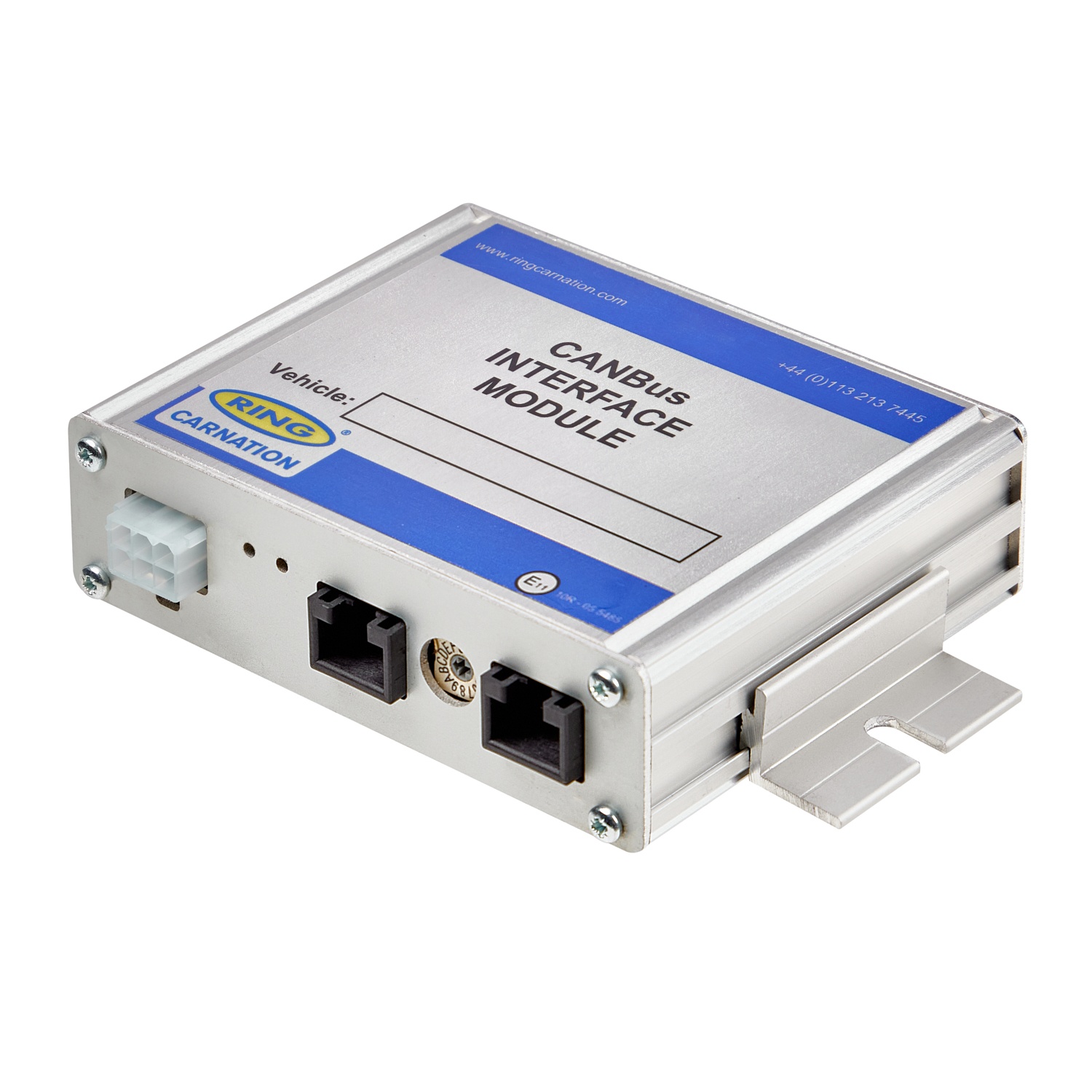

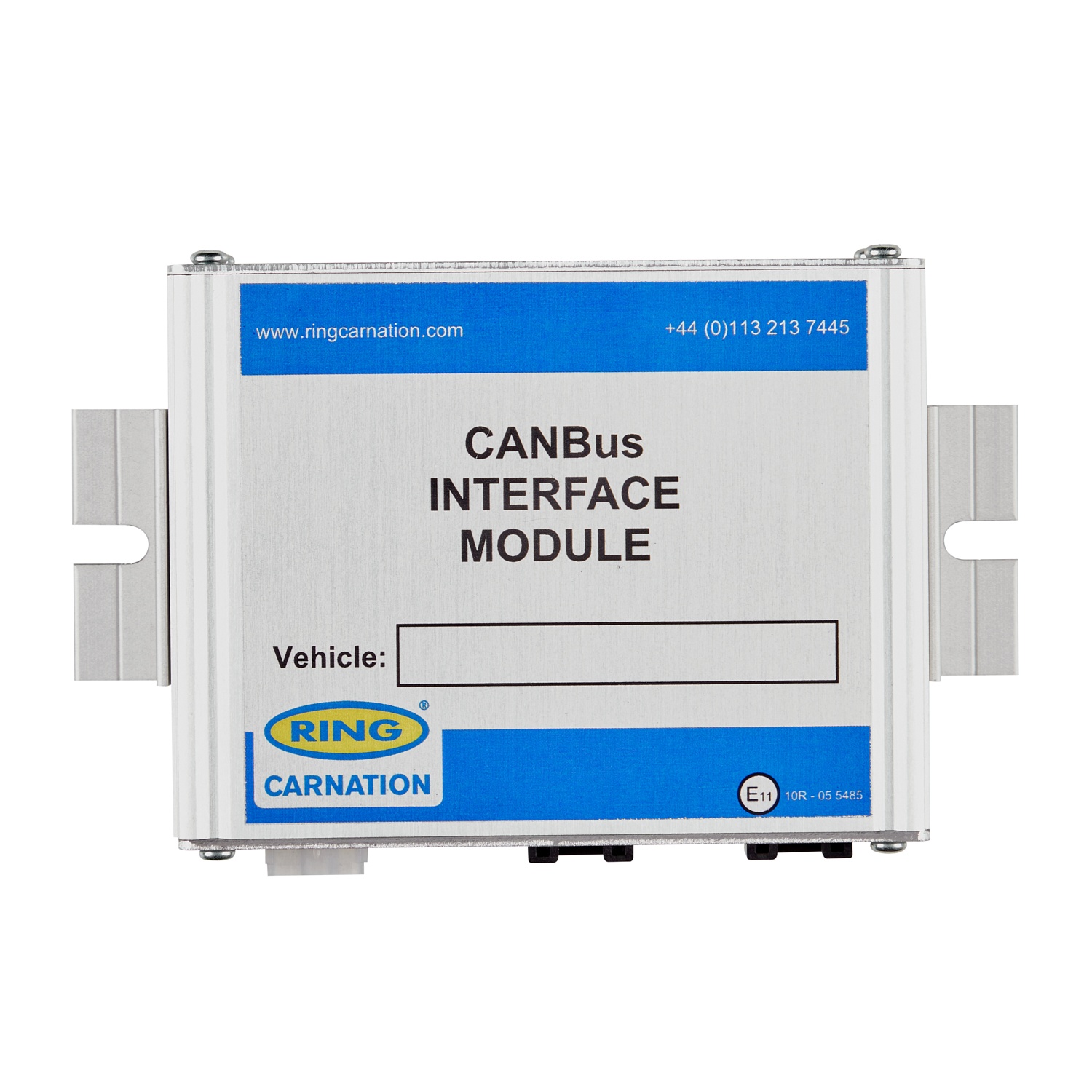

genisys™ CANBUS MODULE

A RING CARNATION PRODUCT

  • Vehicle specific with an ever-expanding library of applications
  • Integrated Runlock variants available for specialist vehicles
  • Databus communication means significantly less wiring and fewer connections

With the introduction of CANbus technology on modern vehicles, finding the necessary connections required to interact with a vehicle chassis can be extremely complicated and time consuming. Many outputs are no longer available as they are only present on the vehicles CANbus. The solution is to use a Ring Carnation CANbus interface module that will either overcome
any issues you may encounter on vehicles with multiplexed wiring or at the very least simplify installations - saving time and reducing interference with OEM wiring harnesses. The Carnation CANbus interface interprets the CANbus protocols, converts them and transmits direct to the genisys™ system using the databus.

The Ring Carnation module can provide a range of different input signals making the interface the ideal choice for a wide range of specialist vehicle applications.

The following signals are available:

• Handbrake
• Front Doors
• Side/Rear Door
• Van Rear Door/Tailgate
• Ignition
• D+ (engine running)
• Main Beam
• Dipped Beam
• Sidelights
• Reverse
• Brake Lights
• Fog Lights
• Left/Right Indicators
• 2 x Speed Triggers (programmable)
• 2 x RPM Triggers (programmable)
