RSCP20
e-reader
Technical details
RSCP20

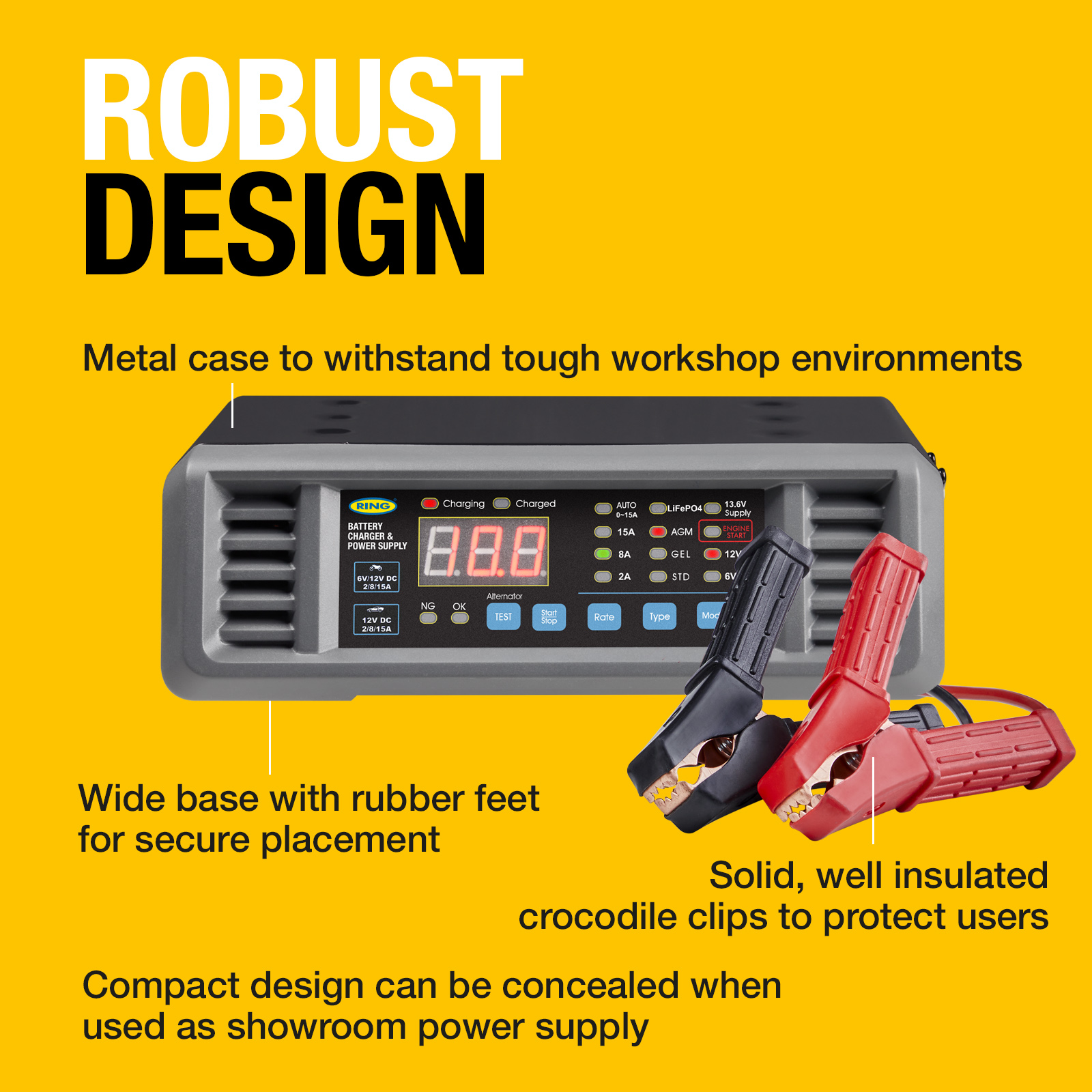

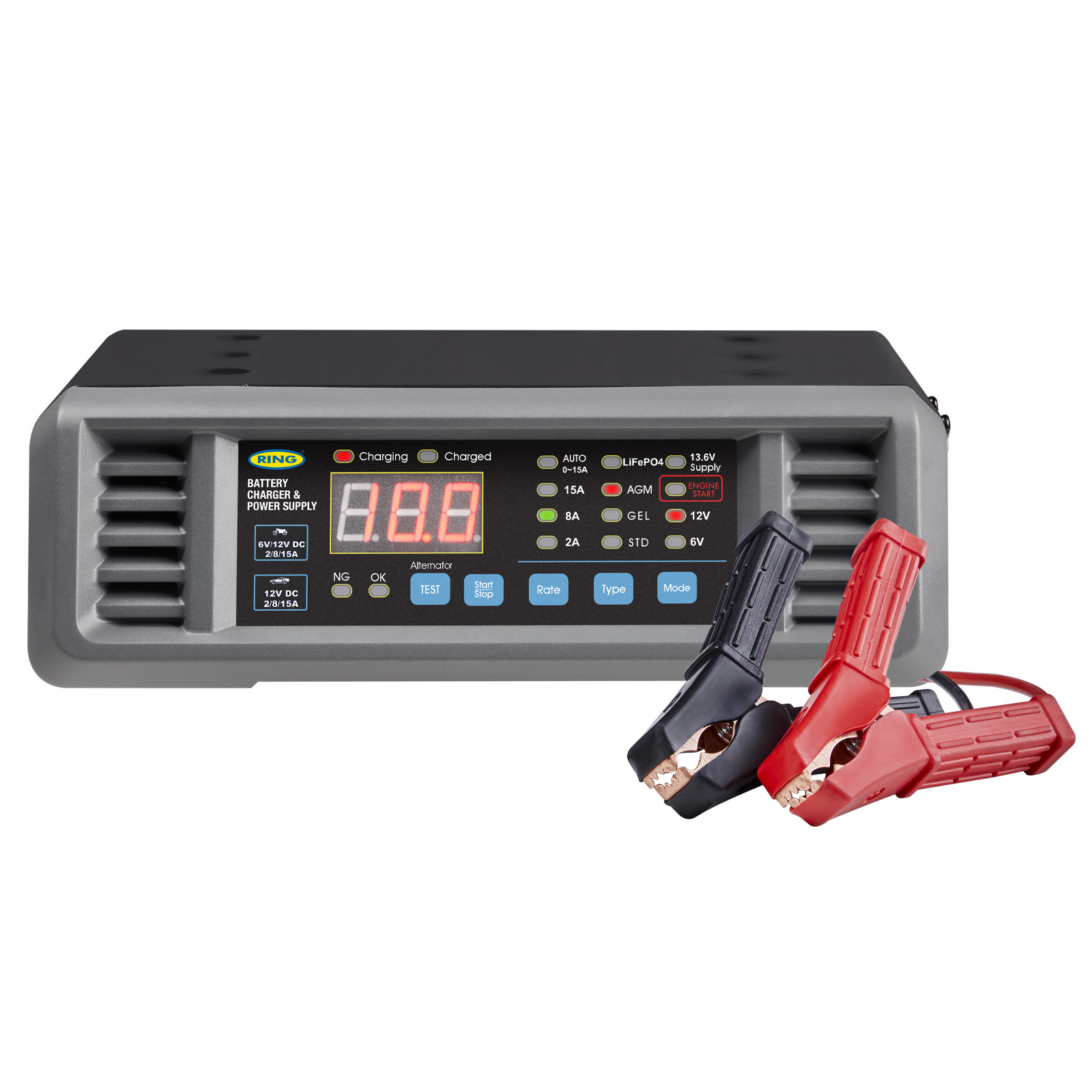

20A BATTERY SUPPORT SMARTCHARGE PRO
With Jump Starter Function
6V and 12V compatible
6V / 12V smart charger for batteries up to 225Ah Including motorcycles, cars, vans and LCVs
80A Jump start capability - Jump start any 12V vehicle instantly
Up to 20A continuous charge - For battery support power supply function

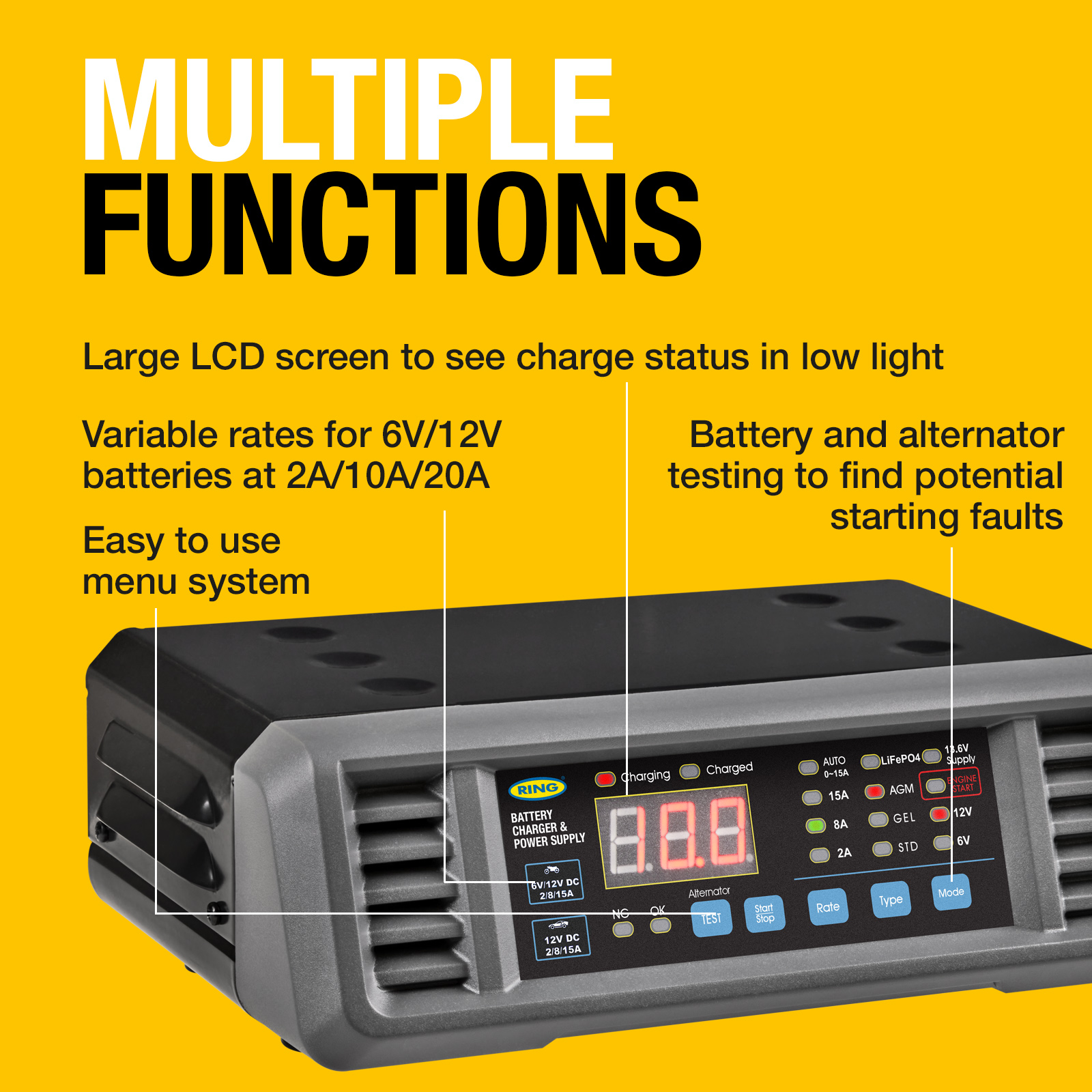

Battery and alternator testing
Rapid recharge in minutes
Stop/Start compatible
Variable charging rates 2A/10A/20A. Slow or rapid recharge can get a battery started in minutes

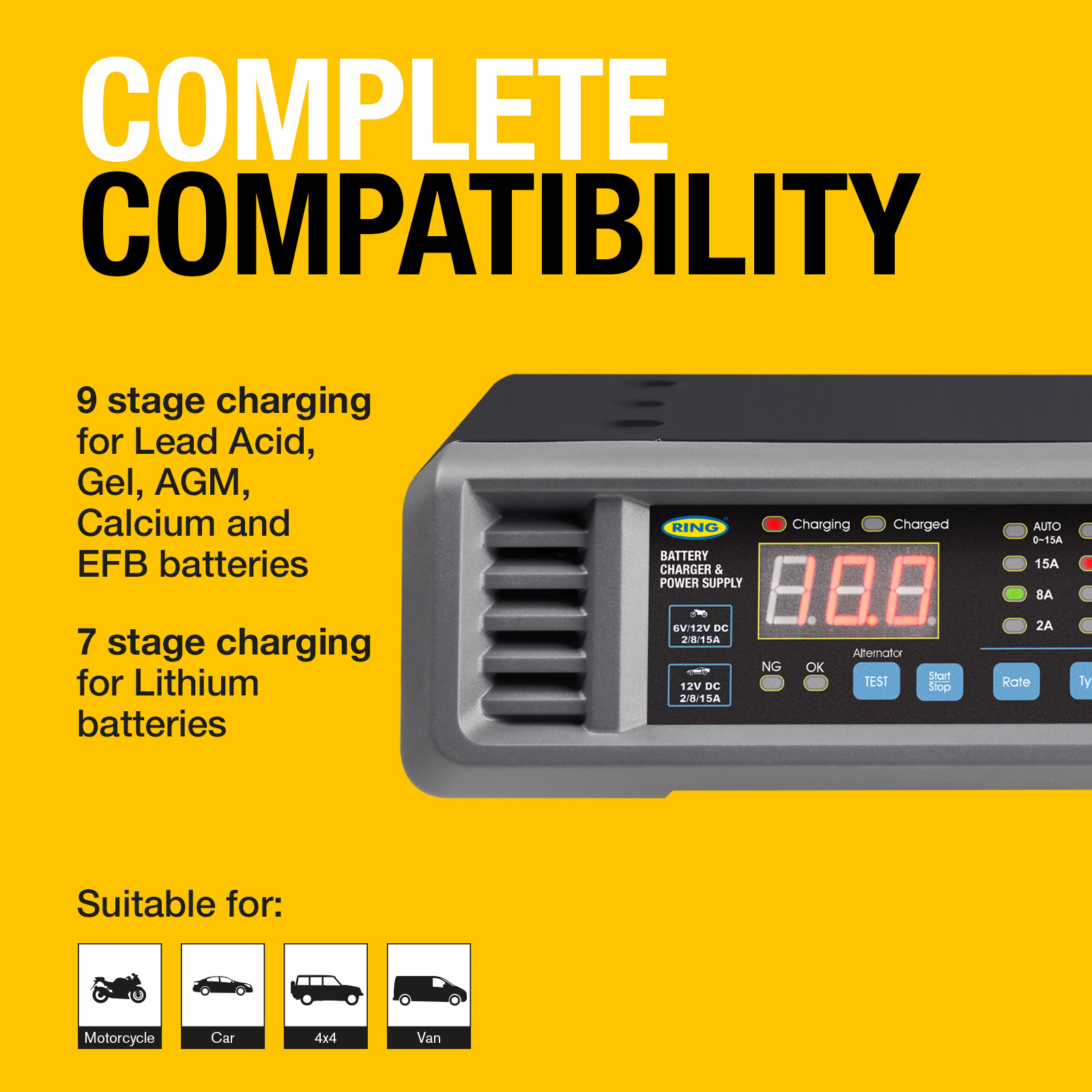

9-Stage charging process for Lead Acid/Gel/AGM/Calcium/EFB batteries
7-Stage lithium charging process for Lithium batteries
Clear, backlit LCD display screen - To see charge status clearly in low light
Optimises battery performance and the ability to hold charge
Easy to use menu system - Making it intuitive to use removing any hassle when working

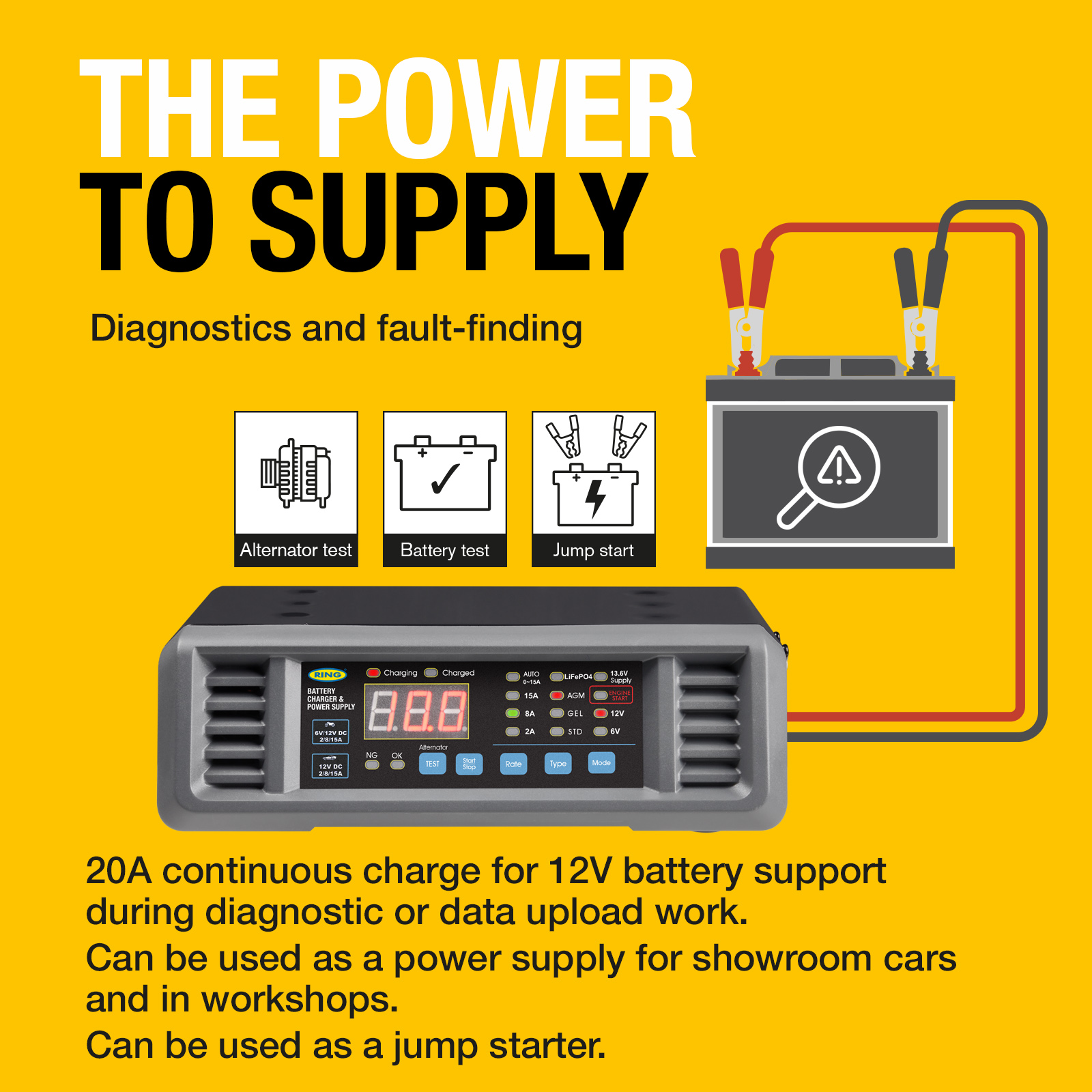

External power supply for diagnostics/showroom
The Ring 20A Battery Support Smart Charge Pro is an essential tool for any mechanic or repair shop, designed to handle 6V and 12V batteries up to 225Ah. Perfect for motorcycles, cars, vans, and LCVs, it offers a powerful 80A jump-start function to instantly revive 12V vehicles.
With up to 20A smart charging, this unit provides crucial battery support for diagnostics, showroom power, or workshop use. Its variable charging rates (2A/10A/20A) allow you to quickly recharge batteries or use a slow charge for maintenance. The 9-stage charging process works for lead acid, AGM, calcium, and EFB batteries, while the 7-stage lithium process ensures safe and efficient charging.
Related
Products
RSC904T
SMARTCHARGE 4
CHARGER & MAINTAINER
Lithium Battery Compatible
RSC906T
SMARTCHARGE 6
CHARGER & MAINTAINER
Lithium Battery Compatible
RSC908T
SMARTCHARGE 8
CHARGER & MAINTAINER
Lithium Battery Compatible
RSCP10024
SMARTCHARGE PRO
100A BATTERY CHARGER
For Workshop and Showroom Use
RSCP3024
SMARTCHARGE PRO
30A BATTERY CHARGER
With Lithium Charging Mode
RSCP5024
SMARTCHARGE PRO
50A BATTERY CHARGER
For Workshop and Showroom Use
Spec
RSCP20
RSC904T
RSC906T
RSC908T
RSCP10024
RSCP3024
RSCP5024
Description
20A BATTERY SUPPORT
Input Voltage
220-240V AC
Max Output Voltage
6V / 12V
Max Output Current
20A
Charge Rates
Battery Capacity
Battery Compatability
Temperature Compensation
Operating Temperature
LCD Display
Yes
Approvals

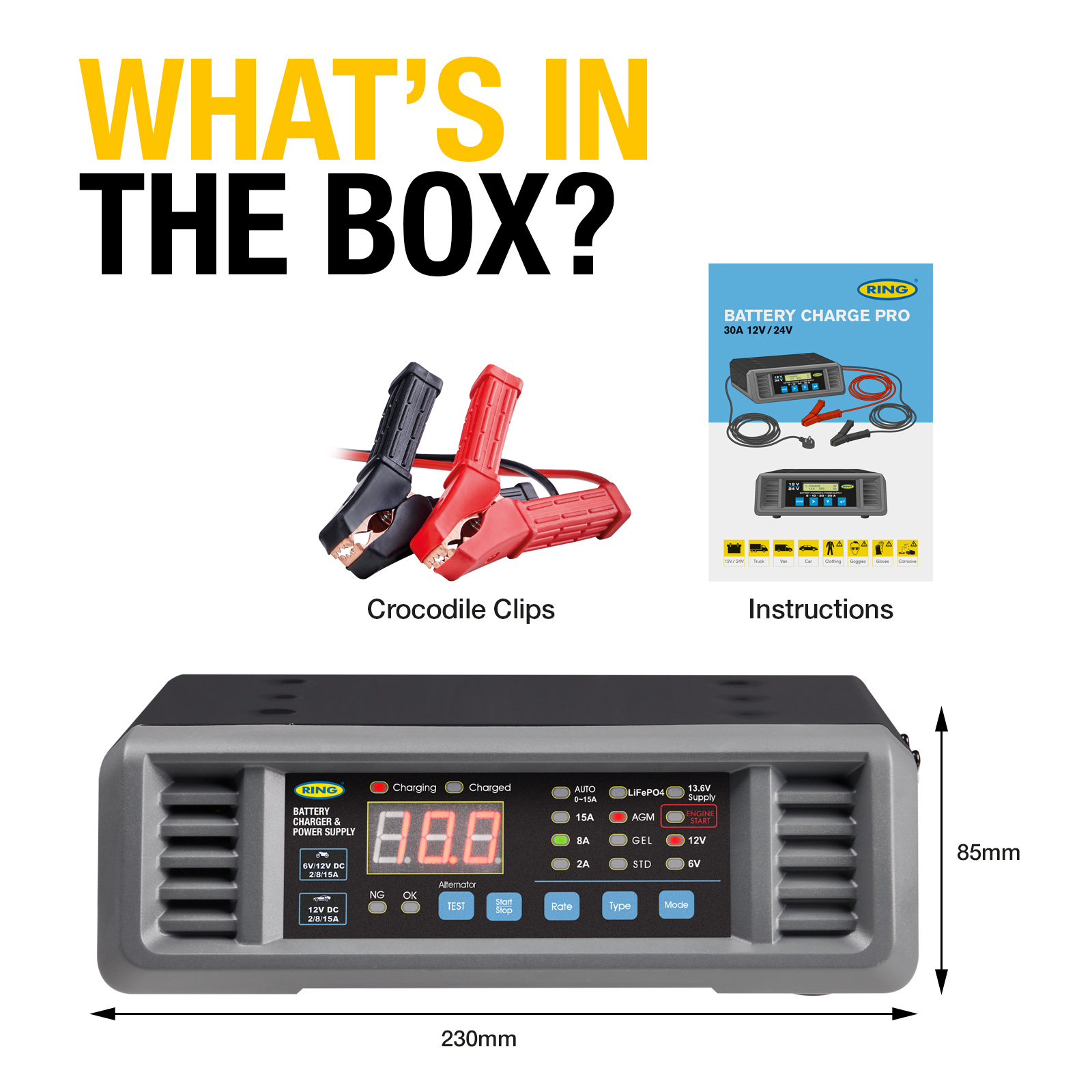

Product Dimensions (mm)
230 x 160 x 85
Weight (kg)
1.9kg
SMARTCHARGE 4A
230V
4A
Lithium Ion/ Lead Acid/Gel/Calcium/EFB/AGM
Yes
CE
144 x 85 x 51
0.562
SMARTCHARGE 6A
230V
6A
Lithium Ion/ Lead Acid/Gel/Calcium/EFB/AGM
Yes
CE
182 x 107 x 64
0.818
SMARTCHARGE 8A
230V
8A
Lithium Ion/ Lead Acid/Gel/Calcium/EFB/AGM
Yes
CE
182 x 106 x 65
0.862
100A SmartChargePro
220-240V AC
12/24V DC
100A
12V@ 5/10/30/50/60/100A 24V@ 5/10/30/50/60/80A
14-1000Ah
Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
No
-20 to 50
Yes
CE
100 x 370 x 280
7.038
30A SmartChargePro
220-240V AC
12/24V DC
30A
5/10/20/30A
14-300Ah
Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
No
-20 to 50
Yes
CE
235 x 220 x 80
2.8
50A SmartChargePro
220-240V AC
12/24V DC
50A
5/10/30/50A
14-500Ah
Lead Acid/Gel/Calcium EFB/AGM/LiFePO4
No
-20 to 50
Yes
CE
102 x 370 x 247
6.048
RSCP20
Click to download
