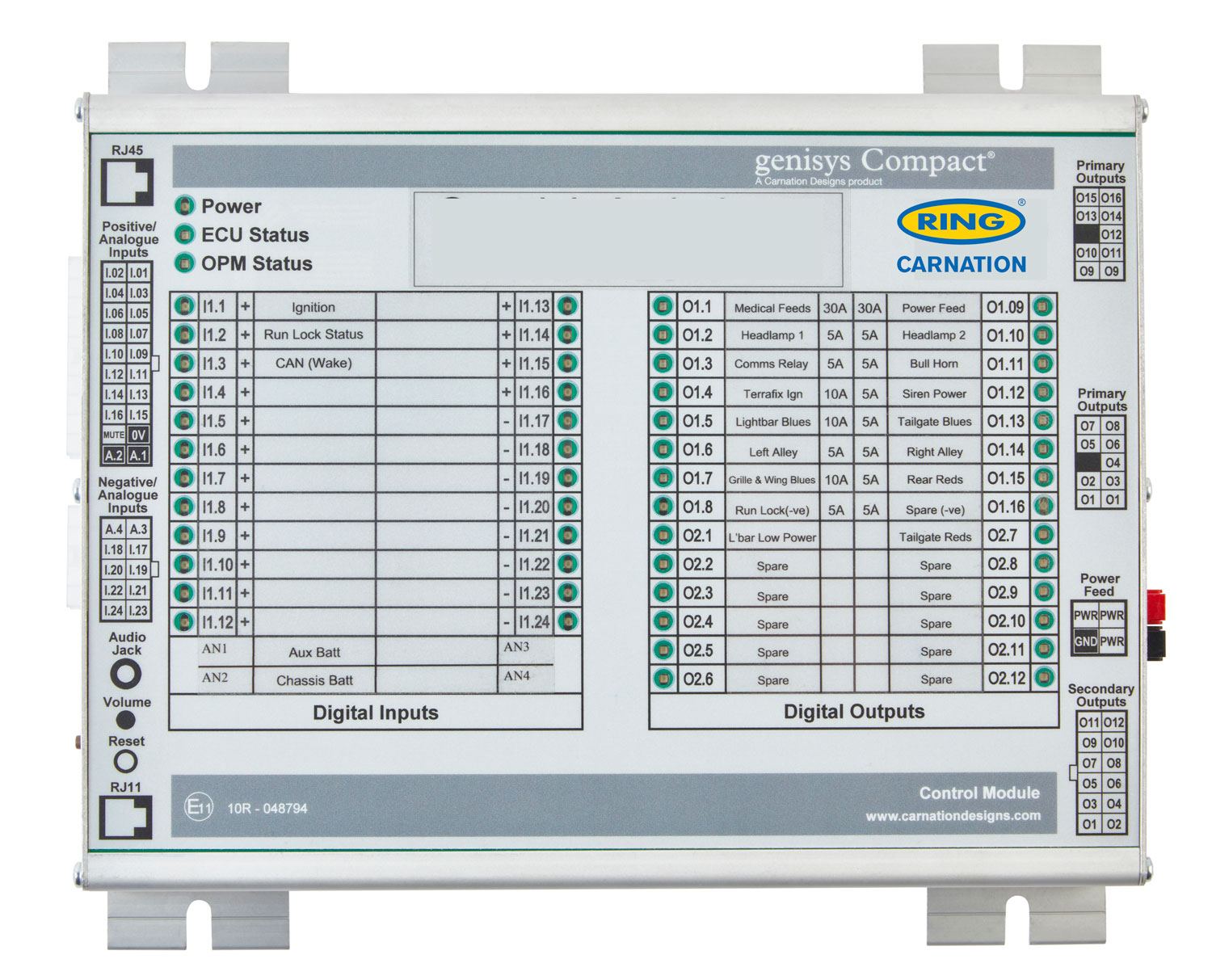

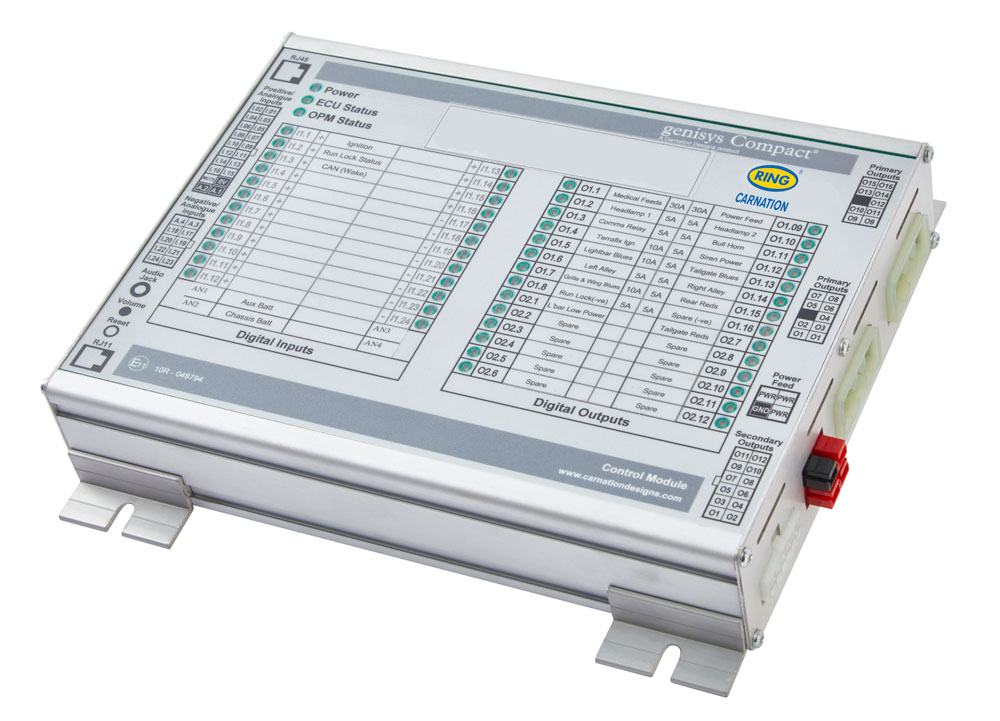

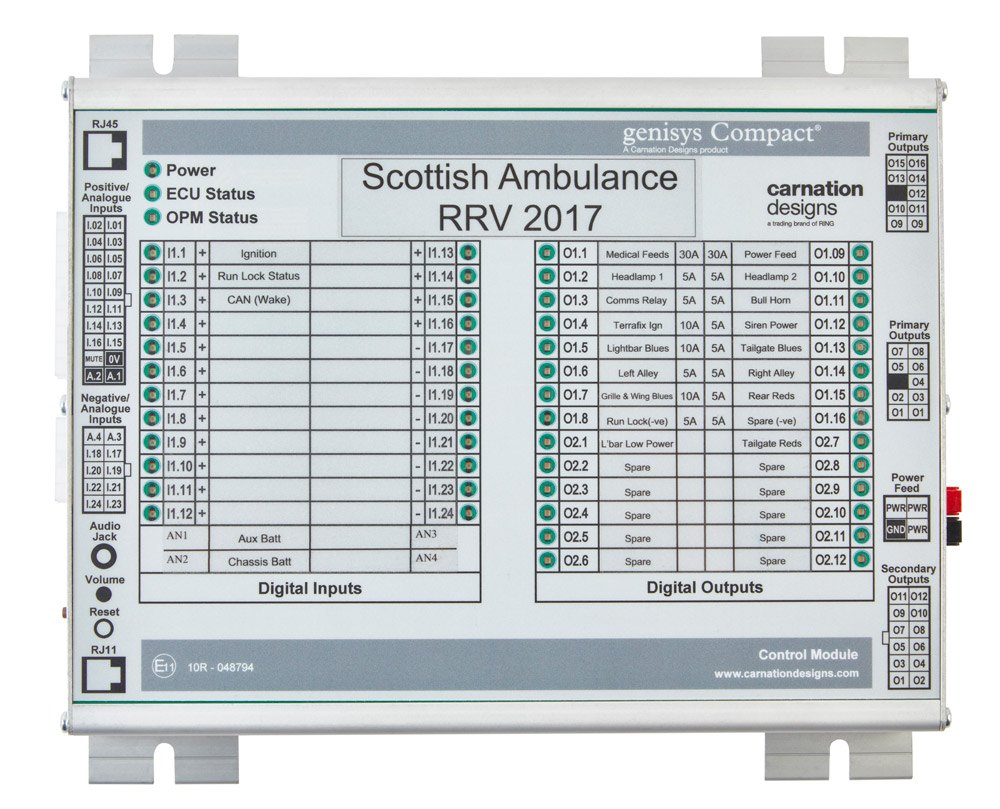

genisys™ COMPACT


  • 28 medium and high current outputs (2 x negative), 150A max
  • 24 digital inputs
  • 4 analogue inputs
  • Fully configurable for bespoke installations
  • Proven genisys power management and control capability
  • Load shedding and split charge functionality
  • Voice alert channel
  • Integration with MDT and telemetry available via the genisys Protocol Converter modu
  • EMC compatibility
  • E-marked
genisys™ Compact is the entry level power management solution – suitable for a wide range of low to medium complexity vehicles such as ambulance Rapid Response and Passenger Transport Service, Police Response cars and Welfare Vans.

This cost effective system combines proven genisys™ control technology with a slim line enclosure to optimise the space claim with no loss of function. Genisys Compact features 28 outputs and 150A operating current in a single enclosure without the need for expansion modules and relays.
Recommended Operating Supply Voltage 10-16V
Total Output Current 150A
No. of Outputs 14 Positive (High Current), 12 Positive (Medium Current), 2 Negative (Medium Current)
Current Rating (per Output) 2 x 30A, 12 x 15A, 12 x 3A, 2 x 5A (negative)
Digital Inputs 24 (16 Positive and 8 Negative)
Analogue Inputs 4 Configurable
CAN Data Input Available as separate module
Audio Warnings Single Audio Channel 3.5mm socket
Dimensions 234W x 50H x 175D
Module Compatibility genisys keyboards, CAN & Protocol Converter
Configuration Maintains Genisys128 software usage
Power consumption unit only: In Operation <200mA
Power consumption unit only: Sleep Mode <30mA
Branding / Customer configuration Pre-printed I/O Configuration
General automotive CE 72/245/EEC (2009/19/EC)
FCC Complies with FCC regulations
e-Mark VCA approvals
Operating/Storage Temperature -20 to 50ºC ambient
Ingress Protection IP20
