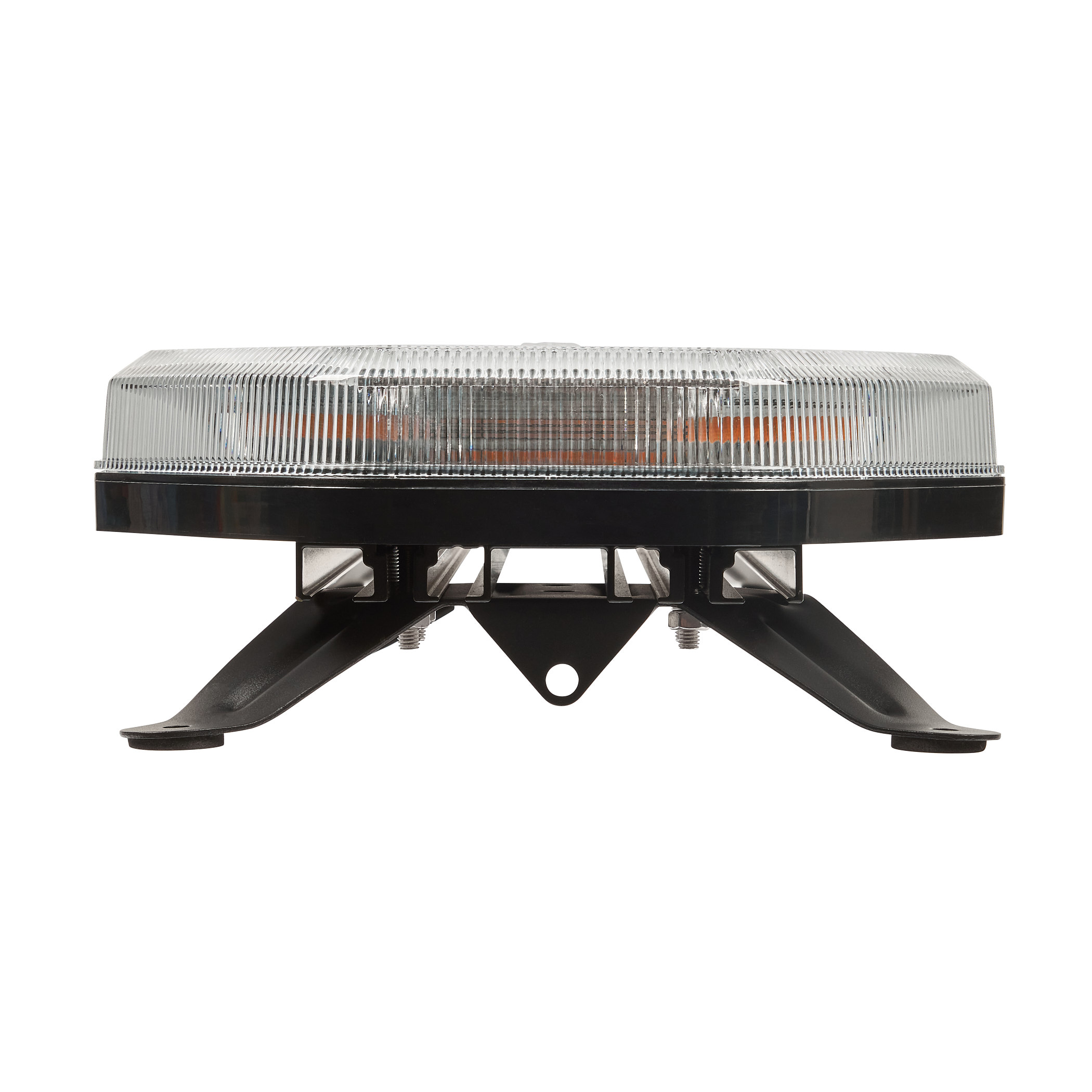

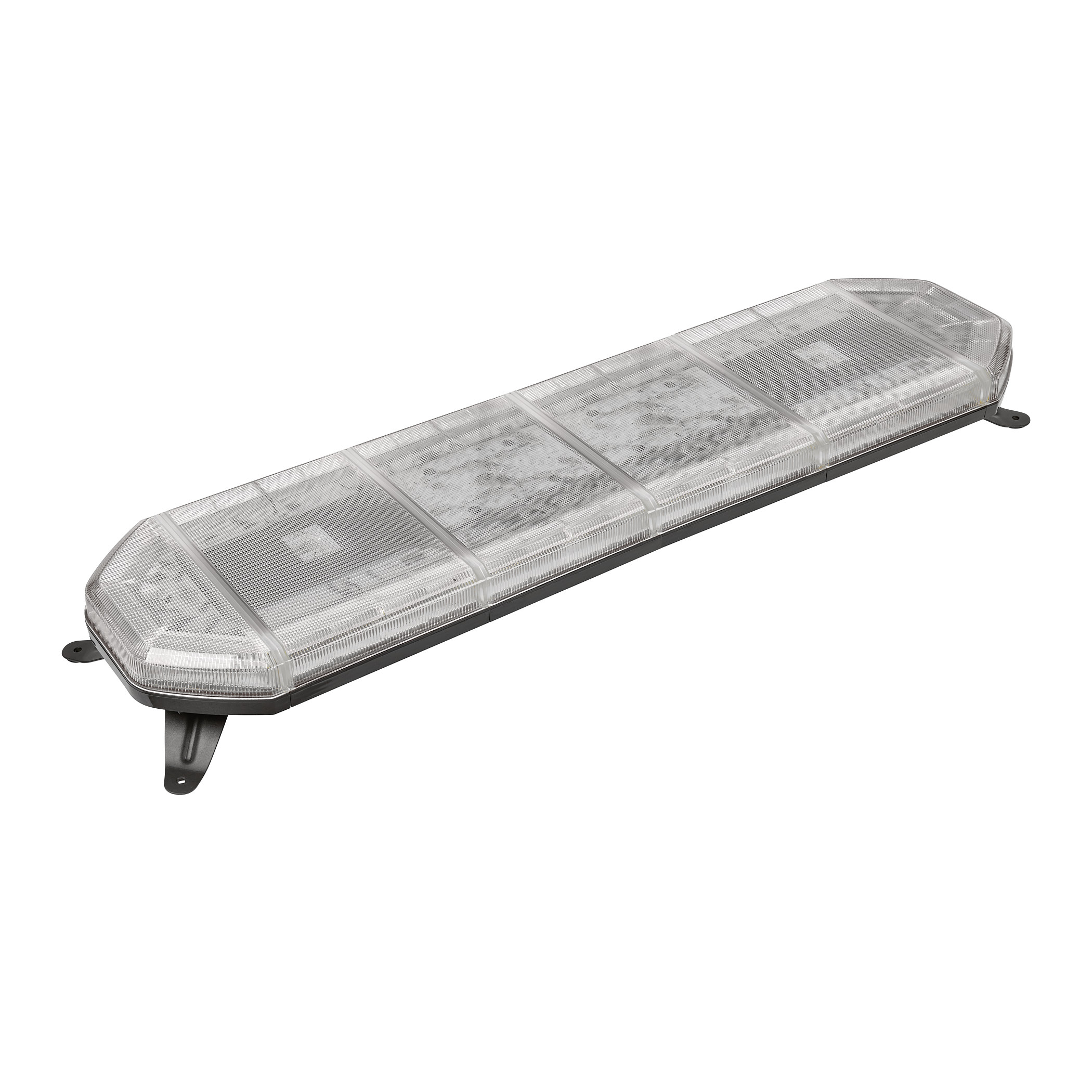

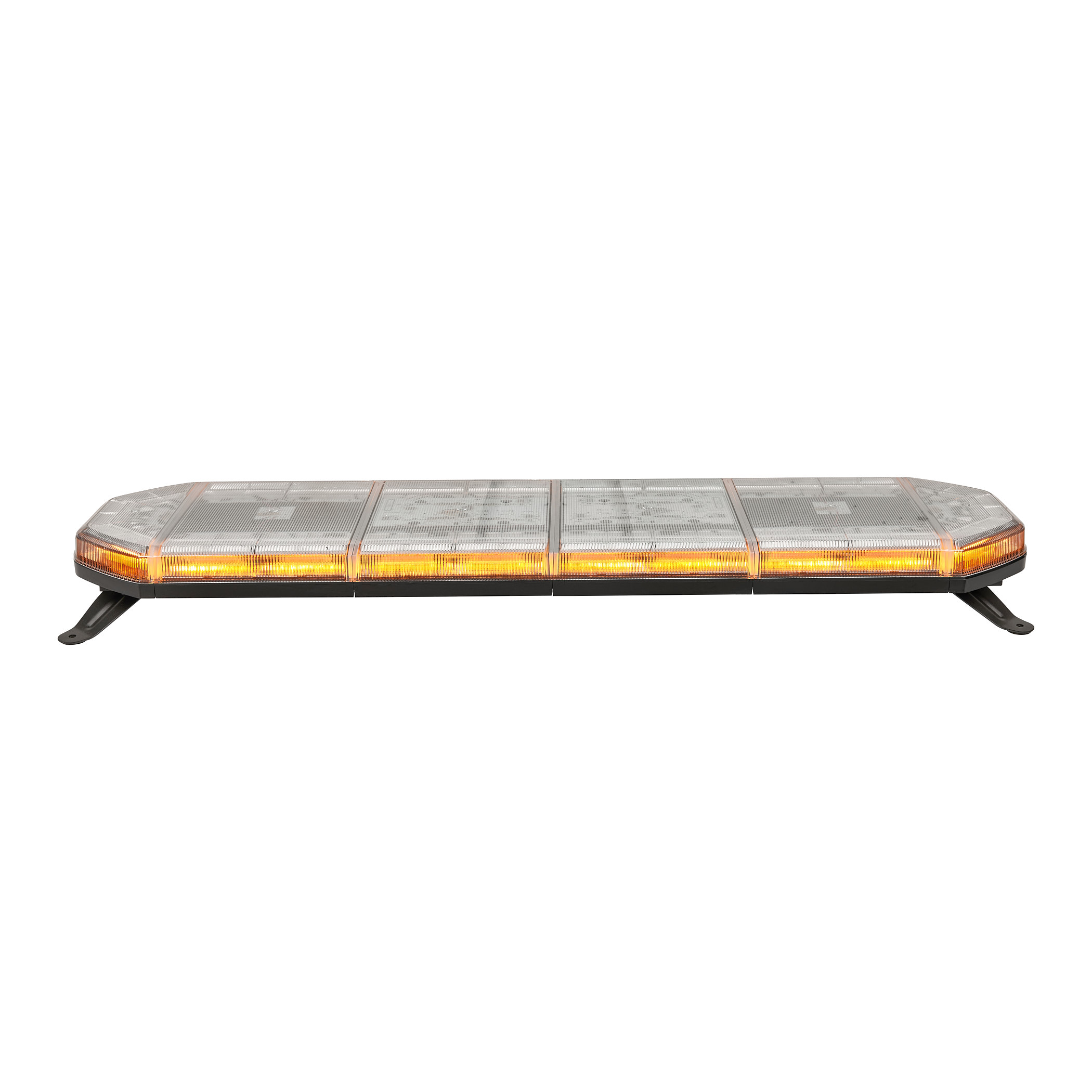

| RCV9834

Technical details

RCV9834

12/24V AMBER

LED WARNING

1148mm LIGHTBAR BRACKET/BOLT MOUNT

12/24V Voltage
Reg 10 Approved
Reg 65 Approved
10 x Flash Patterns
IP69K Waterproof

The RCV9834 AMBER LED warning lightbar is 1148mm long with 500mm cable. The bar comes with mounting brackets and all fixings. It is ECE Reg65 Class 2 approved with 10 user selectable flash patterns. In addition it is ECE Reg10 approved.

Ideal for commercial use it is compatible with 12V or 24V vehicles. Designed to be dust and waterproof, this lightbar is made from resilient ABS and polycarbonate.

Flash patterns:
1. Single flash (Night)
2. Single flash (Day)
3. Double flash (Day)
4. Double flash (Night)
5. Single flash
6. Split single flash
7. Split triple flash
8. Middle triple flash two side triple flash
9. Middle triple flash + two side triple flash + triple flash
10.Cruise

Related Products

RCV9761

MINI AMBER LED
345mm LIGHT BAR

RCV9762

AMBER LED
717mm LIGHT BAR

RCV9763

AMBER LED
877mm LIGHT BAR

RCV9764

AMBER LED
1197mm LIGHT BAR

RCV9812

AMBER LED
388mm LIGHT BAR

RCV9813

AMBER LED
388mm LIGHT BAR

RCV9819

AMBER LED
694mm LIGHT BAR

RCV9820

AMBER LED
922mm LIGHT BAR

RCV9822

MINI AMBER LED
251mm LED AMBER

RCV9823

MINI AMBER LED
251mm LED AMBER

RCV9824

AMBER LED
1400mm LIGHT BAR

RCV9826

STOP TAIL INDICATORS AMBER LED
1148mm LIGHT BAR

Spec	RCV9834	RCV9761	RCV9762	RCV9763	RCV9764	RCV9812	RCV9813	RCV9819	RCV9820	RCV9822	RCV9823	RCV9824	RCV9826
Description	1148mm AMBER LIGHT BOLT MOUNT
Voltage	12/24V
Wattage	Average: 75W
Amps	13.5V: 4.6~6.23A 28V: 2.1~2.84A
Light Source	164 x 1W LED
Flash Patterns	10
Mounting	BOLT MOUNT
Cable Length	2500mm
Bracket	-
Housing Material	Polycarbonate
Lens Material	Polycarbonate
Approvals	ECE R65 Class 2, ECE R10, CISPR25 Class 3, IP69K
IP Rating	IP69K
Product Dimensions (mm)	60 x 1145 x 305
Weight (kg)	8.786

Mini LED Amber Light Bar

10-30V

20W

1.7A @12V, 0.85A @ 24V

40 x 1W LED

Bolt mount

500mm

optional - RCV9761BR

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

58 x 343 x 197

1.424

LED Amber Light Bar

10-30V

80W

6.7A

80 x 1W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

70 x 722 x 315

4.008

Amber LED 877mm Light Bar

96W

8A Current draw

96 x 1 W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

40 x 877 x 265

6.036

LED Amber Light Bar

10-30V

128W

10.7A

128 x 1W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

45 x 1196 x 265

8.136

LED Amber Light Bar

12/24V DC

39W

3.3A

56 x 0.5W LED

Magnetic mount

2500mm

n/a

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

79 x 388 x 222

2.396

LED Amber Light Bar

12/24V DC

39W

3.3A

56 x 0.5W LED

Bolt mount

250mm

optional - RCV9813RBR

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

90 x 388 x 222

2.364

LED Amber Light Bar

12/24V DC

79W

6.6A

100 x 0.5W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

121 x 694 x 305

6.436

LED Amber Light Bar

12/24V DC

109W

9.1A

132 x 0.5W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

121 x 922 x 305

7.838

Mini LED Amber Light Bar

10-30V

20W

1.7a

40 x 0.5W LED

Magnetic mount

2500mm

n/a

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

47 x 251 x 169

1.124

Mini LED Amber Light Bar

10-30V

20W

1.7A

40 x 0.5W LED

Bolt mount

250mm

n/a

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

55 x 251 x 169

1.036

LED Amber Light Bar

10-30V

140W

11.7A

196 x 0.5W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

70 x 1373 x 33

12.432

Stop/Tail/Ind LED Amber Light Bar

10-30V

111W

9.25A

LED

Bolt mount

500mm

brackets & mount kit included

ABS

Polycarbonate

Reg 6 / Reg 7 / Reg 10 / Reg 65

IP67

75 x 1147 x 306

10.488
