RCV9761
e-reader
Technical details
RCV9761
MINI AMBER LED
345mm LIGHT BAR
Single Bolt

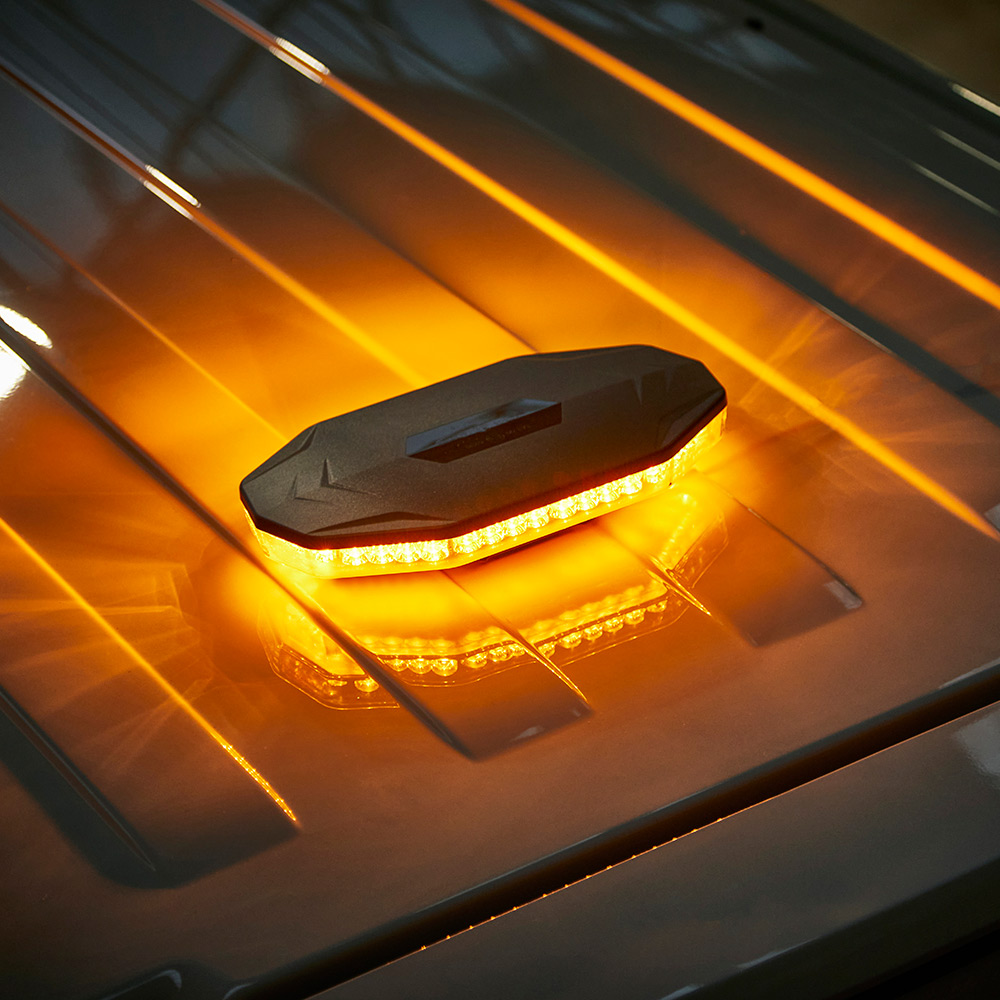

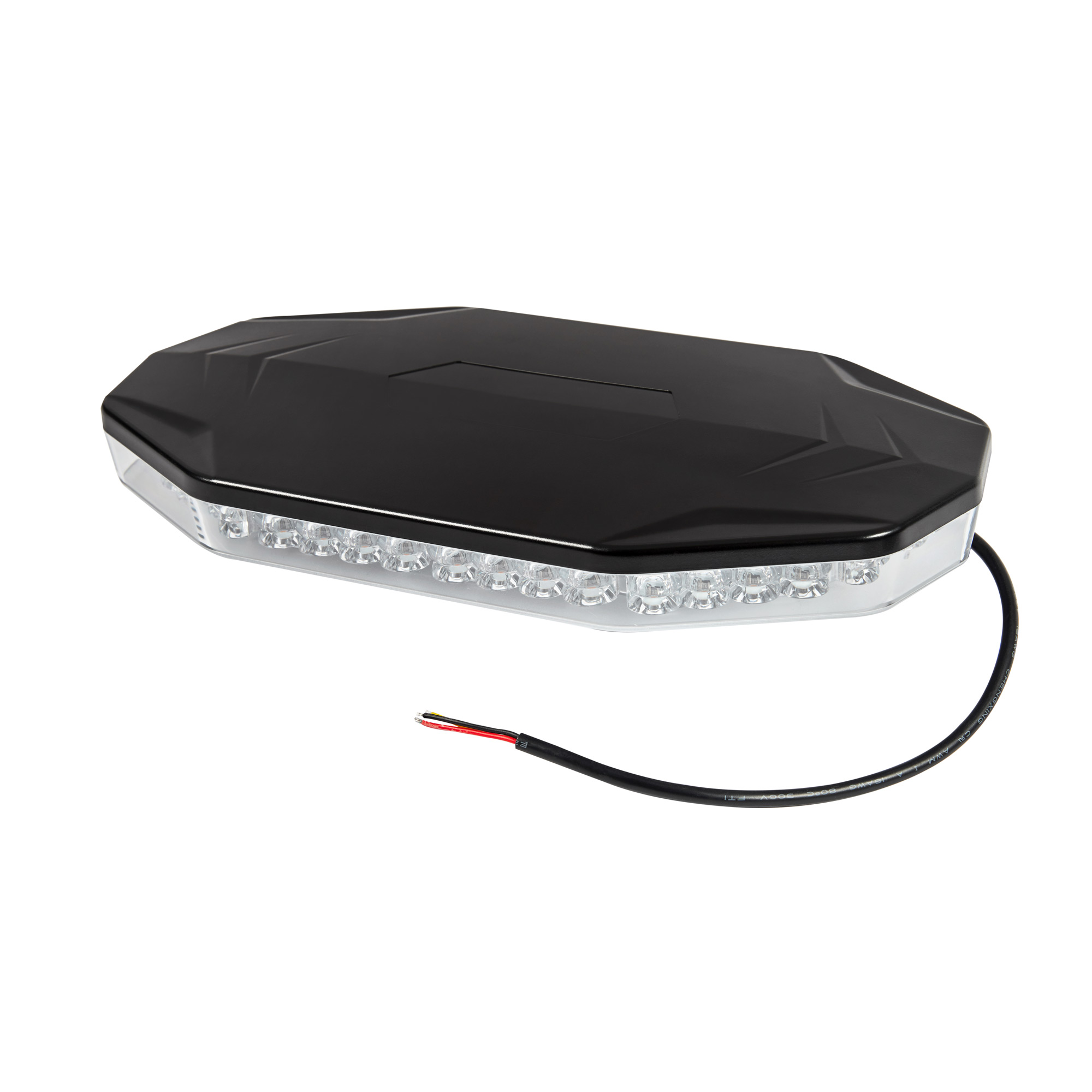

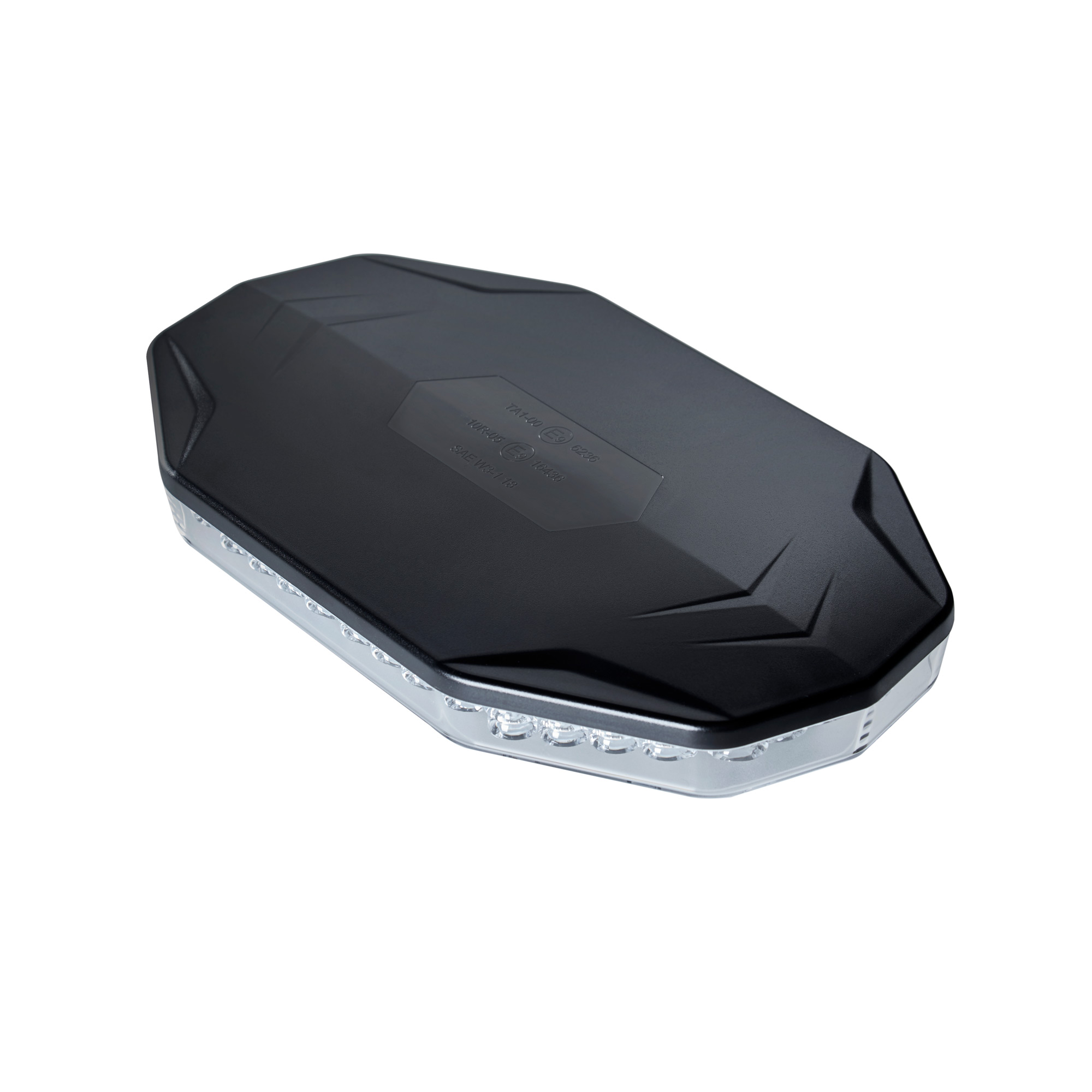

Amber Mini Lightbar
Reg 10 Approved
Reg 65 Approved
Suitable for a range applications from 10V up to 30V
Rated to IP67 for dust and water ingress

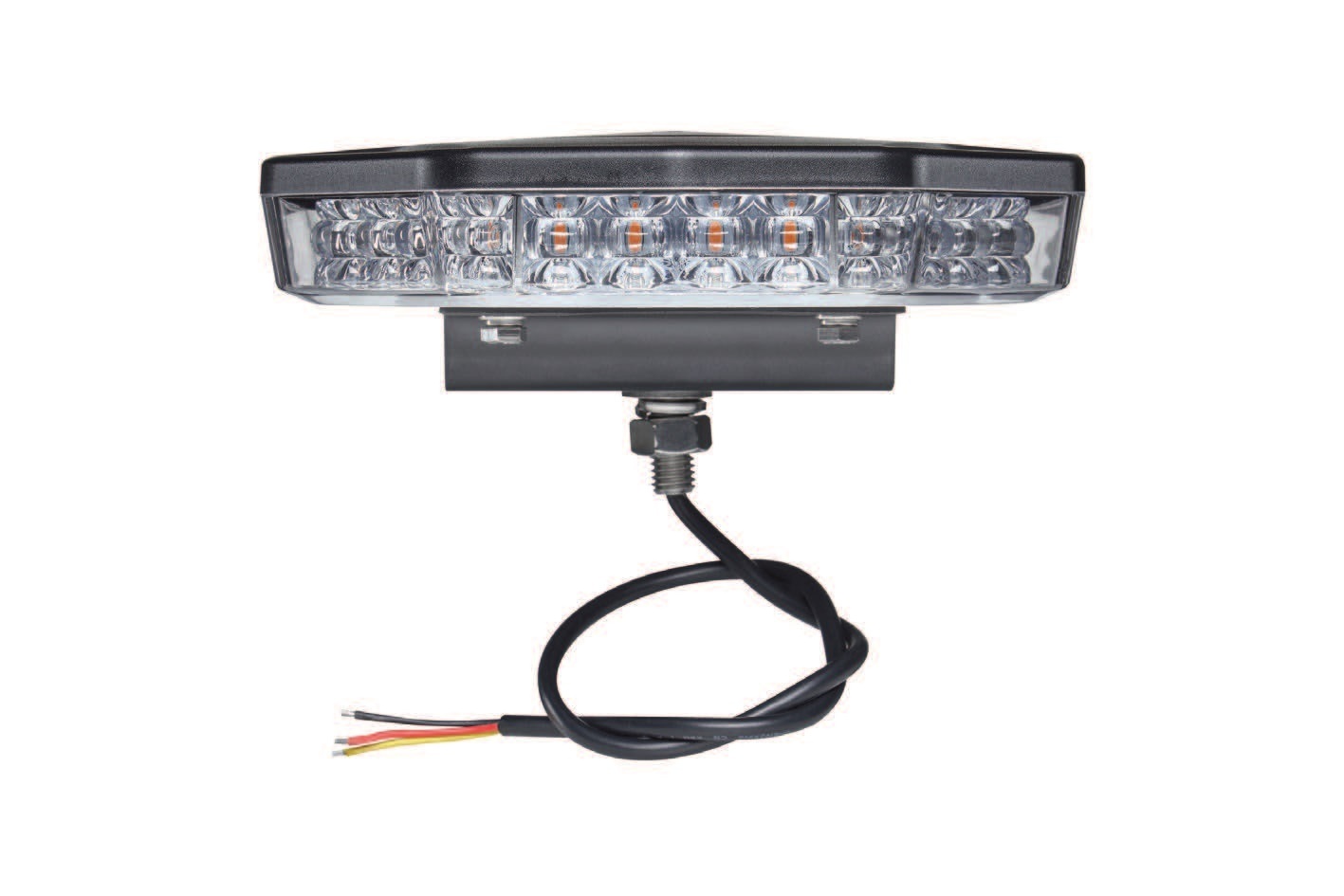

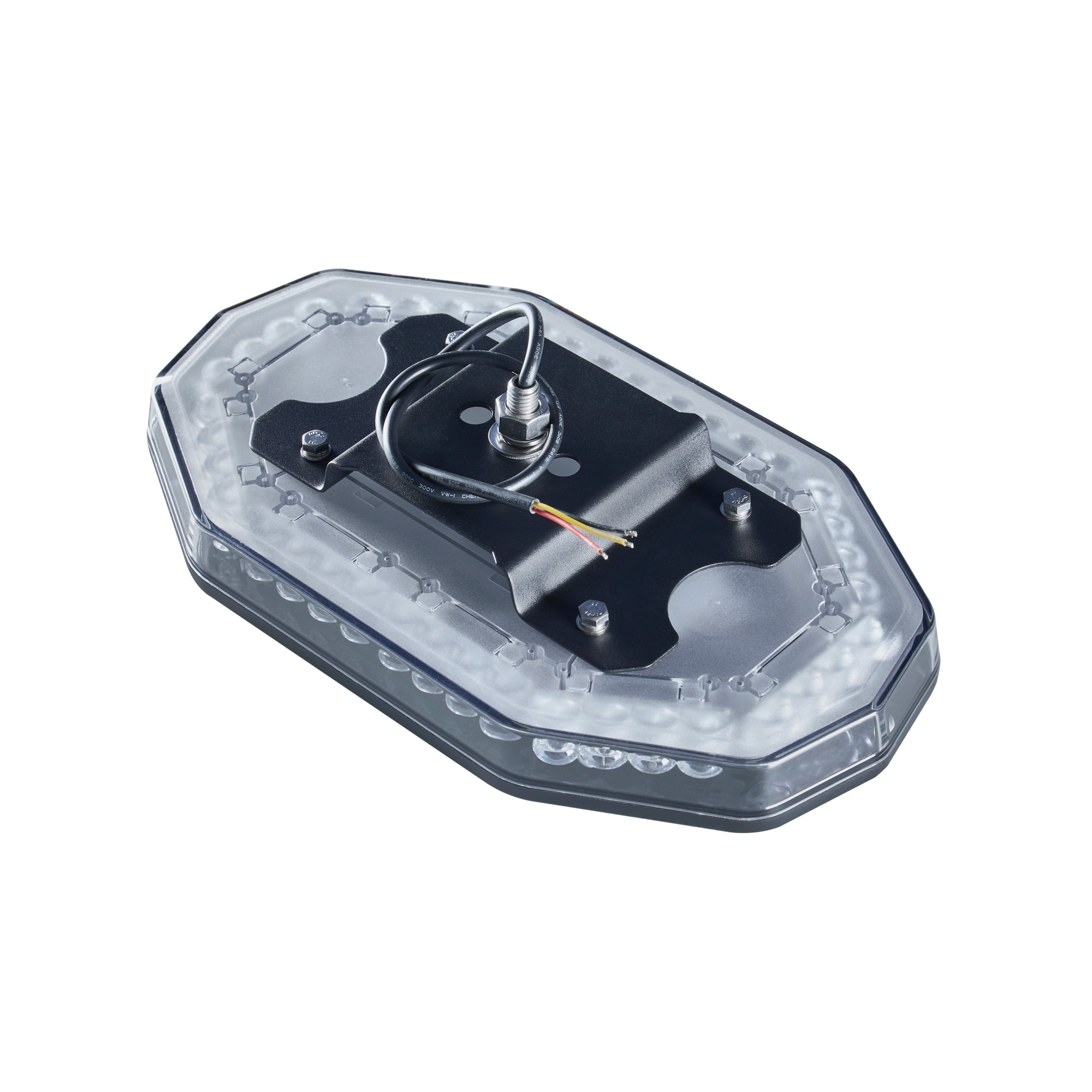

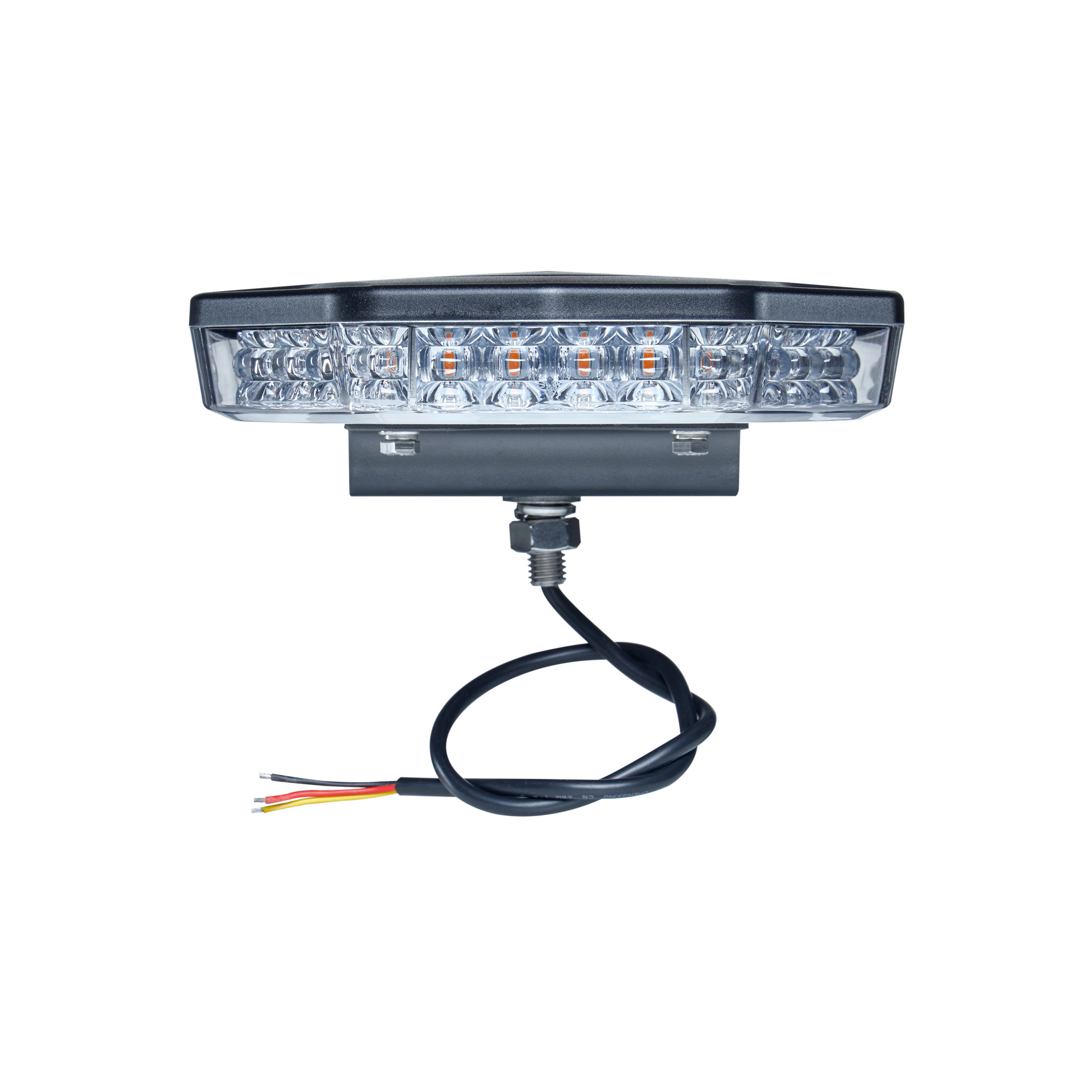

Single bolt mounting
Related
Products
RCV9762
AMBER LED
717mm LIGHT BAR
Bolt Mount
12V / 24V DC 80W
RCV9764
AMBER LED
1197mm LIGHT BAR
Bolt Mount
12V / 24V DC 128W
RCV9812
AMBER LED
388mm LIGHT BAR
Magnetic Mount
12V / 24V DC 39W
RCV9813
AMBER LED
388mm LIGHT BAR
Single & 4 Bolt Mount
12V / 24V DC 39W
RCV9819
AMBER LED
694mm LIGHT BAR
Bolt Mount
12V / 24V DC 79W
RCV9820
AMBER LED
922mm LIGHT BAR
Bolt Mount
12V / 24V DC 79W
RCV9821
AMBER LED
1148mm LIGHT BAR
Bolt Mount
12V / 24V DC 79W
RCV9822
MINI AMBER LED
251mm LED AMBER
Magnetic Mount
12V / 24V DC 20W
RCV9823
MINI AMBER LED
251mm LED AMBER
Single Bolt Mount
12V / 24V DC 20W
RCV9824
AMBER LED
1400mm LIGHT BAR
Bolt Mount
12V / 24V DC 79W
RCV9825
STOP TAIL INDICATORS AMBER LED
922mm LIGHT BAR
Bolt Mount
12V / 24V DC 96W
RCV9826
STOP TAIL INDICATORS AMBER LED
1148mm LIGHT BAR
Bolt Mount
12V / 24V DC 111W
Spec
RCV9761
RCV9762
RCV9764
RCV9812
RCV9813
RCV9819
RCV9820
RCV9821
RCV9822
RCV9823
RCV9824
RCV9825
RCV9826
Description
Mini LED Amber Light Bar
Voltage
10-30V
Wattage
20W
Amps
1.7A @12V, 0.85A @ 24V
Light Source
40 x 1W LED
Flash Patterns
18
Mounting
Bolt mount
Cable Length
500mm
Bracket
optional - RCV9761BR
Housing Material
ABS
Lens Material
Polycarbonate
Approvals
Reg 10 / Reg 65
IP Rating
IP67
Product Dimensions (mm)
58 x 343 x 197
Weight (kg)
1.424
LED Amber Light Bar
10-30V
80W
6.7A
80 x 1W LED
19
Bolt mount
500mm
mount kit included
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
-
-
LED Amber Light Bar
10-30V
128W
10.7A
128 x 1W LED
19
Bolt mount
500mm
mount kit included
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
45 x 1196 x 265
8.136
LED Amber Light Bar
12/24V DC
39W
3.3A
56 x 0.5W LED
10
Magnetic mount
2500mm
n/a
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
79 x 388 x 222
2.396
LED Amber Light Bar
12/24V DC
39W
3.3A
56 x 0.5W LED
10
Bolt mount
250mm
optional - RCV9813RBR
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
90 x 388 x 222
2.364
LED Amber Light Bar
12/24V DC
79W
6.6A
100 x 0.5W LED
10
Bolt mount
500mm
mount kit included
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
121 x 694 x 305
6.436
LED Amber Light Bar
12/24V DC
109W
9.1A
132 x 0.5W LED
10
Bolt mount
500mm
mount kit included
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
121 x 922 x 305
7.838
LED Amber Light Bar
12/24V DC
127W
10.6A
164 x 0.5W LED
10
Bolt mount
500mm
mount kit included
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
121 x 1450 x 305
9.966
Mini LED Amber Light Bar
10-30V
20W
1.7a
40 x 0.5W LED
20
Magnetic mount
2500mm
n/a
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
47 x 251 x 169
1.124
Mini LED Amber Light Bar
10-30V
20W
1.7A
40 x 0.5W LED
20
Bolt mount
250mm
n/a
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
55 x 251 x 169
1.036
LED Amber Light Bar
10-30V
140W
11.7A
196 x 0.5W LED
10
Bolt mount
500mm
mount kit included
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
70 x 1373 x 33
12.432
Stop/Tail/Ind LED Amber Light Bar
10-30V
96W
8.0A
LED
10
Bolt mount
500mm
brackets & mount kit included
ABS
Polycarbonate
Reg 6 / Reg 7 / Reg 10 / Reg 65
IP67
-
-
Stop/Tail/Ind LED Amber Light Bar
10-30V
111W
9.25A
LED
10
Bolt mount
500mm
brackets & mount kit included
ABS
Polycarbonate
Reg 6 / Reg 7 / Reg 10 / Reg 65
IP67
75 x 1147 x 306
10.488
