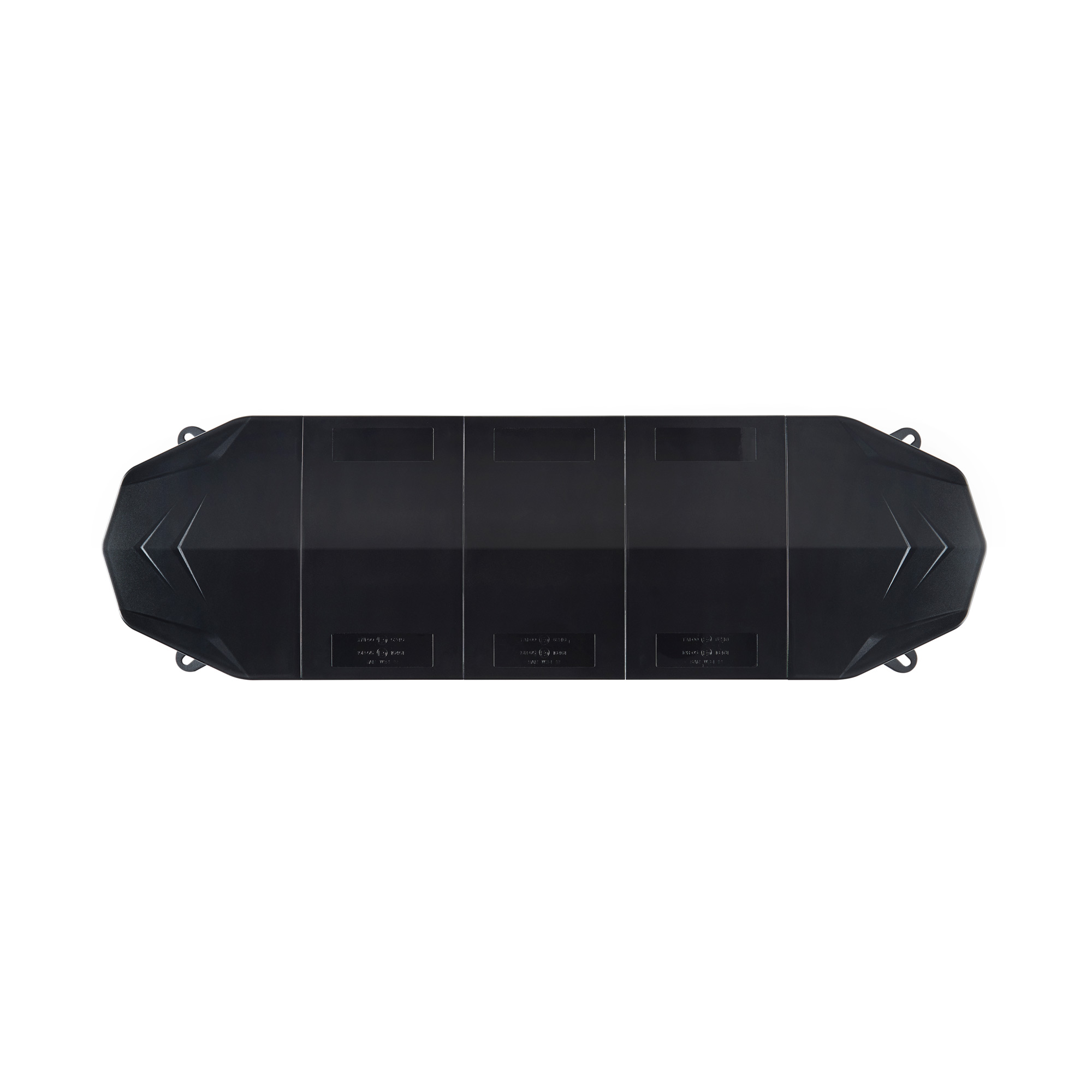

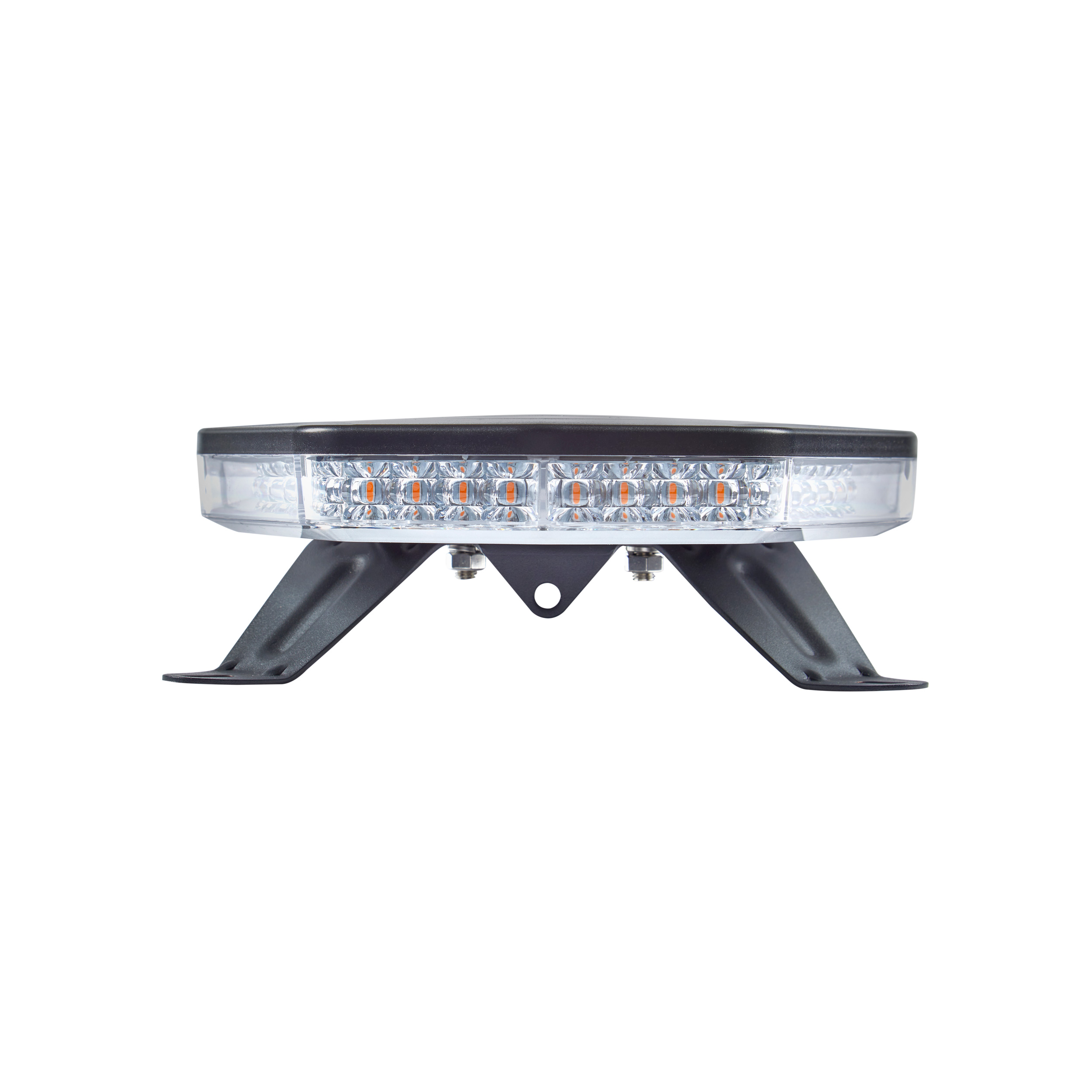

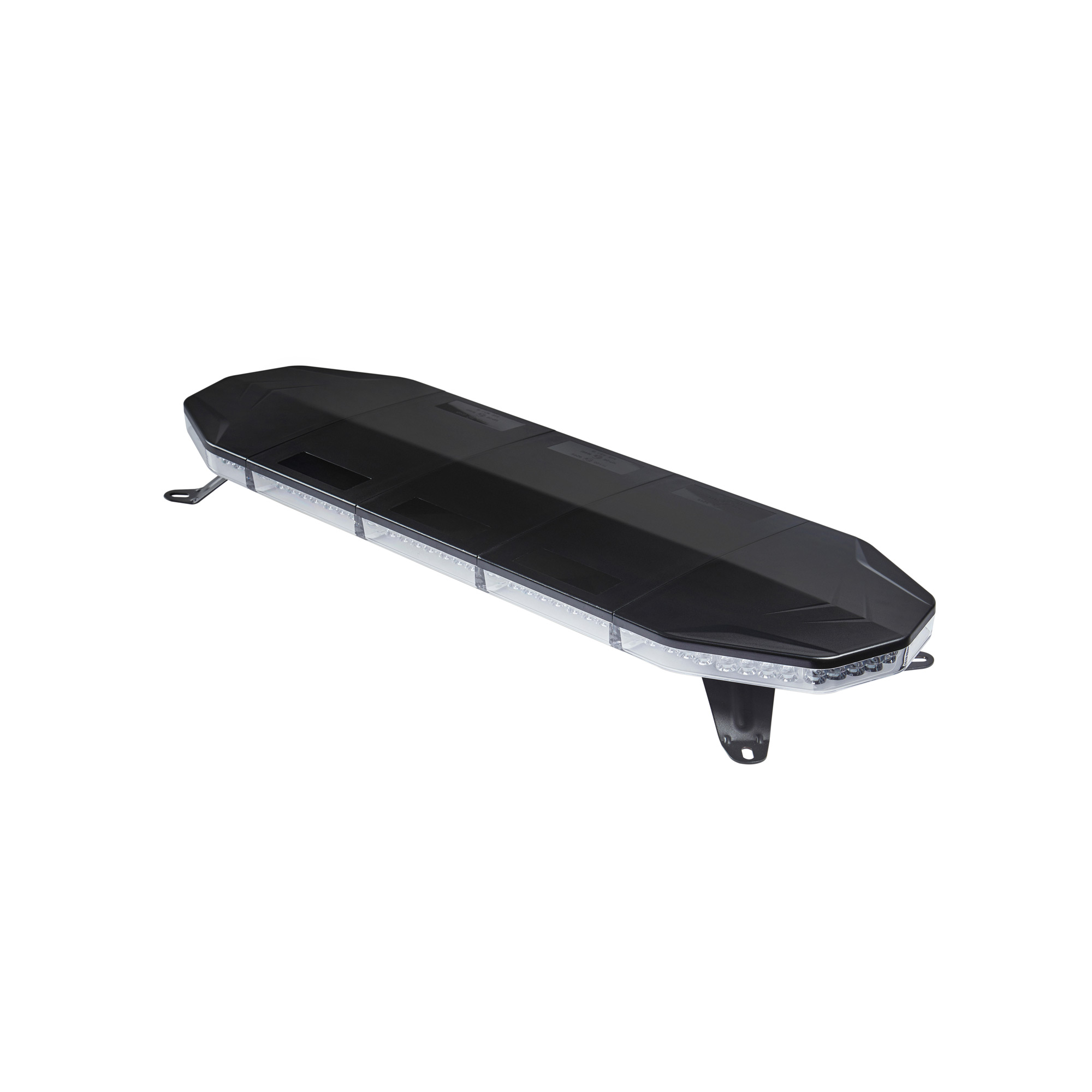

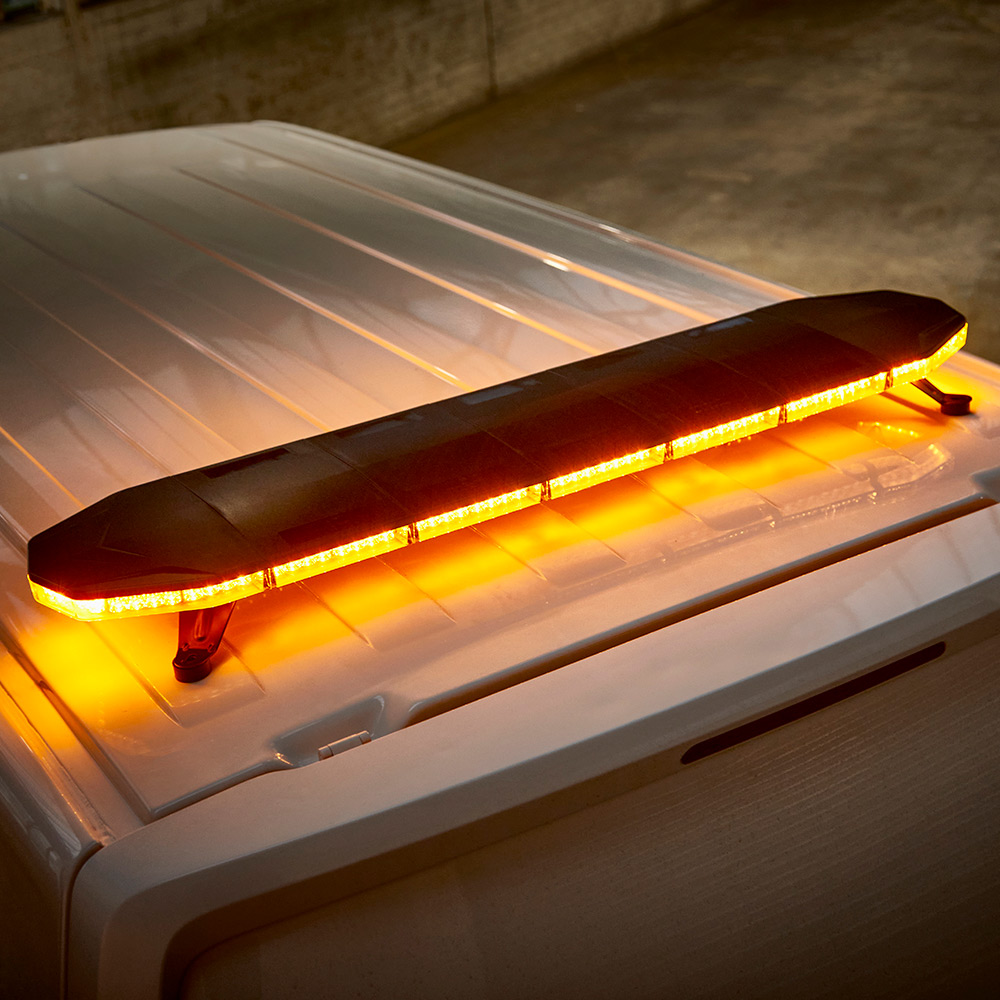

RCV9763

RCV9763

RCV9763

RCV9763

| RCV9763

Technical details

RCV9763

Amber LED

877mm Light Bar

Bolt Mount

Reg 65 Approved
Reg 10 Approved
10 - 30 V
500mm cable

Related Products

RCV9761

MINI AMBER LED
345mm LIGHT BAR

RCV9762

AMBER LED
717mm LIGHT BAR

RCV9764

AMBER LED
1197mm LIGHT BAR

RCV9812

AMBER LED
388mm LIGHT BAR

RCV9813

AMBER LED
388mm LIGHT BAR

RCV9819

AMBER LED
694mm LIGHT BAR

RCV9820

AMBER LED
922mm LIGHT BAR

RCV9822

MINI AMBER LED
251mm LED AMBER

RCV9823

MINI AMBER LED
251mm LED AMBER

RCV9824

AMBER LED
1400mm LIGHT BAR

RCV9826

STOP TAIL INDICATORS AMBER LED
1148mm LIGHT BAR

RCV9834

12/24V AMBER LED WARNING
1148mm LIGHTBAR BRACKET/BOLT MOUNT

Spec	RCV9763	RCV9761	RCV9762	RCV9764	RCV9812	RCV9813	RCV9819	RCV9820	RCV9822	RCV9823	RCV9824	RCV9826	RCV9834
Description	Amber LED 877mm Light Bar
Voltage
Wattage	96W
Amps	8A Current draw
Light Source	96 x 1 W LED
Flash Patterns	18
Mounting	Bolt mount
Cable Length	500mm
Bracket	mount kit included
Housing Material	ABS
Lens Material	Polycarbonate
Approvals	Reg 10 / Reg 65
IP Rating	IP67
Product Dimensions (mm)	40 x 877 x 265
Weight (kg)	6.036

Mini LED Amber Light Bar

10-30V

20W

1.7A @12V, 0.85A @ 24V

40 x 1W LED

18

Bolt mount

500mm

optional - RCV9761BR

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

58 x 343 x 197

1.424

LED Amber Light Bar

10-30V

80W

6.7A

80 x 1W LED

19

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

70 x 722 x 315

4.008

LED Amber Light Bar

10-30V

128W

10.7A

128 x 1W LED

19

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

45 x 1196 x 265

8.136

LED Amber Light Bar

12/24V DC

39W

3.3A

56 x 0.5W LED

10

Magnetic mount

2500mm

n/a

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

79 x 388 x 222

2.396

LED Amber Light Bar

12/24V DC

39W

3.3A

56 x 0.5W LED

10

Bolt mount

250mm

optional - RCV9813RBR

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

90 x 388 x 222

2.364

LED Amber Light Bar

12/24V DC

79W

6.6A

100 x 0.5W LED

10

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

121 x 694 x 305

6.436

LED Amber Light Bar

12/24V DC

109W

9.1A

132 x 0.5W LED

10

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

121 x 922 x 305

7.838

Mini LED Amber Light Bar

10-30V

20W

1.7a

40 x 0.5W LED

20

Magnetic mount

2500mm

n/a

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

47 x 251 x 169

1.124

Mini LED Amber Light Bar

10-30V

20W

1.7A

40 x 0.5W LED

20

Bolt mount

250mm

n/a

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

55 x 251 x 169

1.036

LED Amber Light Bar

10-30V

140W

11.7A

196 x 0.5W LED

10

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

70 x 1373 x 33

12.432

Stop/Tail/Ind LED Amber Light Bar

10-30V

111W

9.25A

LED

10

Bolt mount

500mm

brackets & mount kit included

ABS

Polycarbonate

Reg 6 / Reg 7 / Reg 10 / Reg 65

IP67

75 x 1147 x 306

10.488

1148mm AMBER LIGHT BOLT MOUNT

12/24V

Average: 75W

13.5V: 4.6~6.23A 28V: 2.1~2.84A

164 x 1W LED

10

BOLT MOUNT

2500mm

-

Polycarbonate

Polycarbonate

ECE R65 Class 2, ECE R10, CISPR25 Class 3, IP69K

IP69K

60 x 1145 x 305

8.786
