SLIMLINE

HAMBURGER LAMP

Stop, Tail, Indicator

Reg 10 Approved
Reg 6 Approved
Reg 7 Approved
20x 0.2W SMD LED
Combined Tail, Stop & Indicator light
Red/Amber lens
Slimline Design

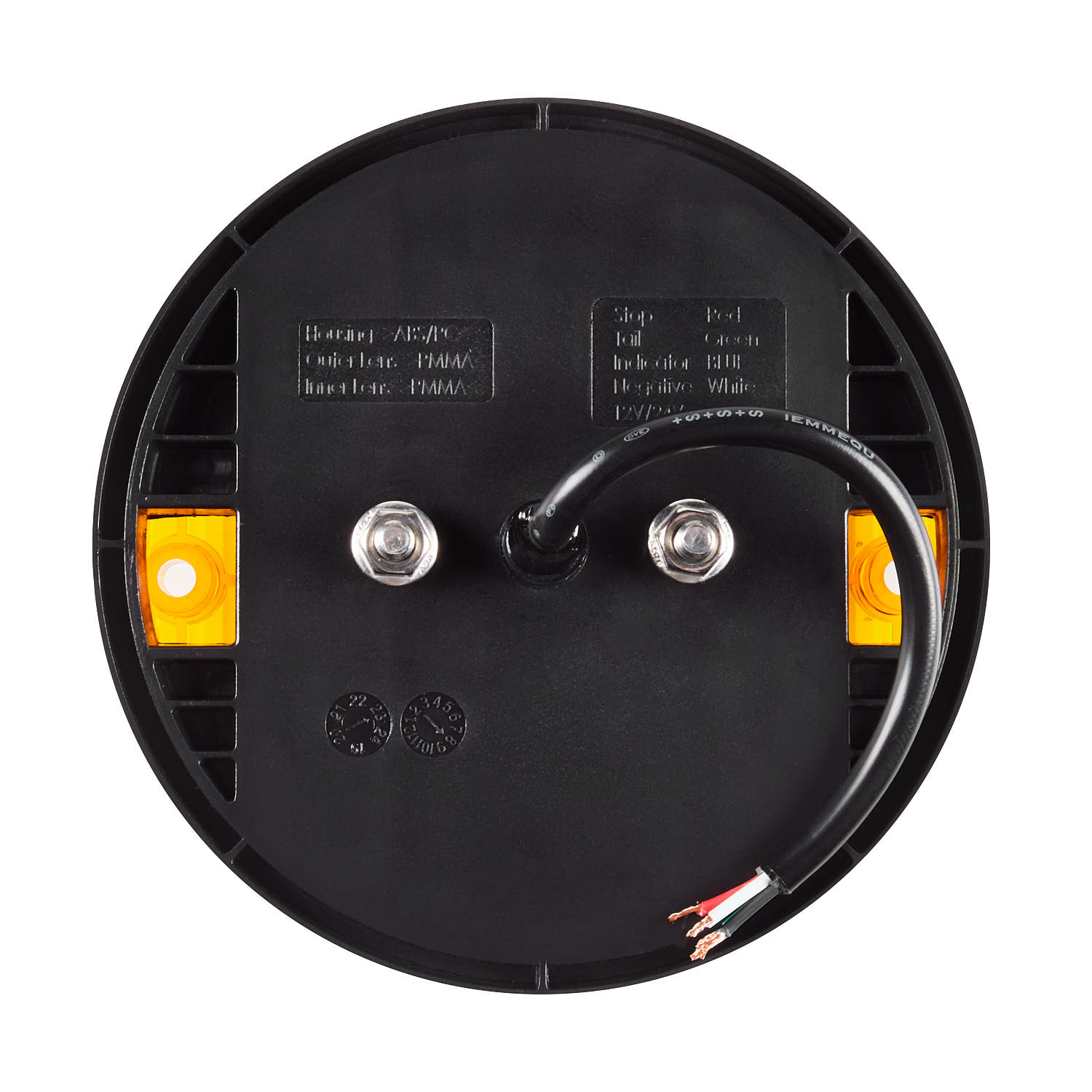

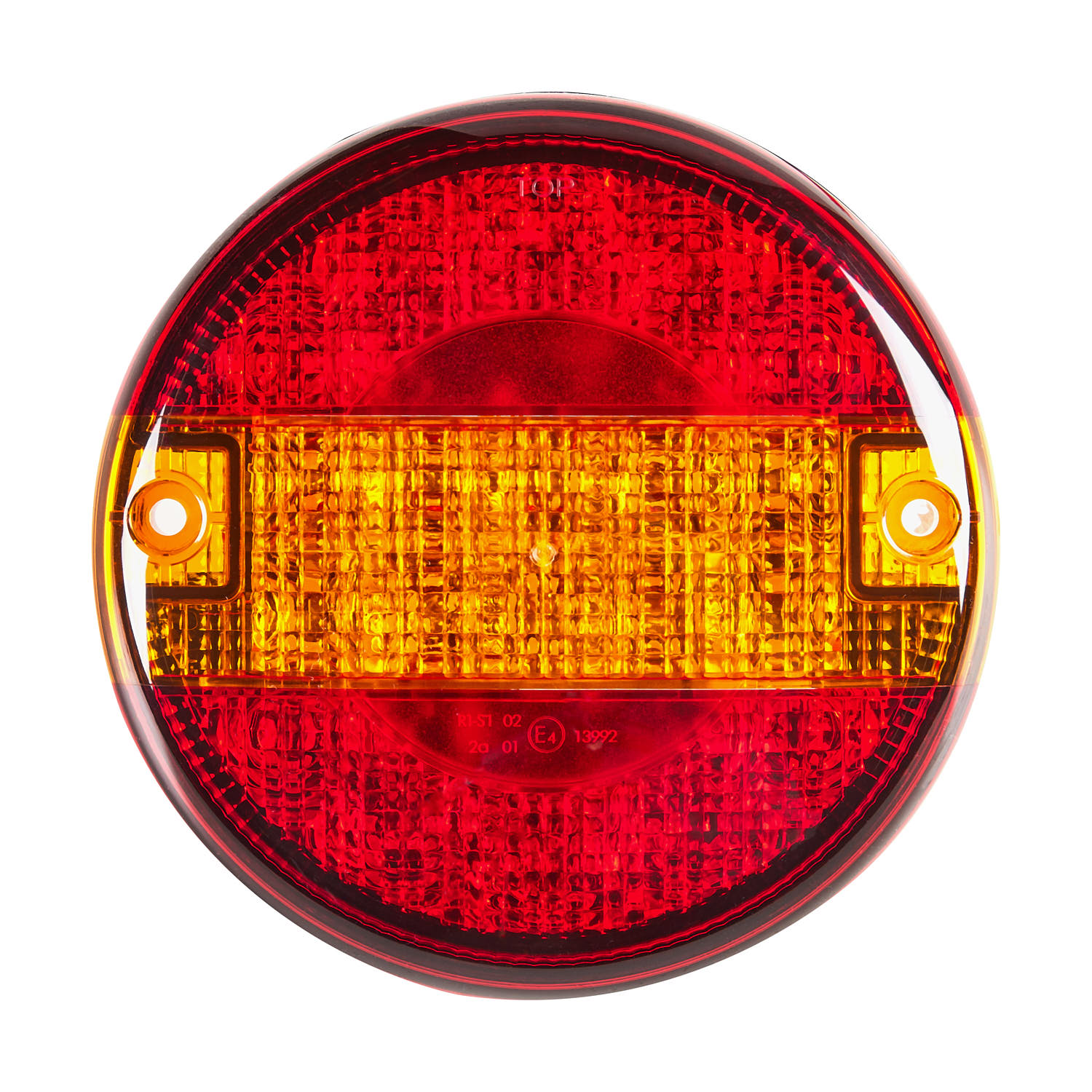

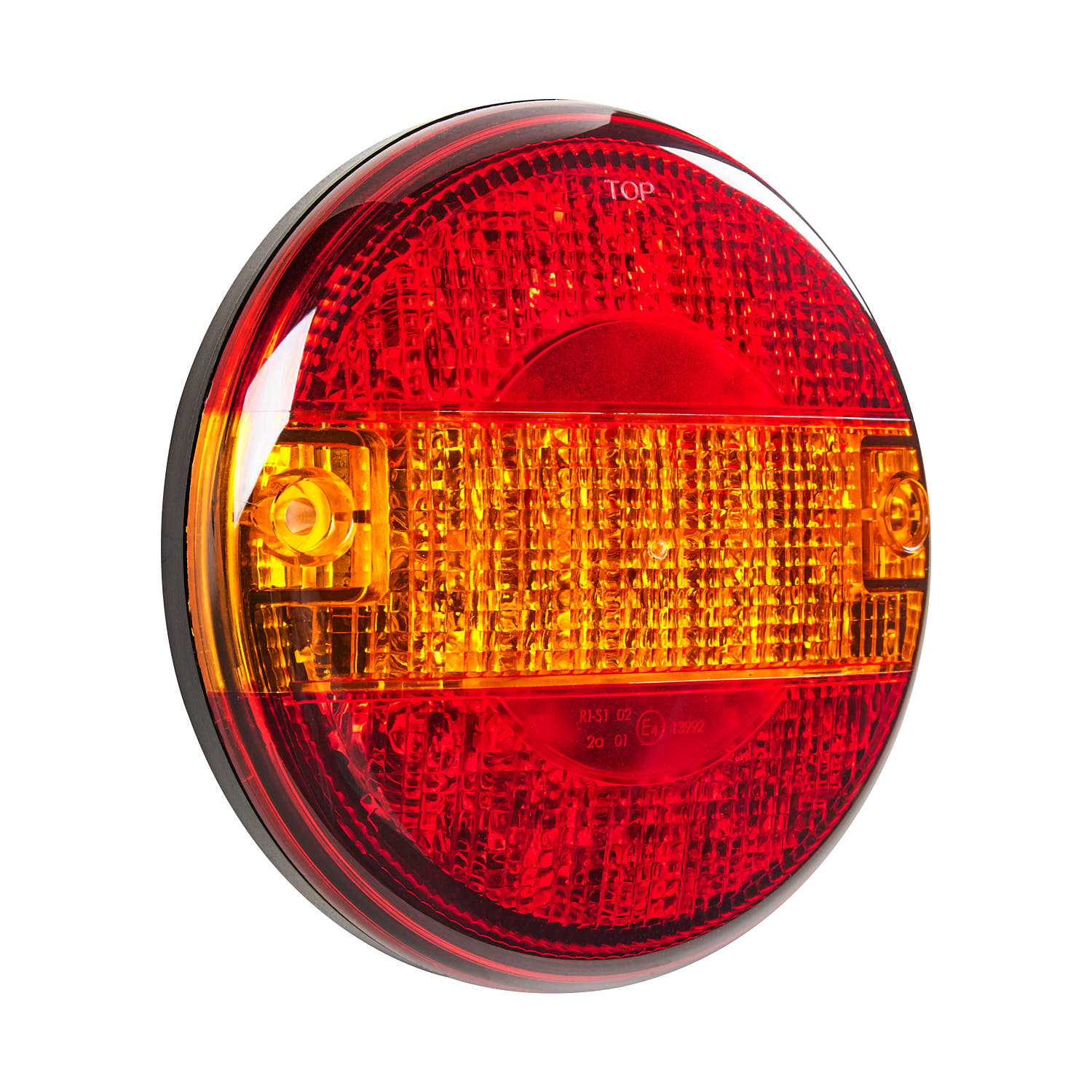

Ring's slimline "hamburger" combination rear light unit is ideal for a wide variety of applications. Reg 6, Reg7 and Reg 10 approved, this dual voltage universal lamp unit can be fitted to both 12V and 24V vehicles.

Related Products

RCV4607

HAMBURGER LAMP
WITH BUCKET

Specifications

Spec	RCV4606	RCV4607	RCV4608	RCV4609
Description	Combined lamp with stop/tail/indicator	Combined lamp with stop/tail/indicator	Rear combination lamp - left	Rear combination lamp - right
Lens	Red/amber	Red/amber	Red/amber/clear	Red/amber/clear
Wattage	3.2W	3.2W	4W	4W
Amps	0.3A @ 12V; 0.15A @ 24V	0.3A @ 12V; 0.15A @ 24V	0.4A @ 12V; 0.2A @ 24V	0.4A @ 12V; 0.2A @ 24V
Light Source	20 x 0.2W SMD LED	20 x 0.2W SMD LED	-	-
Light Output	Reg 6 / Reg 7	Reg 6 / Reg 7	Stop 2.3W, Tail 0.5W, Reverse 2.3W, Side 2W, Rear fog 4W	Stop 2.3W, Tail 0.5W, Reverse 2.3W, Side 2W, Rear fog 4W
Housing Material	ABS	ABS	PC	PC
Lens Material	PMMA	PMMA	PMMA	PMMA
Cable Length	200mm	-	500mm	500mm
Product Dimensions	Ø140 x 25mm	Ø140 x 85.5mm	252 x 133 x 28.5mm	252 x 133 x 28.5mm
