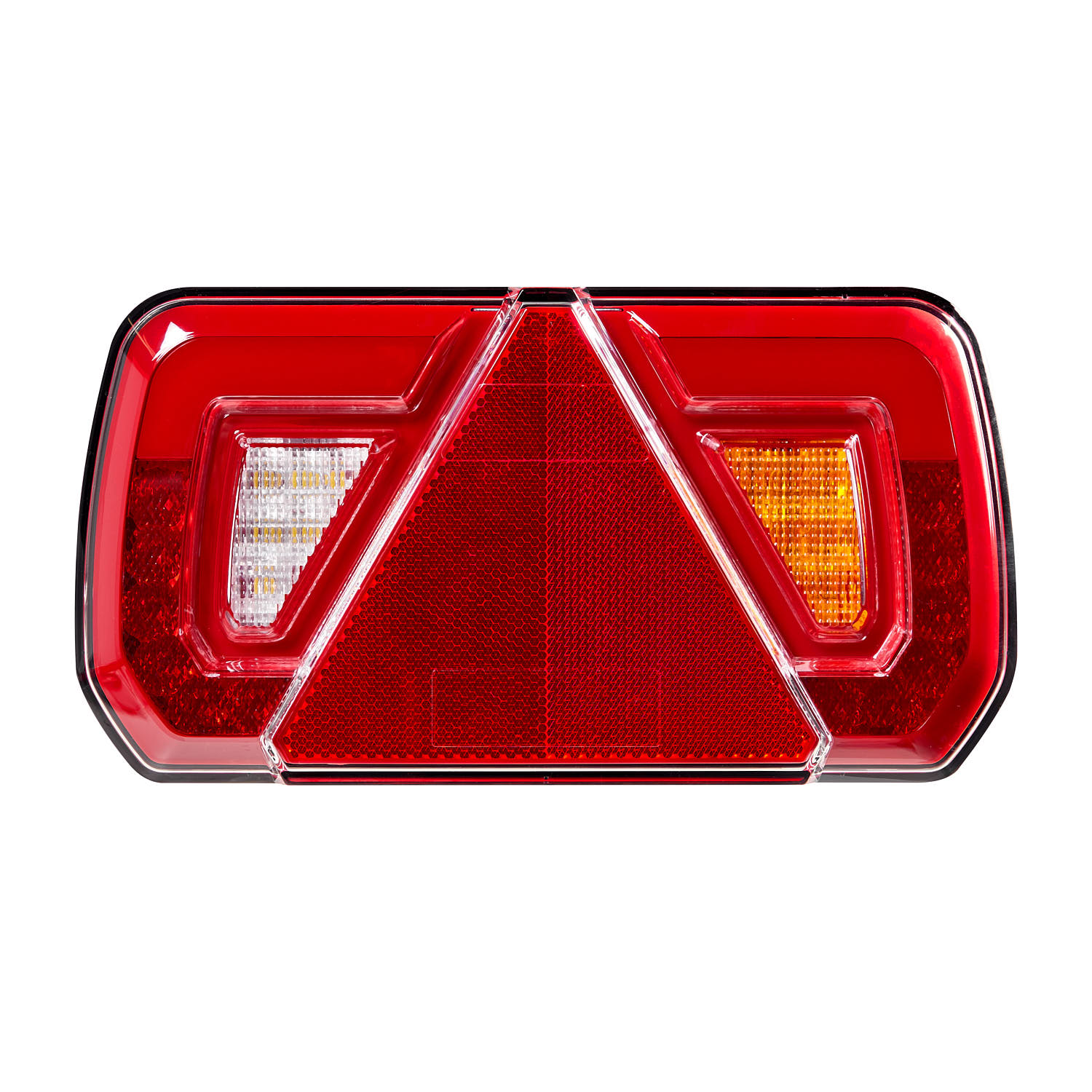

RIGHT

COMBI LAMP

With Dynamic Indicator

Combined Tail, Stop & Indicator light
Dynamic Indicators
LED
Red/Amber/Clear lens
Reg 10 Approved
Reg 23 Approved
Reg 3 Approved
Reg 38 Approved
Reg 6 Approved
Reg 7 Approved

Ring's "combination rear light unit with dynamic indicator is ideal for a wide variety of applications. Reg 3, Reg6, Reg7, Reg 10, Reg23 and Reg 38 approved, this dual voltage universal lamp unit can be fitted to both 12V and 24V vehicles.

Related Products

RCV4606

SLIMLINE
HAMBURGER LAMP

RCV4607

HAMBURGER LAMP
WITH BUCKET

RCV4608

LEFT
COMBI LAMP

Spec	RCV4609	RCV4606	RCV4607	RCV4608
Description	Rear combination lamp - right
Lens	Red/amber/clear
Wattage	4W
Amps	0.4A @ 12V; 0.2A @ 24V
Light Source	-
Light Output	Stop 2.3W, Tail 0.5W, Reverse 2.3W, Side 2W, Rear fog 4W
Housing Material	PC
Lens Material	PMMA
Cable Length	500mm
Product Dimensions	252 x 133 x 28.5mm

Combined lamp with stop/tail/indicator

Red/amber

3.2W

0.3A @ 12V; 0.15A @ 24V

20 x 0.2W SMD LED

Reg 6 / Reg 7

ABS

PMMA

200mm

Ø140 x 25mm

Combined lamp with stop/tail/indicator

Red/amber

3.2W

0.3A @ 12V; 0.15A @ 24V

20 x 0.2W SMD LED

Reg 6 / Reg 7

ABS

PMMA

Ø140 x 85.5mm

Rear combination lamp - left

Red/amber/clear

0.4A @ 12V; 0.2A @ 24V

Stop 2.3W, Tail 0.5W, Reverse 2.3W, Side 2W, Rear fog 4W

PMMA

500mm

252 x 133 x 28.5mm
