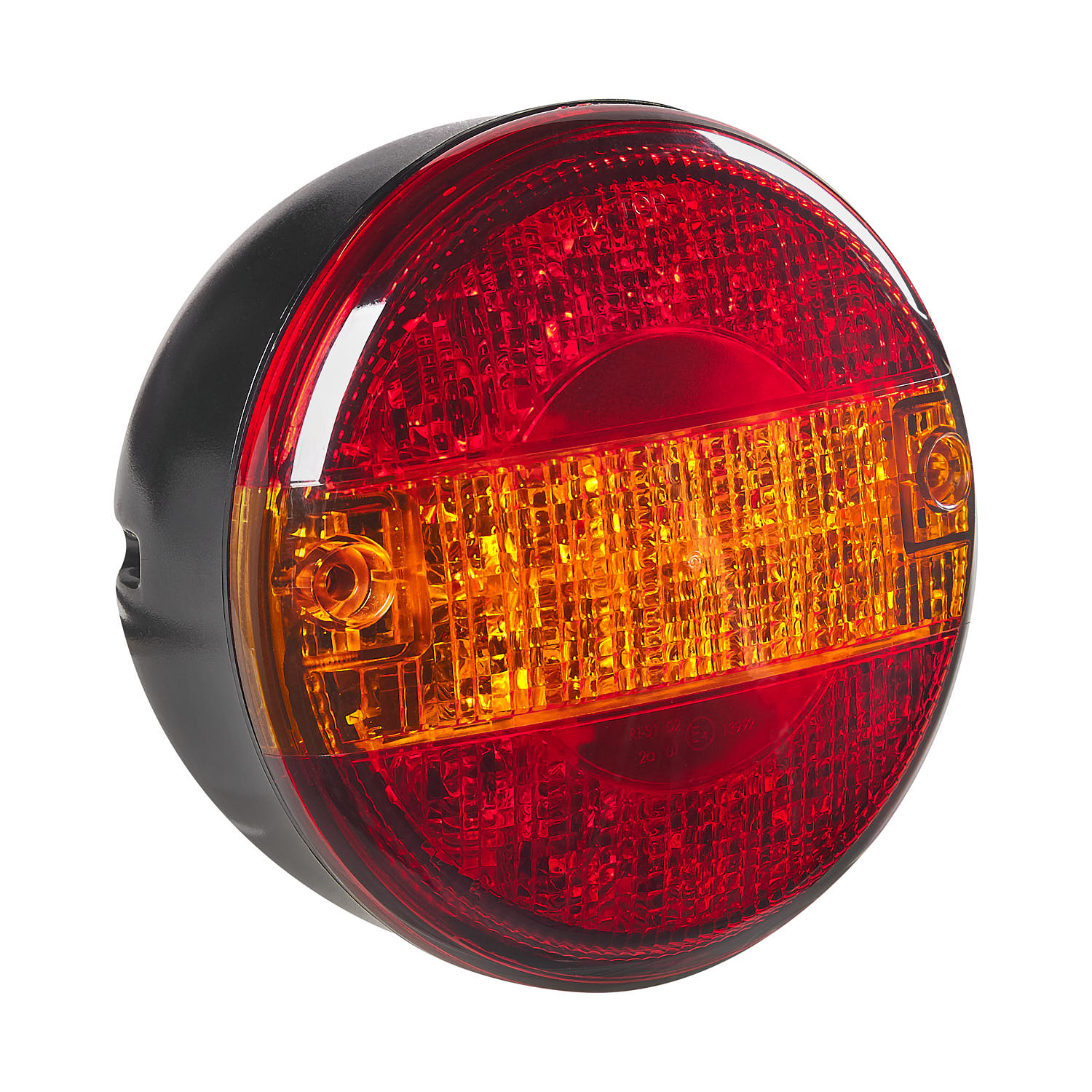

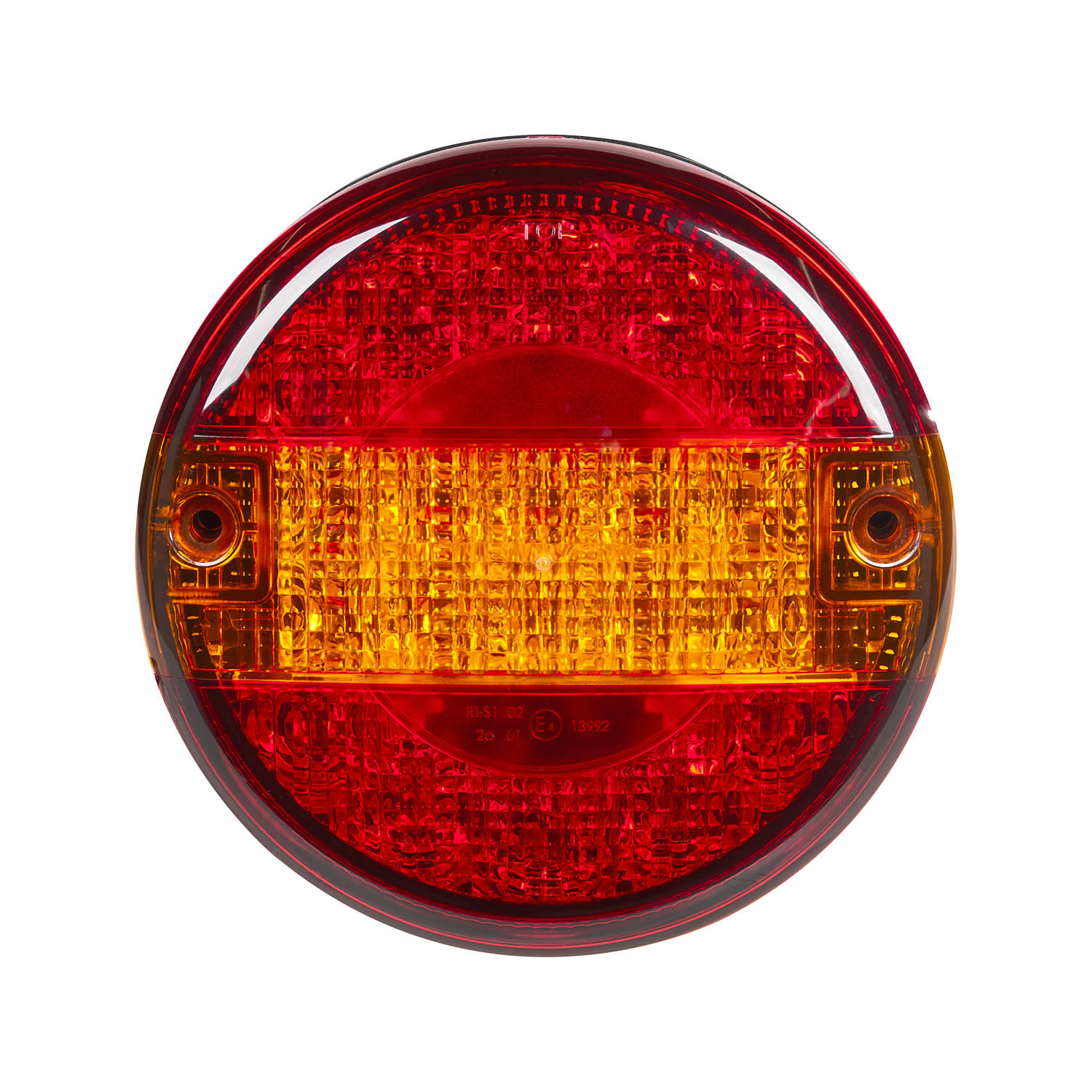

HAMBURGER LAMP

WITH BUCKET

Stop, Tail, Indicator

Reg 10 Approved
Reg 6 Approved
Reg 7 Approved
20x 0.2W SMD LED
Combined Tail, Stop & Indicator light
Red/Amber lens
With Bucket

Ring's "hamburger" combination rear light unit is ideal for a wide variety of applications. Reg 6, Reg7 and Reg 10 approved, this dual voltage universal lamp unit can be fitted to both 12V and 24V vehicles.

Related Products

RCV4606

SLIMLINE
HAMBURGER LAMP

Spec	RCV4607	RCV4606	RCV4608	RCV4609
Description	Combined lamp with stop/tail/indicator
Lens	Red/amber
Wattage	3.2W
Amps	0.3A @ 12V; 0.15A @ 24V
Light Source	20 x 0.2W SMD LED
Light Output	Reg 6 / Reg 7
Housing Material	ABS
Lens Material	PMMA
Cable Length	-
Product Dimensions	Ø140 x 85.5mm

Combined lamp with stop/tail/indicator

Red/amber

3.2W

0.3A @ 12V; 0.15A @ 24V

20 x 0.2W SMD LED

Reg 6 / Reg 7

ABS

PMMA

200mm

Ø140 x 25mm

Rear combination lamp - left

Red/amber/clear

0.4A @ 12V; 0.2A @ 24V

Stop 2.3W, Tail 0.5W, Reverse 2.3W, Side 2W, Rear fog 4W

PMMA

500mm

252 x 133 x 28.5mm

Rear combination lamp - right

Red/amber/clear

0.4A @ 12V; 0.2A @ 24V

Stop 2.3W, Tail 0.5W, Reverse 2.3W, Side 2W, Rear fog 4W

PMMA

500mm

252 x 133 x 28.5mm
