RSU60

WIRELESS

CONNECT

Switch 8 electrical products from 1 remote keypad

  • Wireless tech hub to control power to ancillary electrical products
  • 12V power with single point connection for efficient installation
  • Battery protection to maintain battery voltage
  • Unique signal pairing - allows 2 switch panels to be used
  • Easy connection with 8 fused output channels for ancillary electrical products
  • 60A capacity - powerful enough to operate multiple ancillaries at the same time
  • 8 switches controlled by a one user interface
  • Active channel lights on control to indicate which the power status of each switch
  • Docking station for control - for secure fitment when travelling and recharging
  • Includes manual override switch in case of an emergency

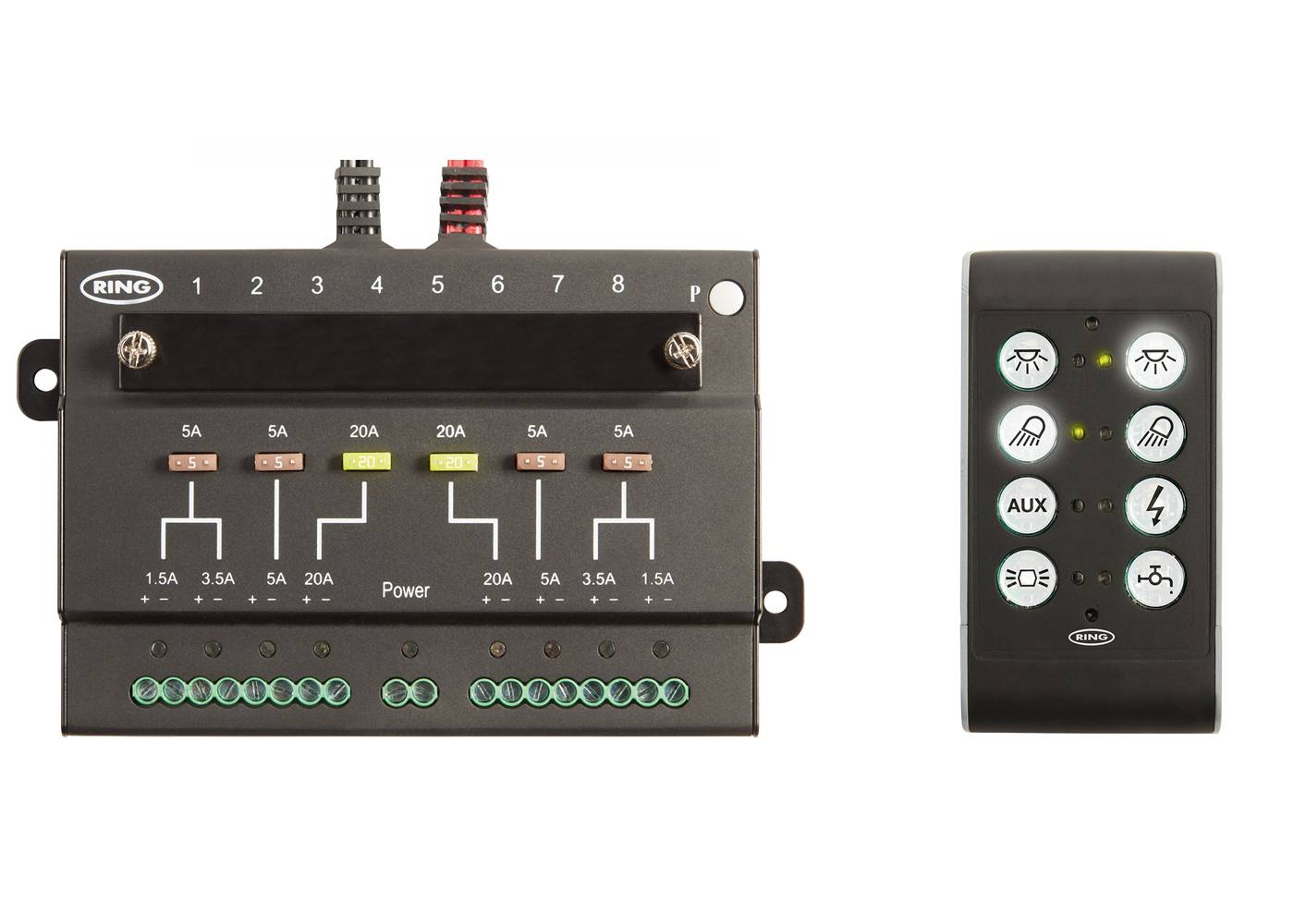

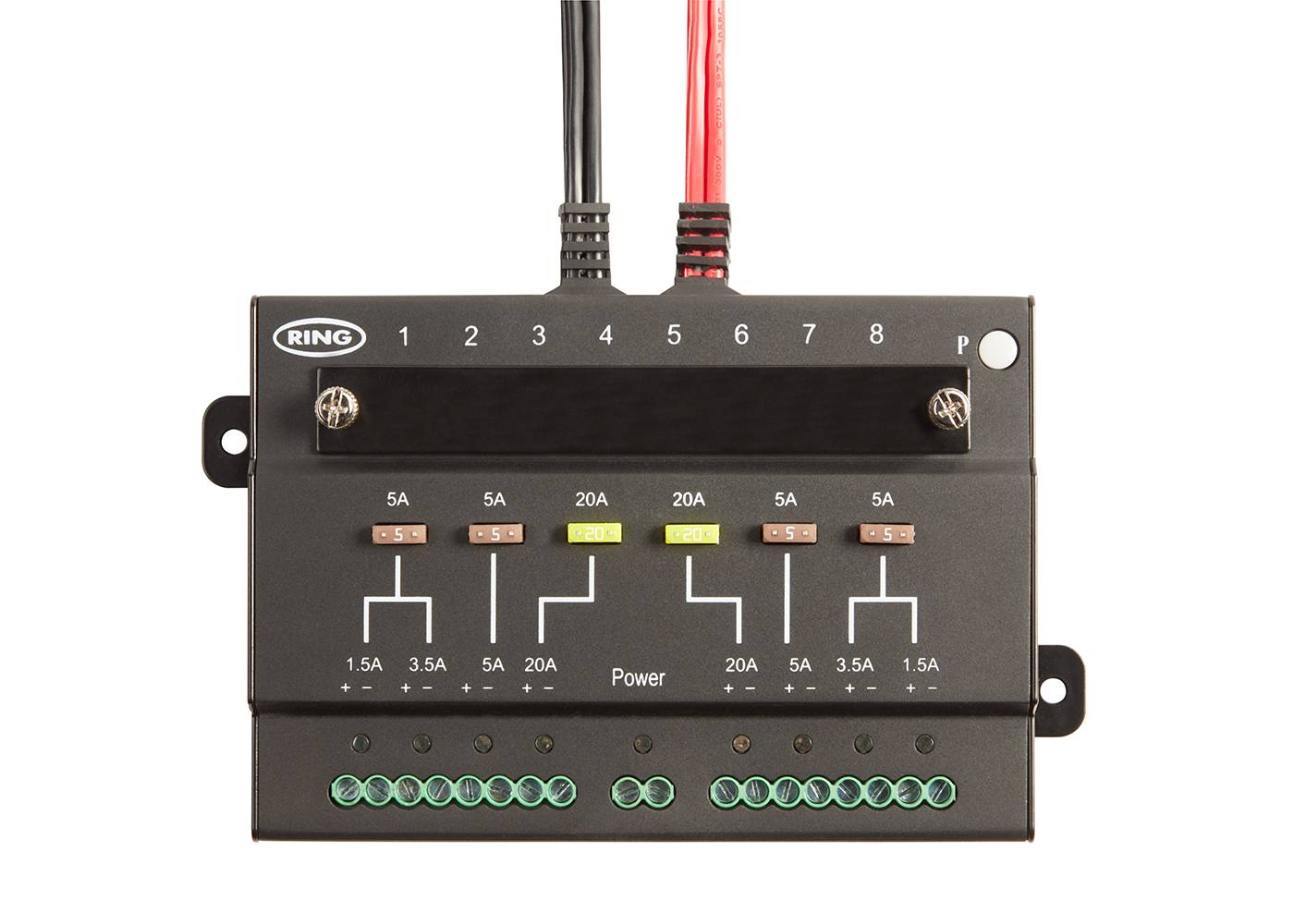

Eliminate the need for excessive wires and save up to 35% productivity time with the RSU60 Wireless Switching System. The RSU60 provides 12V power to 8 fused output channels and has a single-point switch operation - these can all be controlled via a one user interface, making connection for ancillary electrical products more simple. The 60Amp capacity is powerful enough to operate multiple ancillaries at the same time with a unique signal pairing. For added safety, there is a manual override function so that it is possible to take control of anything connected to the RSU60 in case of an emergency

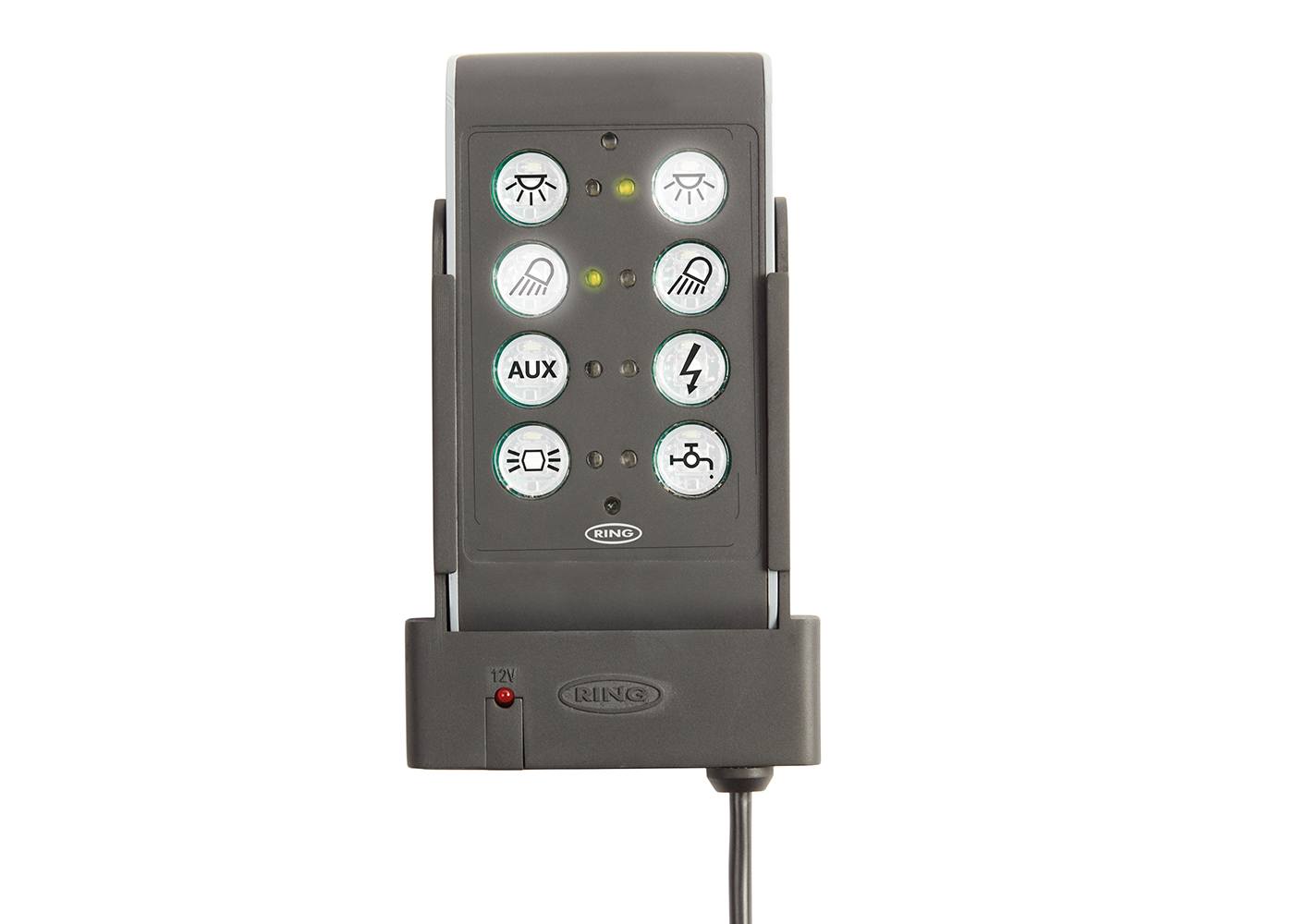

The switch remote for the system has backlit illumination for low lighting and a docking station for secure fitment and recharging. The remote can be personalised with different sticker icons to suit individual requirements.

Spec
Description Wireless Connect
Voltage 12V DC
Wattage -
Amps 60A
Input Voltage 11-15V
Input Current Max 60A
Battery Protect Voltage Cut Off 11V
Input Reverse Voltage Protection to 16V
Fused Input 60A
8 Fused Relay Channels 2x 1.5A, 2x 3.5A, 2x 5A, 2x 20A
Approvals Reg 10
Product Dimensions (mm) -
Weight (kg) 1.032
