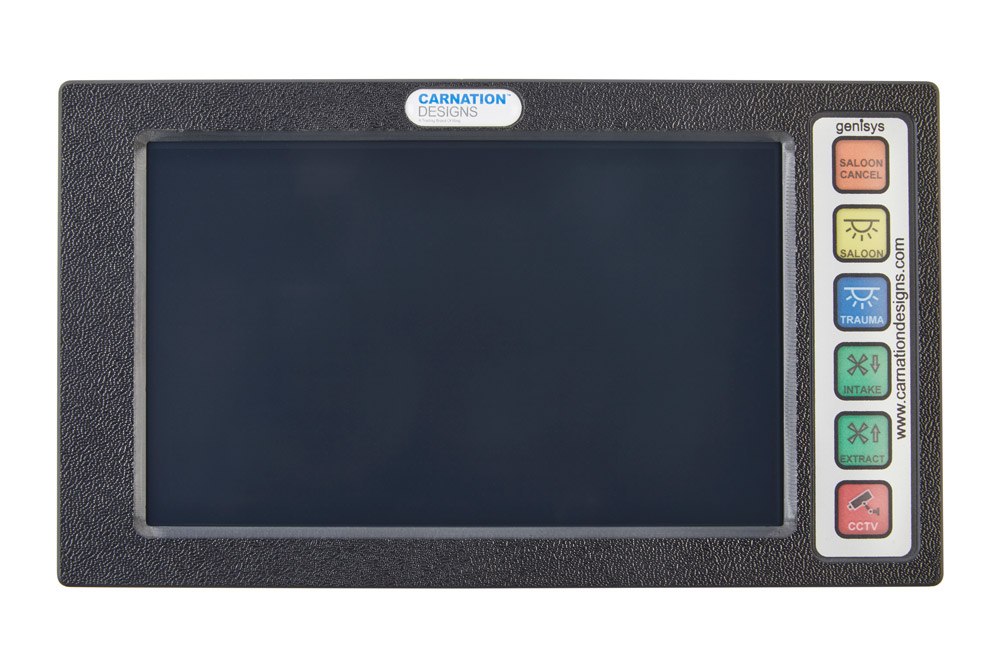

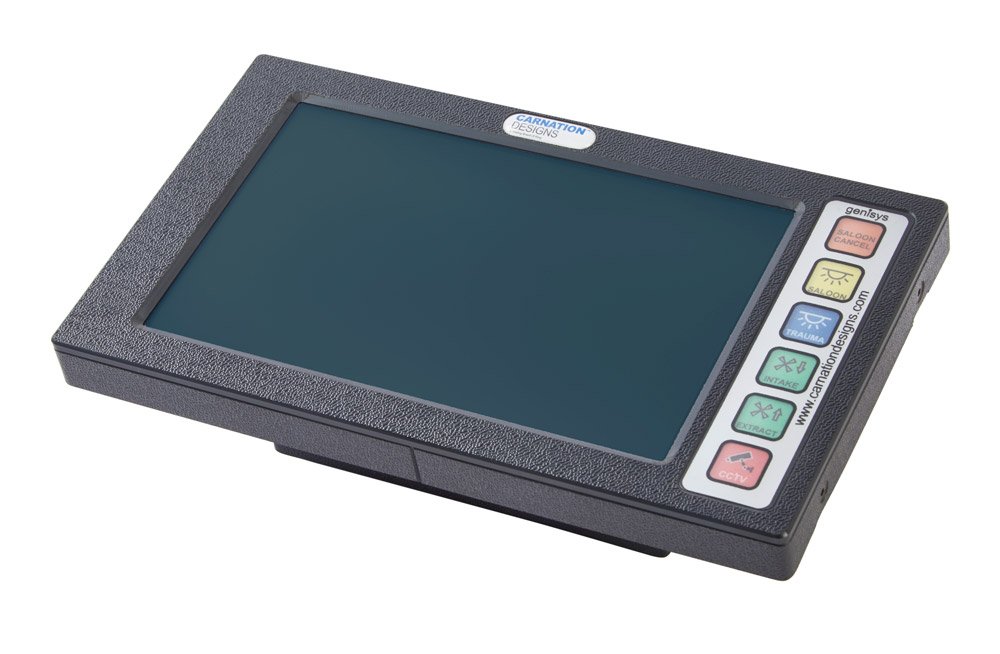

genisys™ TOUCH SCREEN

A RING CARNATION PRODUCT

  • 7” touchscreen display interface
  • 6 x back-up hard keys
  • Up to 8 menu screens with customisable visuals/layouts
  • Audio output
  • EMC approved

genisys™ TouchScreen brings greatly enhanced functionality to Ring Carnation’s high quality range of keypads.
Our flagship keypad features up to 8 bespoke digital layers along with six physical backup keys, fully configured to customer preferences. TouchScreen may be set up to provide various features including battery voltage and temperature display (with optional sensor cables), and clock/timer functions. Bespoke graphics can be created to visualise monitoring of onboard vehicle features, and logos can be integrated to enhance customer branding. An integrated speaker provides audible notification of warnings and key press feedback.
Utilising the Windows CE platform, the possibilities for features which can be incorporated into the new genisys™ TouchScreens are as wide as our customers’ vehicle control requirements.
Just like our membrane keypads, TouchScreens connect to the genisys™ system via CAT5 Cross-over cables*. In the unlikely event of a digital display/key issue, the six hard keys will remain operational, ensuring that critical functions can always be operated.

*The only additional wiring required for genisys™ TouchScreen installation is twin power cables/2-way mini fit connector.
