GRAPHICAL

BATTERY ANALYSER

Complete health check for your engine system

12V/24V graphical battery analyser
Carry out a battery health check on Flooded, AGM or EFB batteries rated up 2000CCA
Detect battery charging problems by checking alternator voltages fall within normal operating ranges
Check for potential starting problems by measuring battery voltage drop during engine cranking
Test earth connections between battery, engine and chassis are in good condition

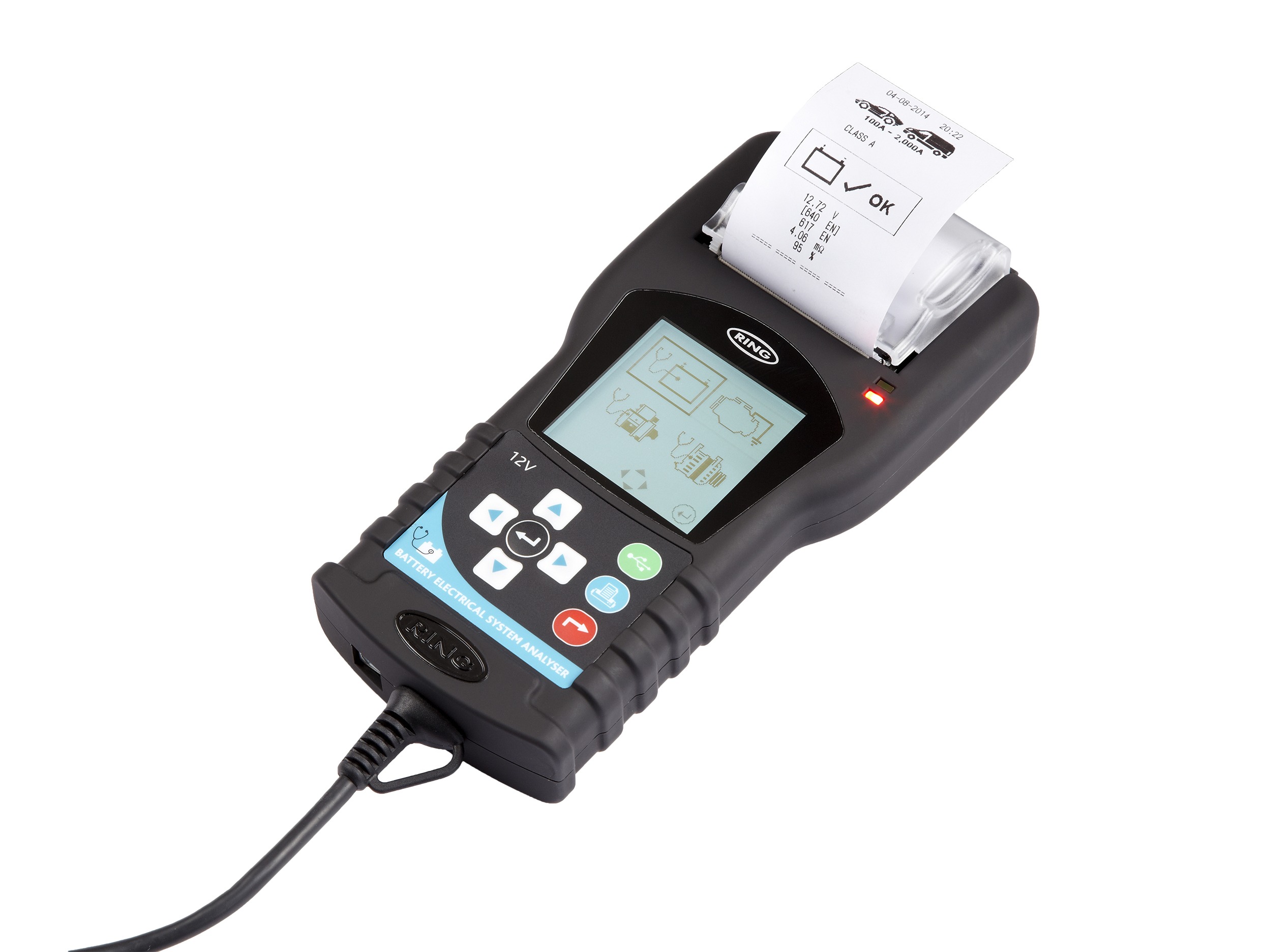

Integrated thermal printer - instantly print test results including garage name and address details
Memory storage for up to 80 results, allowing rapid multi-vehicle testing
PC software included for download of results and full report printing
A handy voltmeter feature checks for flat batteries before each test

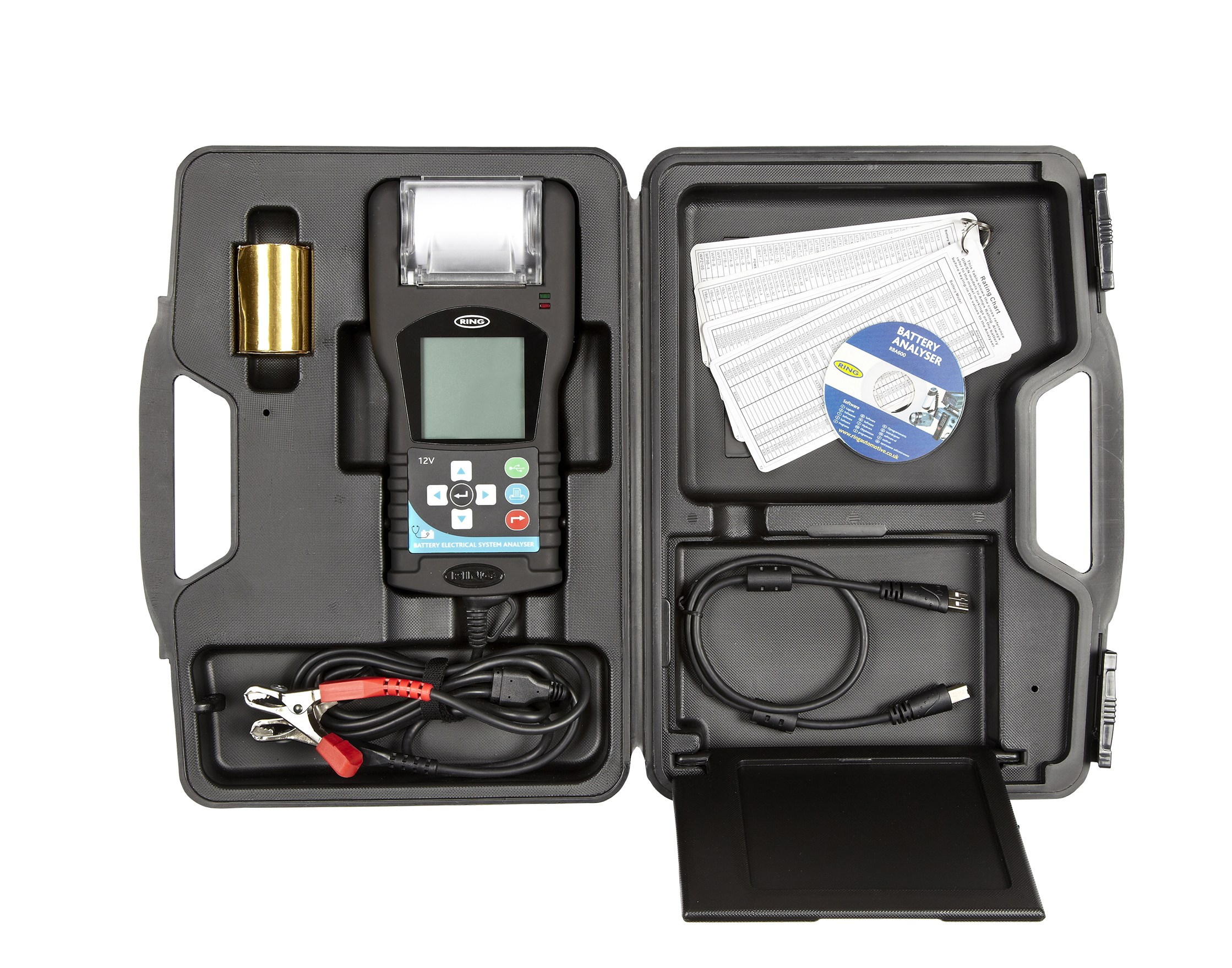

Comes with robust storage case

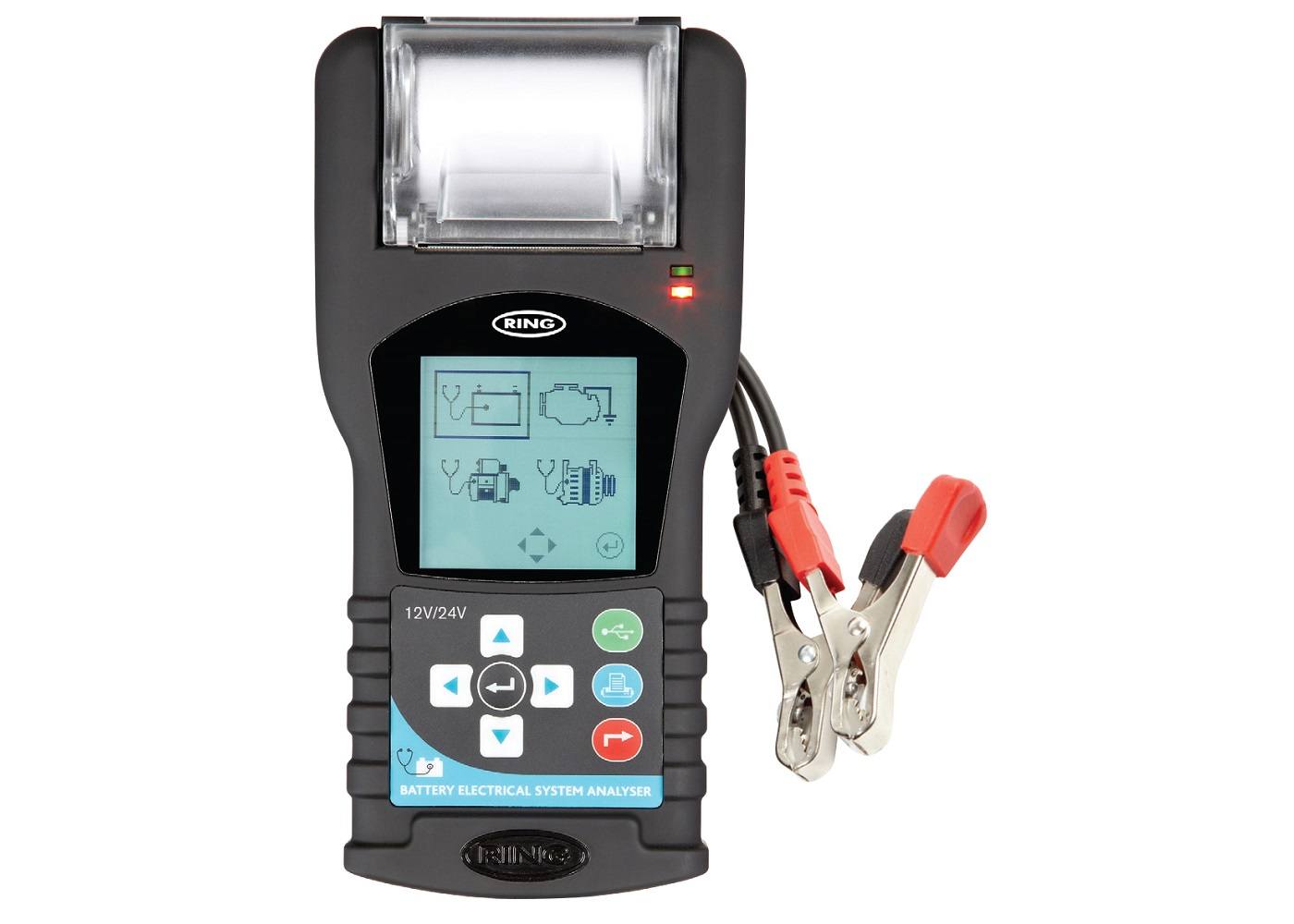

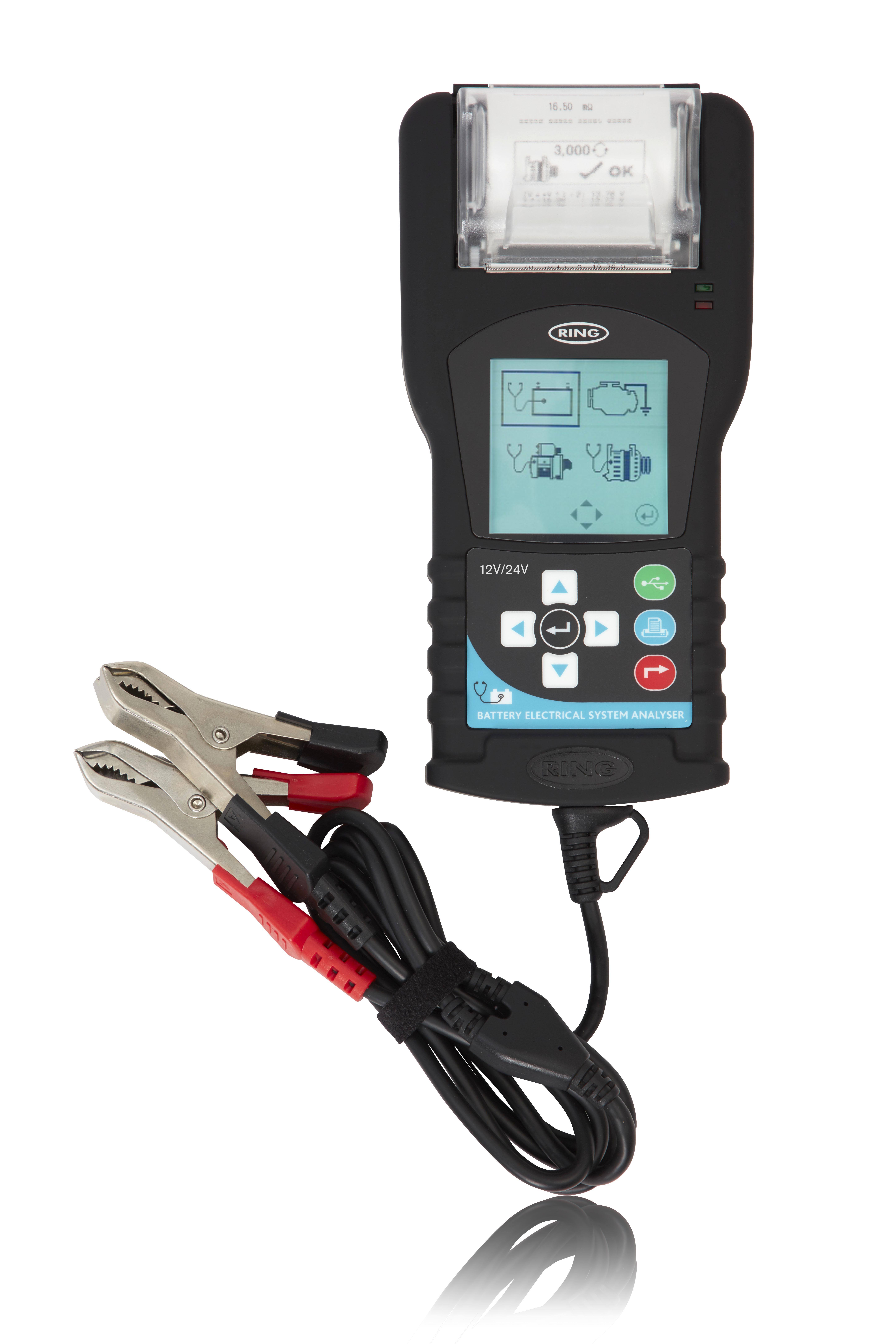

The RBAG750 Graphical Battery Analyser can provide a complete health check of the battery and electrical systems of a 12V and 24V vehicle, be it a motorcycle, car or truck.

This multi-function unit can test and analyse the battery, alternator, starter and vehicle earth via its intuitive graphical interface. Results can be printed using the built-in thermal printer, or downloaded to a computer through a USB.

RBAG750 Set Up RBAG750 Software

For Ring's full range of workshop battery maintenance tools, click here

Spec	RBAG750
Description	Graphical Battery Analyser
Test Method	Load free Microprocessor controlled
Voltage	12/24V
Battery Types	12V SLI, AGM, EFB
Display Type	Graphic LCD with backlight
Battery CCA Ranges	40-600 (low range) 100-2000 (high range)
Battery Standards	CCA/SAE, DIN, EN1, EN2, IEC, JIS, CA/MCA
Battery Test	Yes
AlternatorTest	Yes
Diode Ripple Test	Yes
Starter Test	Yes
Earth Test	Yes
Data Downloading & Printing	Yes
Integral Printer	Yes
Approvals	CE
Product Dimensions (mm)	461 x 90 x 352
Weight (kg)	1.766
