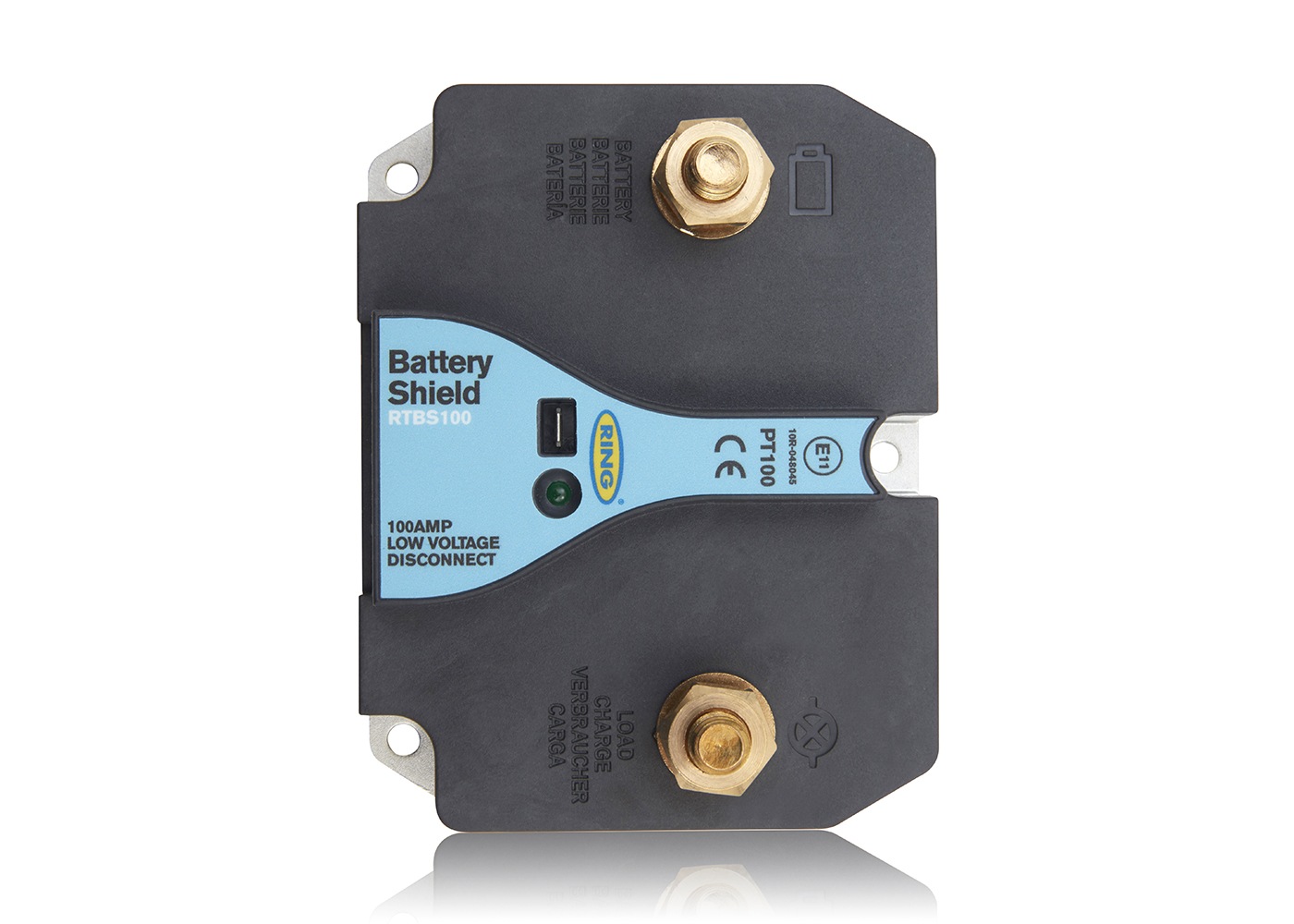

RTBS100
RTBS100
RTBS100

100A

BATTERY SHIELD

  • 10 x Programmable settings
  • Ease of programme change
  • Auto mode selection (12V/24V)
  • Connection for remote alarm
  • Switch connection remote on/off
  • IP65
  • Built in heat sink
  • Supplied with installation kit and instructions

The Ring Battery Shield is the ideal solution to prevent flat batteries and battery failure by over discharging. Suitable for extra power for accessories up to 100A.

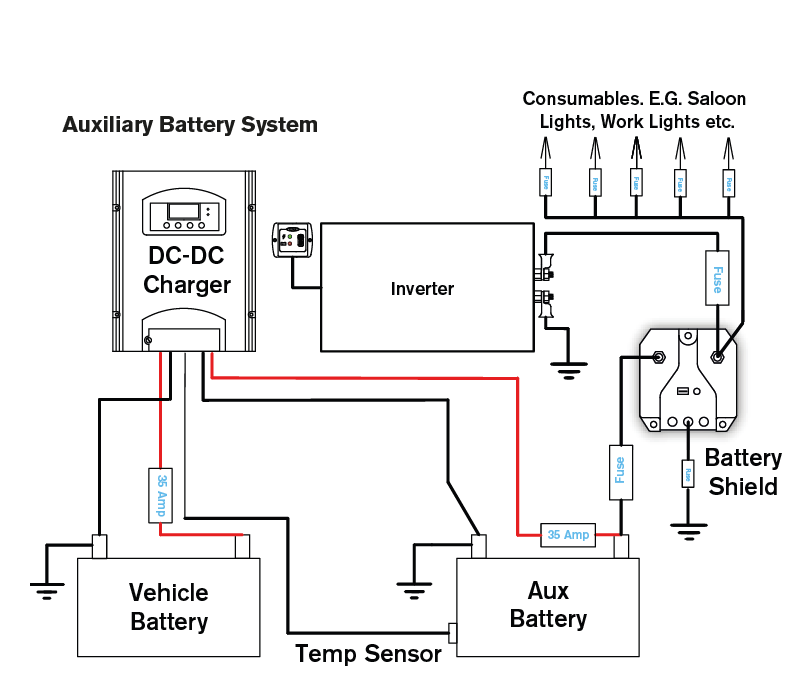

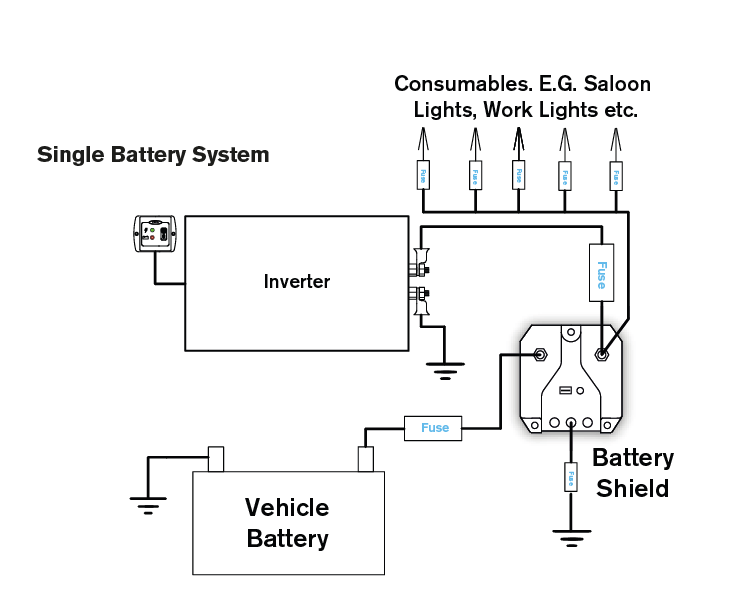

Whether the vehicle is fitted solely with the chassis battery, or is fitted with a secondary auxiliary battery, the battery shield is a crucial piece of protective equipment that prevents flat batteries and engine start failure by interrupting power supply to ancillary equipment.

Spec
Description 100A Battery Shield
Voltage 12/24V
Wattage -
Amps 23
IP Rating IP65
Product Dimensions (mm) 96 x 124 x 53
Weight (kg) 0.614
