DUAL INPUT IN VEHICLE

DC-DC BATTERY CHARGERS

12V 50A

DC-DC battery charger
Lithium ready for LiFePO4 batteries
Converts power from a vehicle's main battery into a multistage output for charging an auxiliary ba
Multi-stage charging helps maximise auxiliary battery life
Proven to charge an auxiliary battery to 100% state of charge
Programmable for most battery types
Increases run time of loads
Dual battery isolation as well as fault detection, to ensure complete protection of your batteries

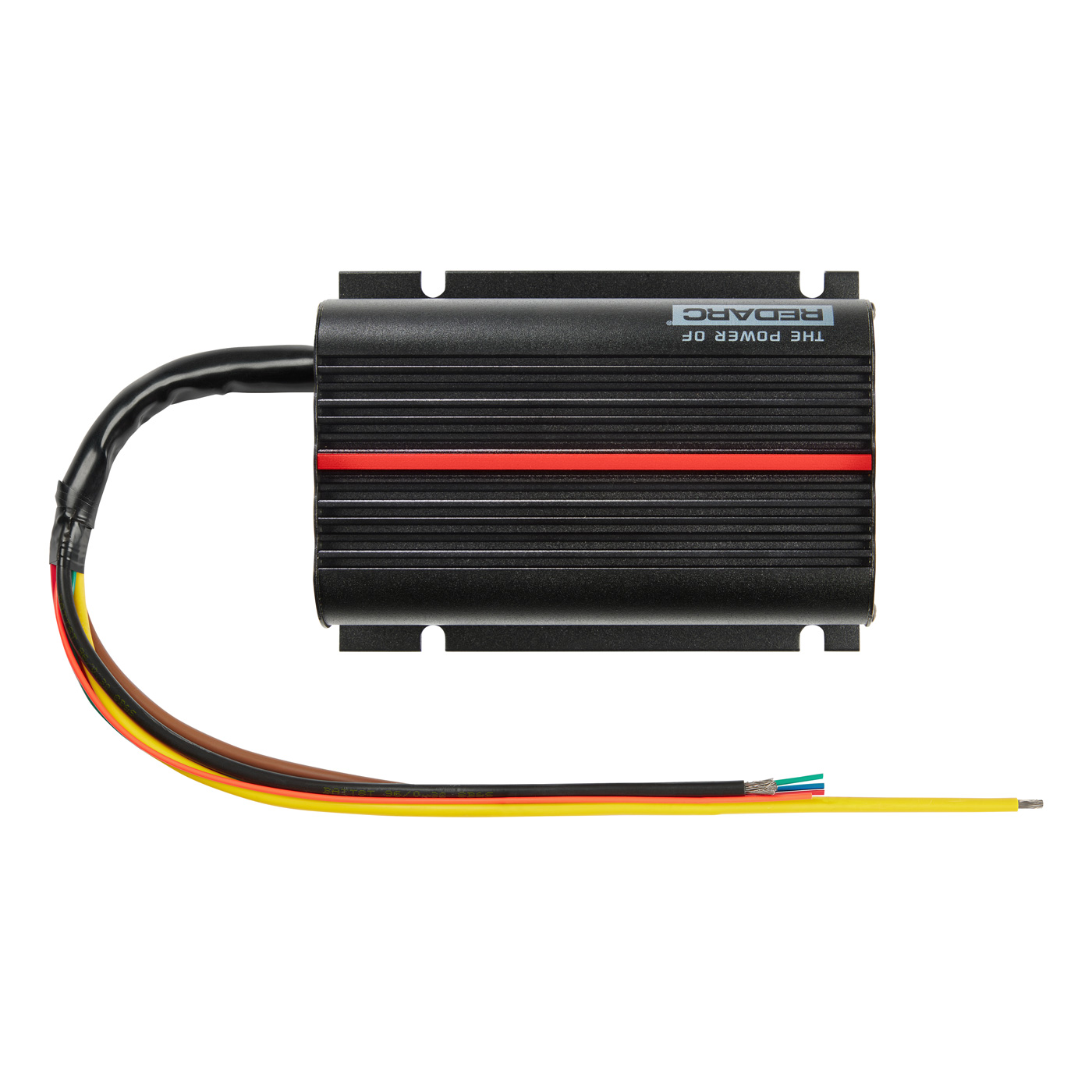

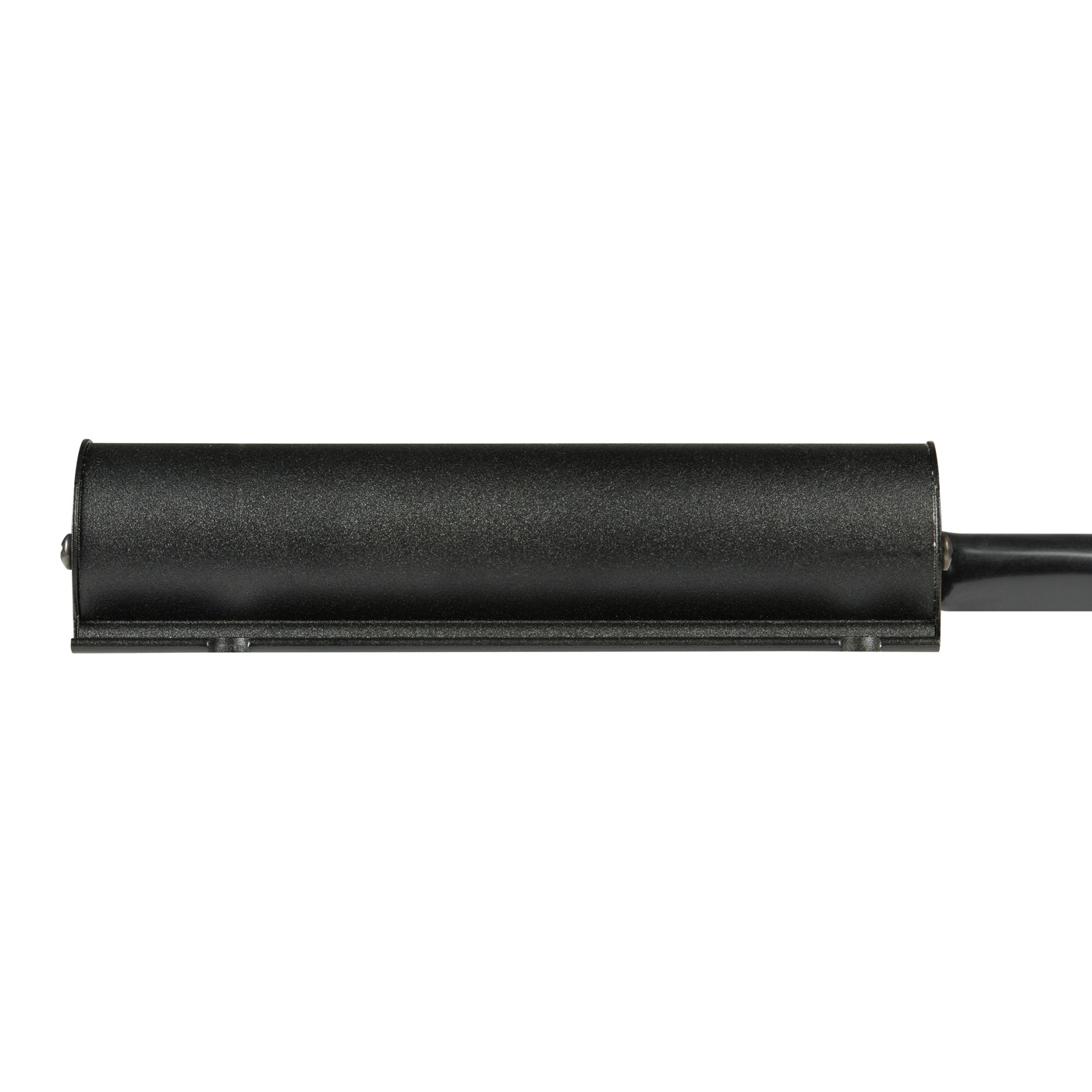

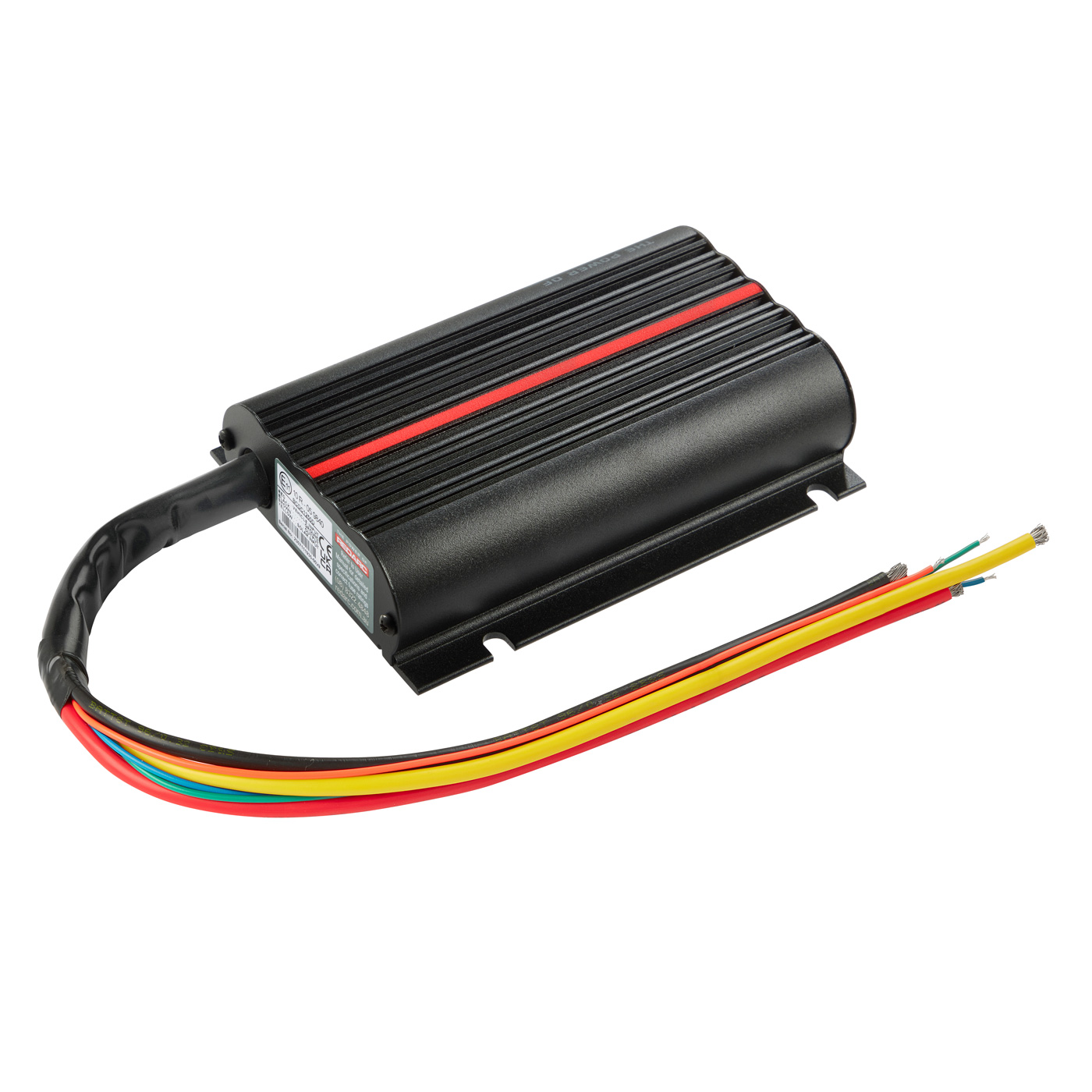

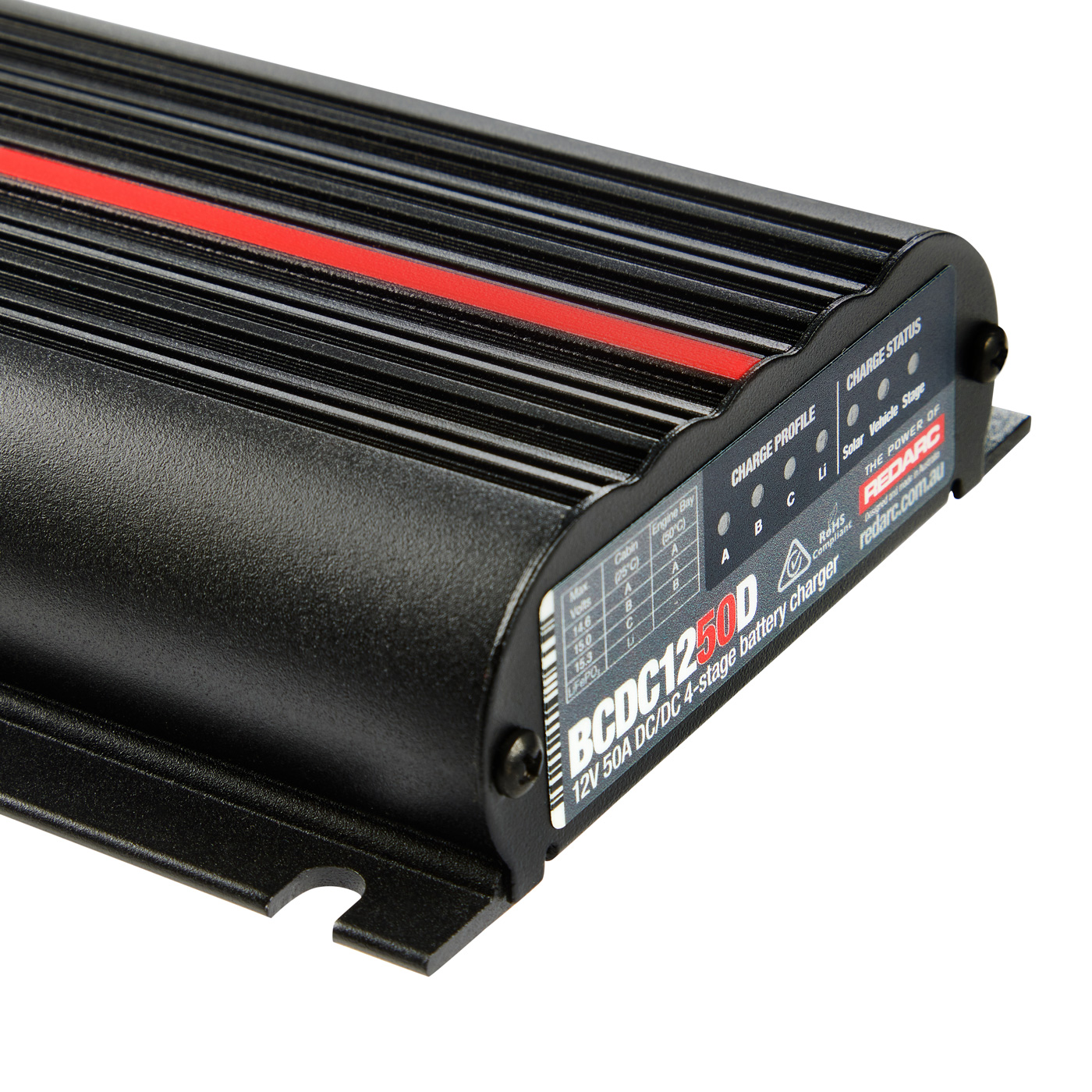

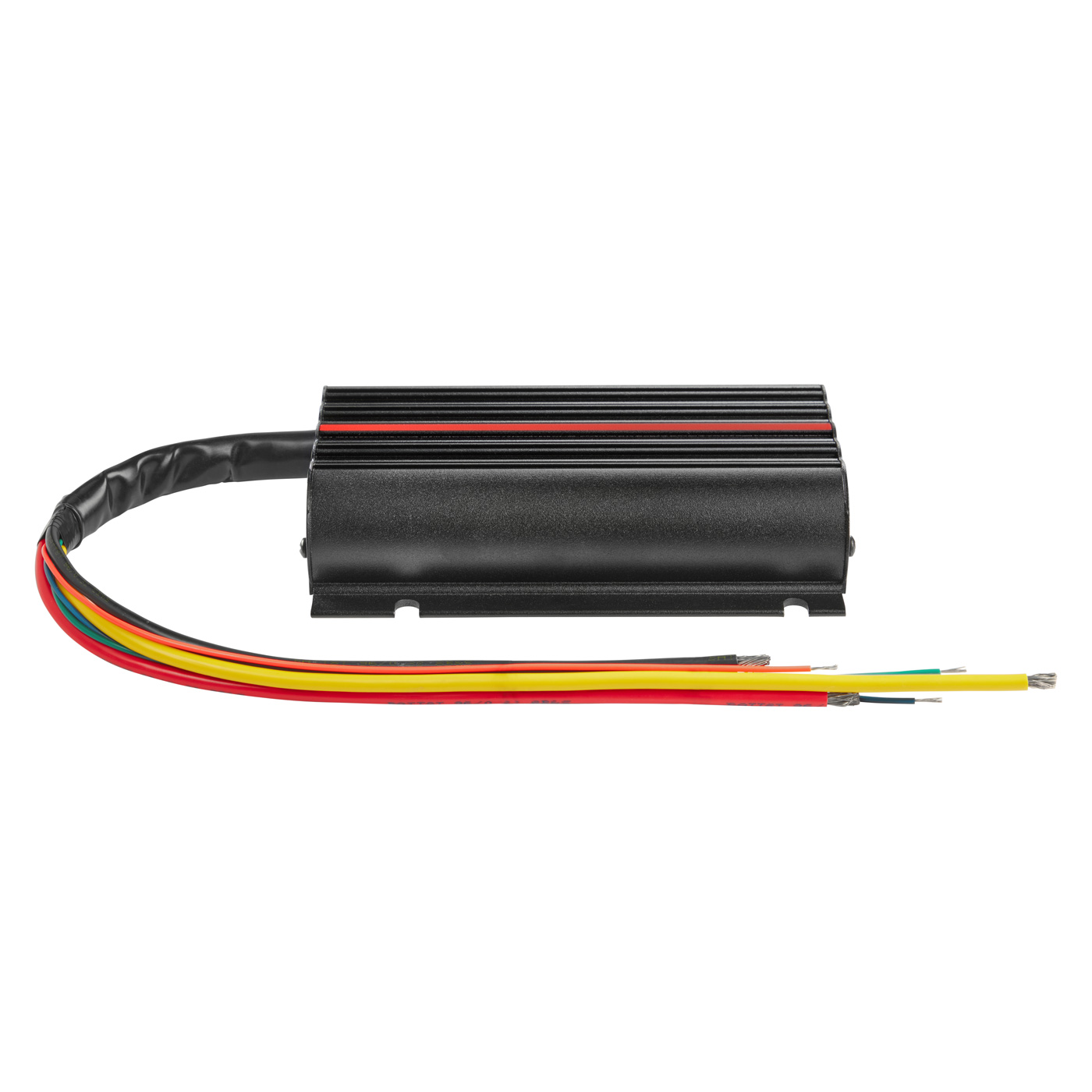

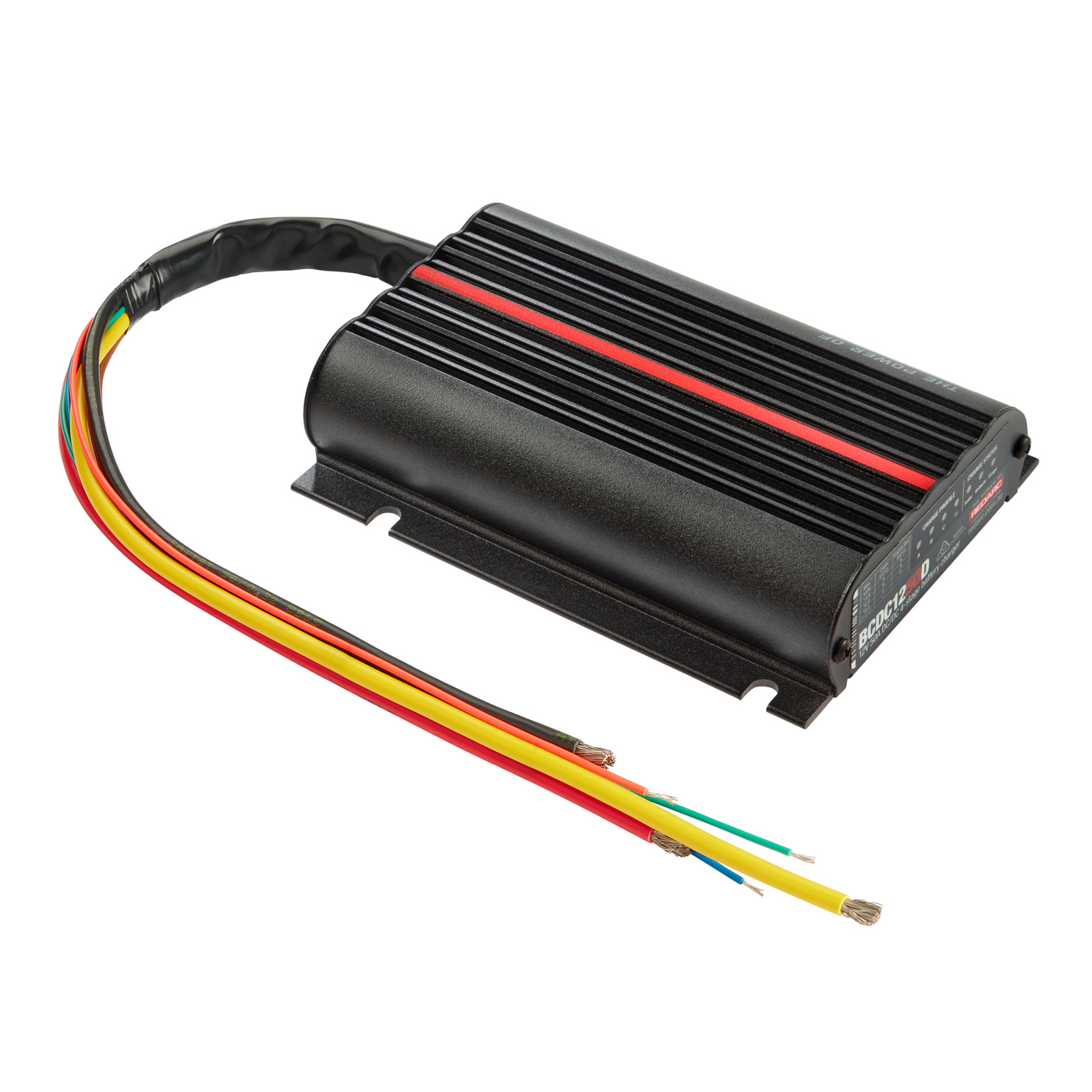

The RSCDC1225 & RSCDC1250 are dual input in vehicle DC-DC battery chargers featuring technology designed to charge the auxiliary batteries to 100%, regardless of their type or size.
They feature a Maximum Power Point Tracking (MPPT) solar regulator, allowing the unit to always take as much power from the unregulated Solar input as it can before supplementing that power, up to the maximum rated output, from Vehicle power input.
The Dual Input In-vehicle Battery Chargers are suitable for all common types of automotive lead acid batteries and LiFePO4 lithium type batteries.

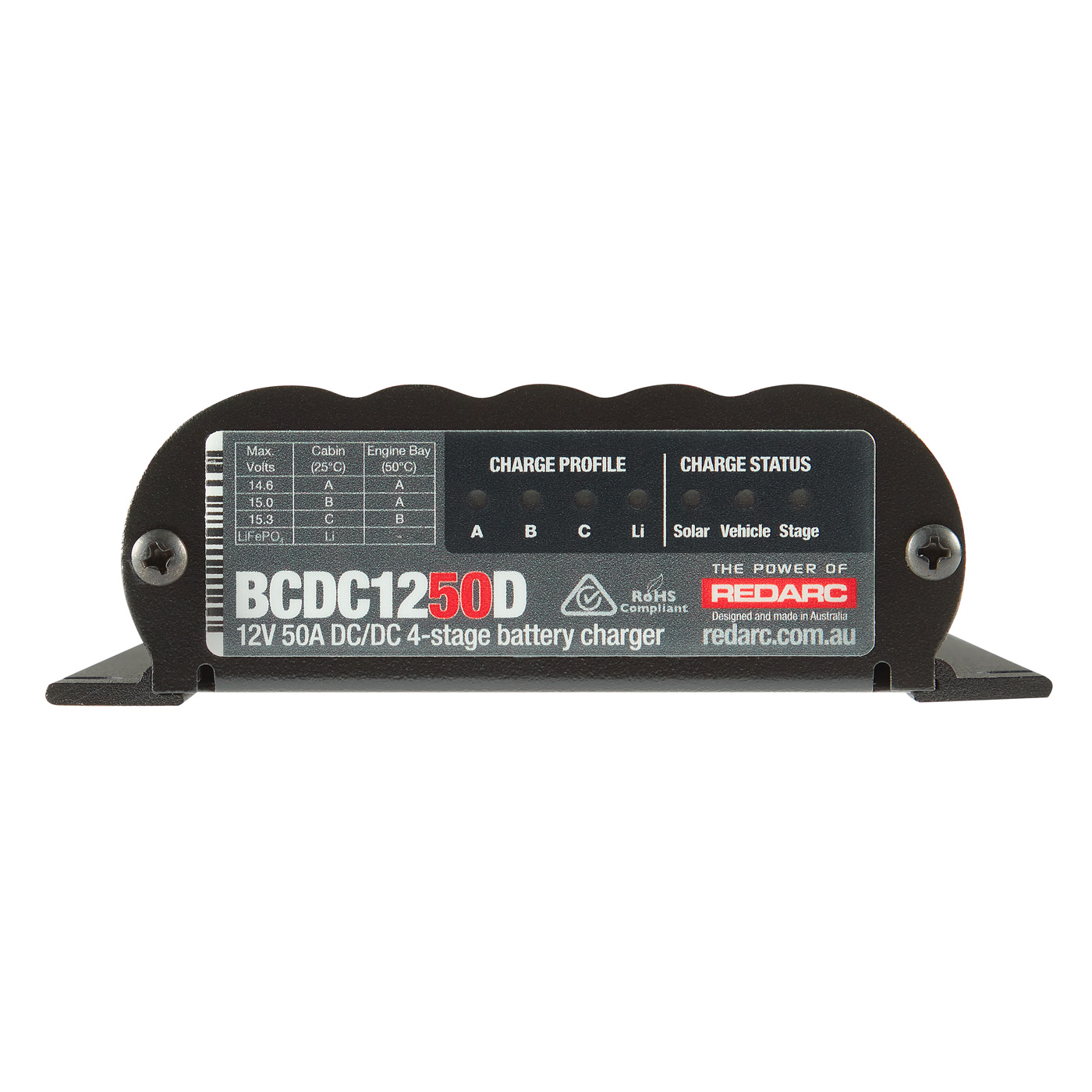

Smart charger that is programmable for most battery types. It has a three-stage charging algorithm, designed to fully charge auxiliary batteries to a proven 100%. Constantly monitoring the vehicle battery input charge to ensure that the auxiliary battery always receives the ideal voltage and current for maximum battery life and performance.
Incorporates a dual battery isolation, as well as fault detection that includes protection against voltage spikes, overheating and reverse polarity connection, to ensure complete protection of the batteries.

Related Products

RSCDC1225

DUAL INPUT IN VEHICLE
DC-DC BATTERY CHARGERS

Spec	RSCDC1250	RSCDC1225
Description	12V 50A SMART BATTERY CHARGER
Continuous Current Rating	50 A
Vehicle Input Fuse Rating	46 A (Not Supplied)
Output Power	750 W
Vehicle Input Voltage Range	9 to 32 V
Solar Input Voltage Range	9 to 32 V (unregulated only)
MPPT	Yes
Output Battery Compatability	Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only
Max Output Voltage	14.6 to 15.3 V 14.5 V Li
Float Voltage	13.3 V 13.6 V Li
No Load Current	<100 mA
Standby Current	<8 mA
Operating Temperature	−15°C to +80°C (Battery Voltage > 10.5 V) 0°C to +80°C (Battery Voltage < 10.5 V) 0°C to +80°C Li
Minimum O/P Battery Volts	0.1 V
Product Dimensions (mm)	165 × 120 × 37
Weight (kg)	1
Approvals	RCM, E-mark, CE

12V 25A DC-DC SMARTCHARGER

25 A

40 A (Not Supplied)

375 W

9 to 32 V

9 to 32 V (unregulated only)

Yes

Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only

14.6 to 15.3 V 14.5 V Li

13.3 V 13.6 V Li

<100 mA

<8 mA

−15°C to +80°C (Battery Voltage > 10.5 V) 0°C to +80°C (Battery Voltage < 10.5 V) 0°C to +80°C Li

0.1 V

165 × 120 × 37

RCM, E-mark, CE

RSCDC1250
