RRA20
e-reader
Technical details

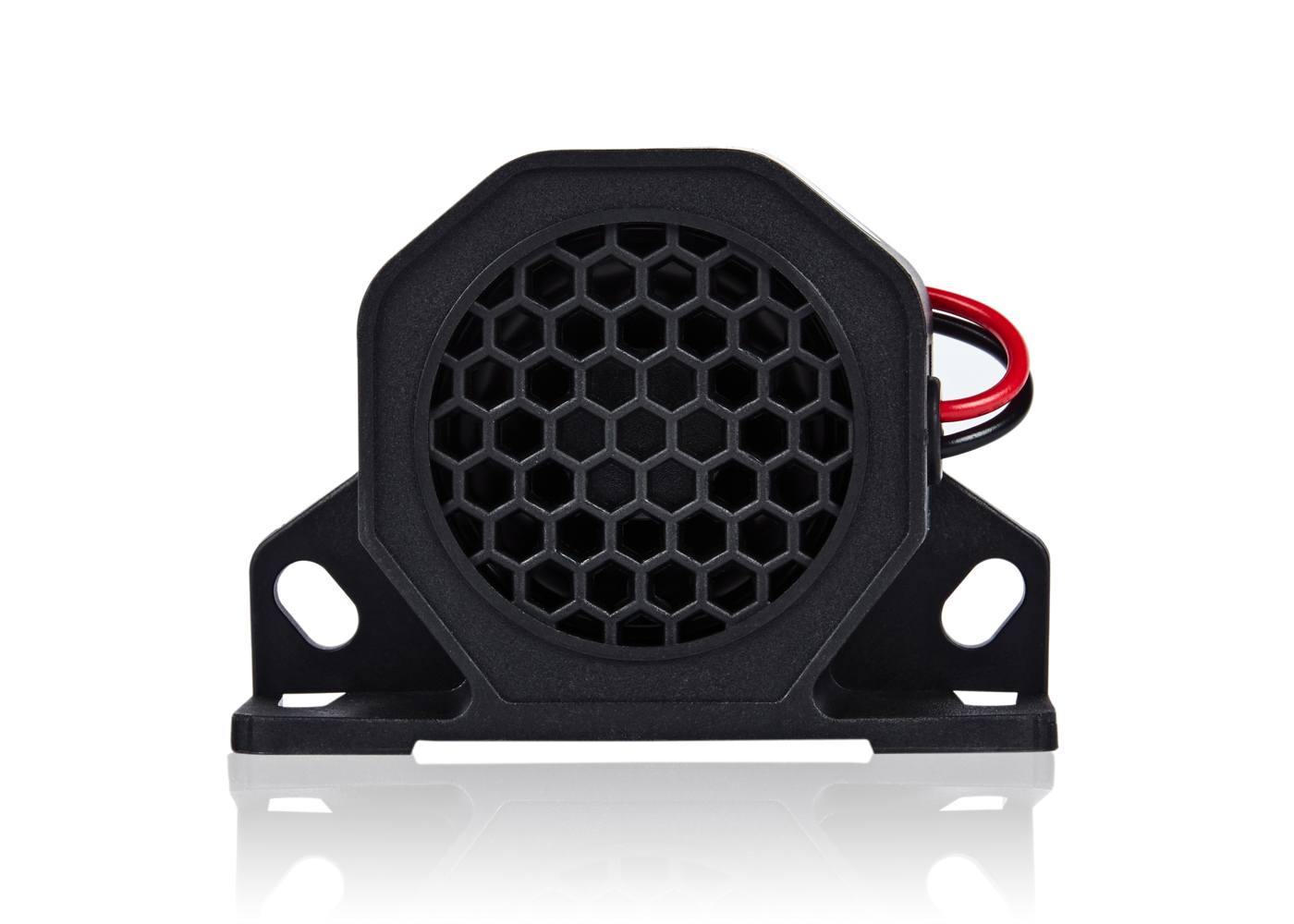

RRA20
COMPACT HEAVY DUTY
REVERSING ALARM
Multi-voltage
Multi voltage reversing alarm
Heavy duty - ideal for commercial use
Suitable for vehicles with voltage between 12V and 80V
Extra loud alarm - 112dB at 1m distance
Fully sealed and waterproof
2 bolt fixing
Over voltage protection
Polarity protection
Compact, heavy duty reversing alarm, with multi-voltage capacity. Suitable for all vehicles with voltage between 12V and 80V. Gives nearby vehicles and pedestrians warning that the vehicle is reversing, improving safety. Small design makes it unobtrusive. Extra loud alarm - volume 112dB at 1m. Fully sealed and waterproof. Includes over voltage and reverse polarity protection. Double bolt fixing. Ideal for commercial use.
Related
Products
RMB12
12V MINI BUZZER
REVERSING ALARM
12V DC
RMB24
24V MINI BUZZER
REVERSING ALARM
24V DC
RRA100
HEAVY DUTY
REVERSING ALARM
With Silent Night Function
12V/24V DC
Spec
RRA20
RMB12
RMB24
RRA100
Description
Compact Heavy Duty Reversing Alarm
Voltage
12-80V DC
Watts
<4.48W / 28W
Amps
0.35A
Volume
112dB at 1m
Night Silent Function
No
Fixing
2 bolt fixing
Approvals
CE
IP Rating
IP66
Product Dimensions (mm)
72 x 99 x 40
Weight (kg)
0.266
Mini Reversing Alarm
12V
<0.48W
0.4A
85dB at 1m
No
Single Bolt Fixing
CE
IP54
34 x 40 x 46
0.028
Mini Reversing Alarm
24V
<0.72W
0.3A
85dB at 1m
No
Single Bolt Fixing
CE
IP54
34 x 40 x 52
0.026
Heavy Duty Reversing Alarm
12/24V DC
2.4W / 4.8W
0.2A
96db at 1m
Yes
Single bolt
CE
IP65
109 x 72 x 72
0.25
