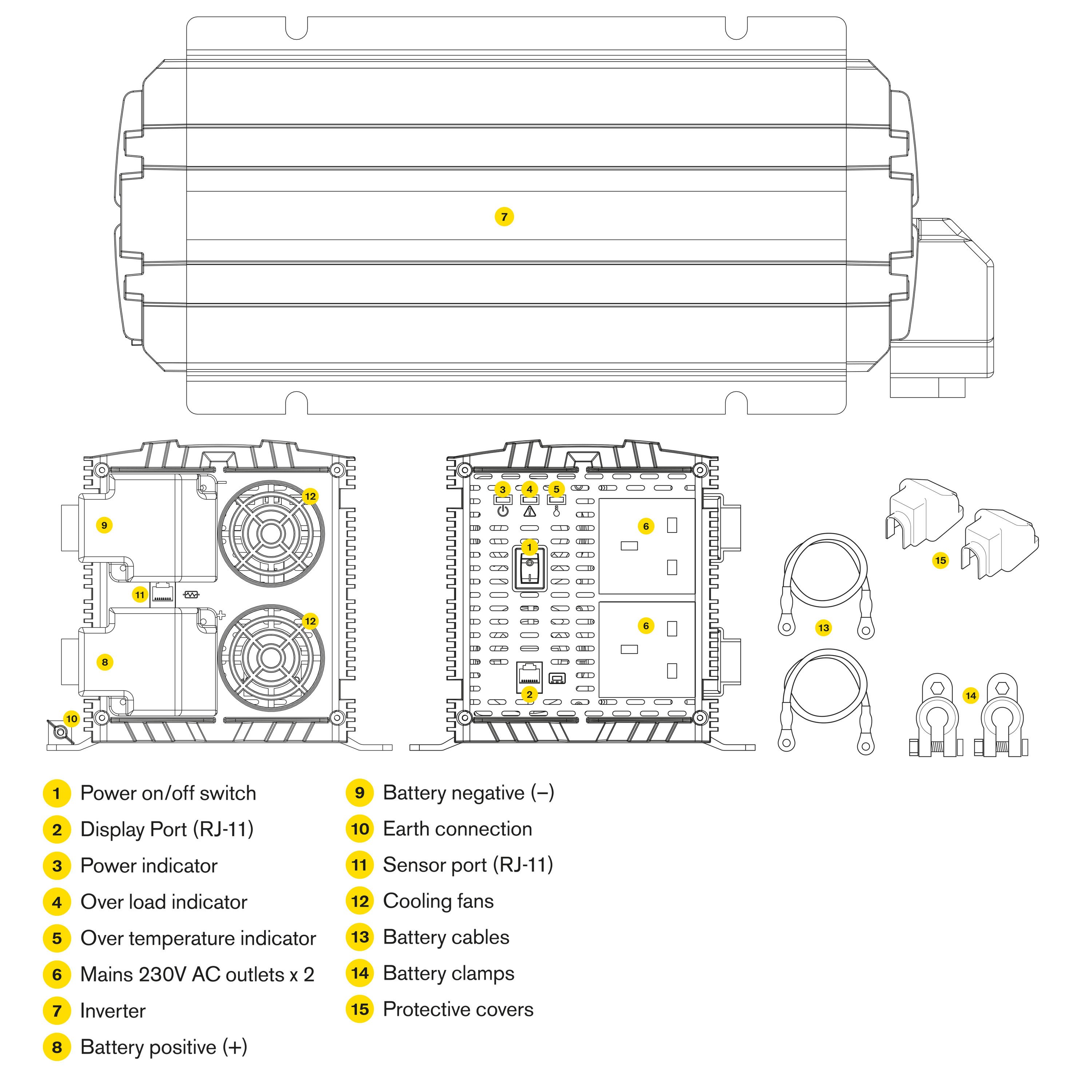

RINVMA20 digram
Pro inverters RINVMA20
Pro inverters RINVMA20
Pro inverters RINVMA20
RINVMA20 digram

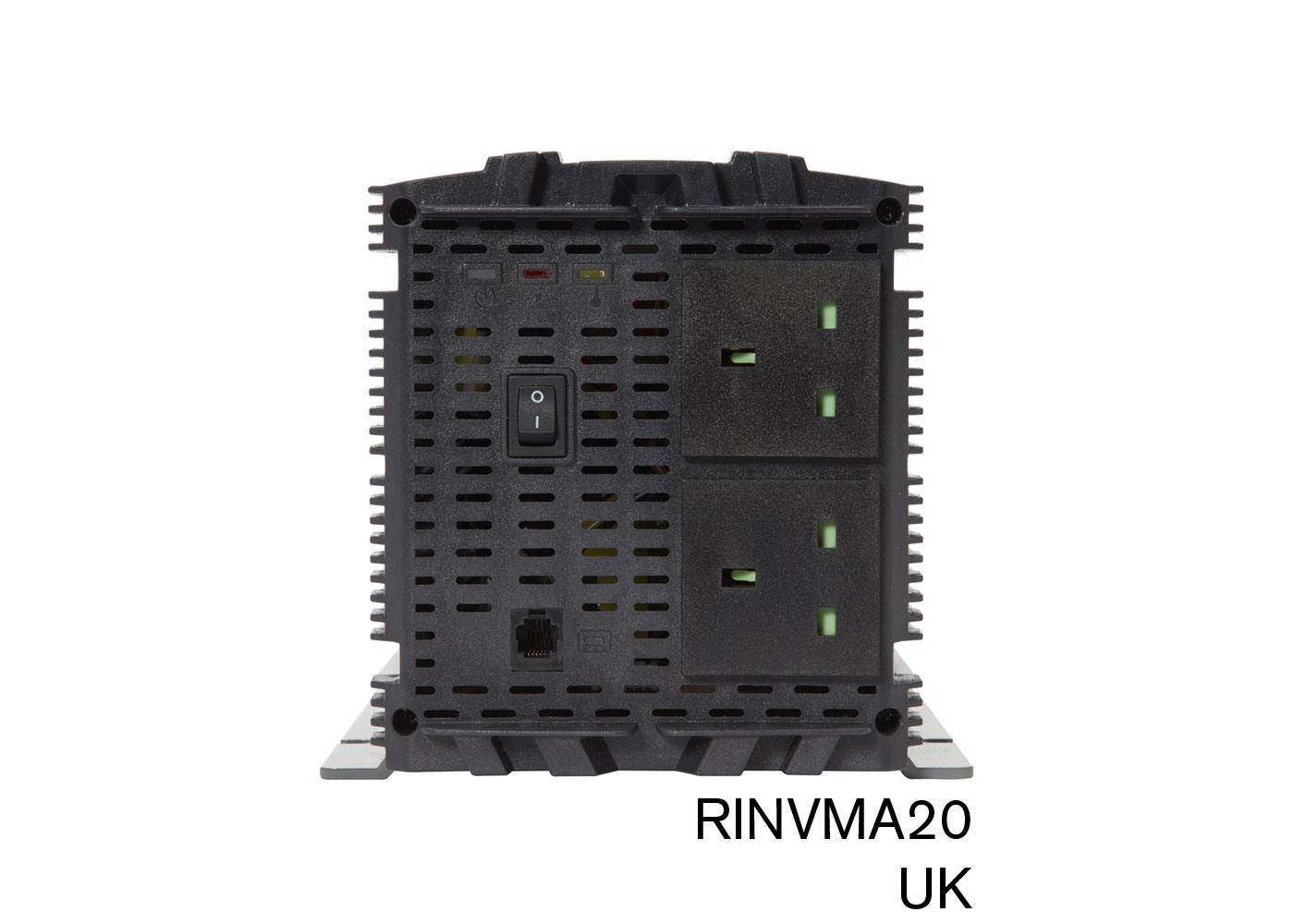

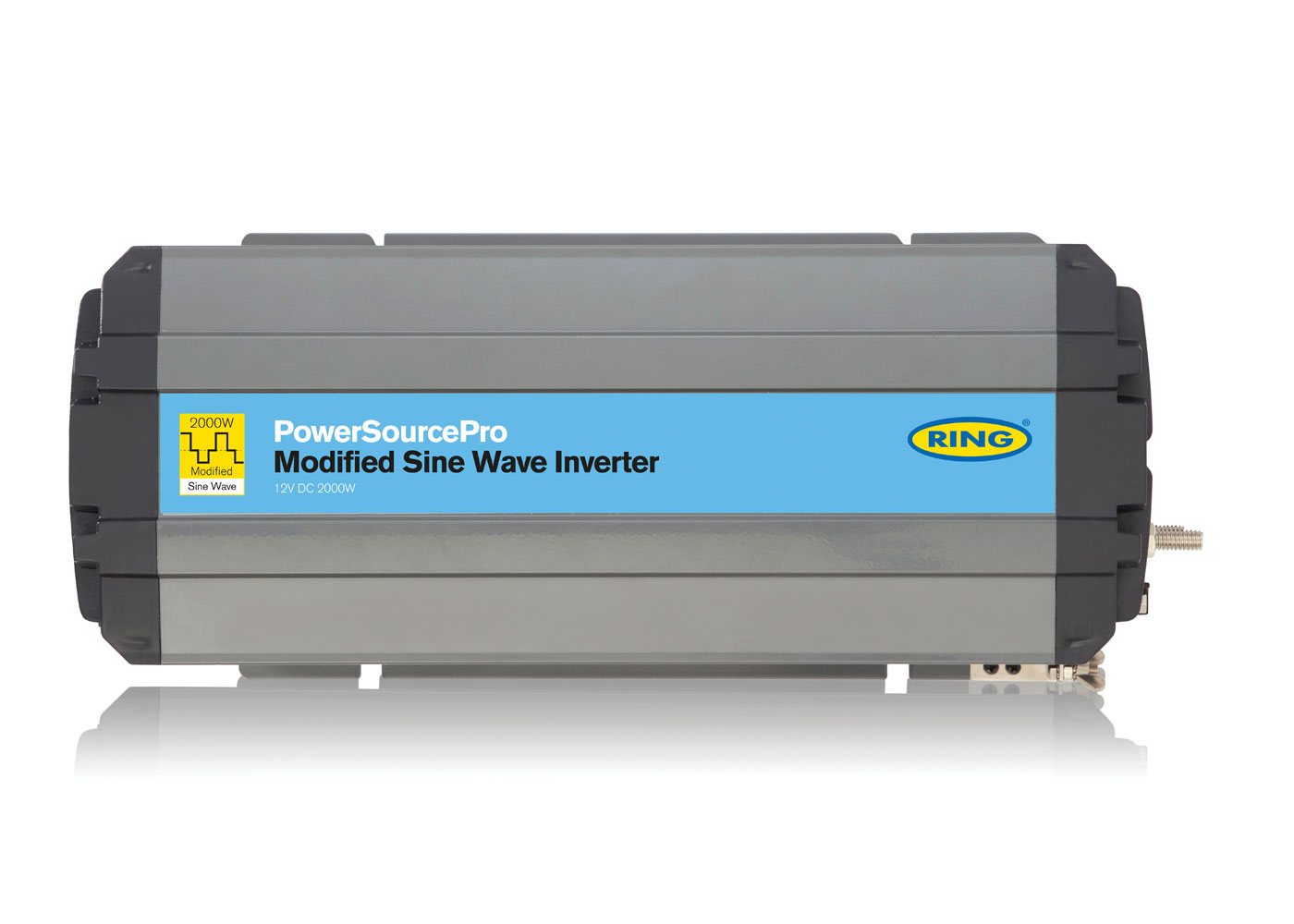

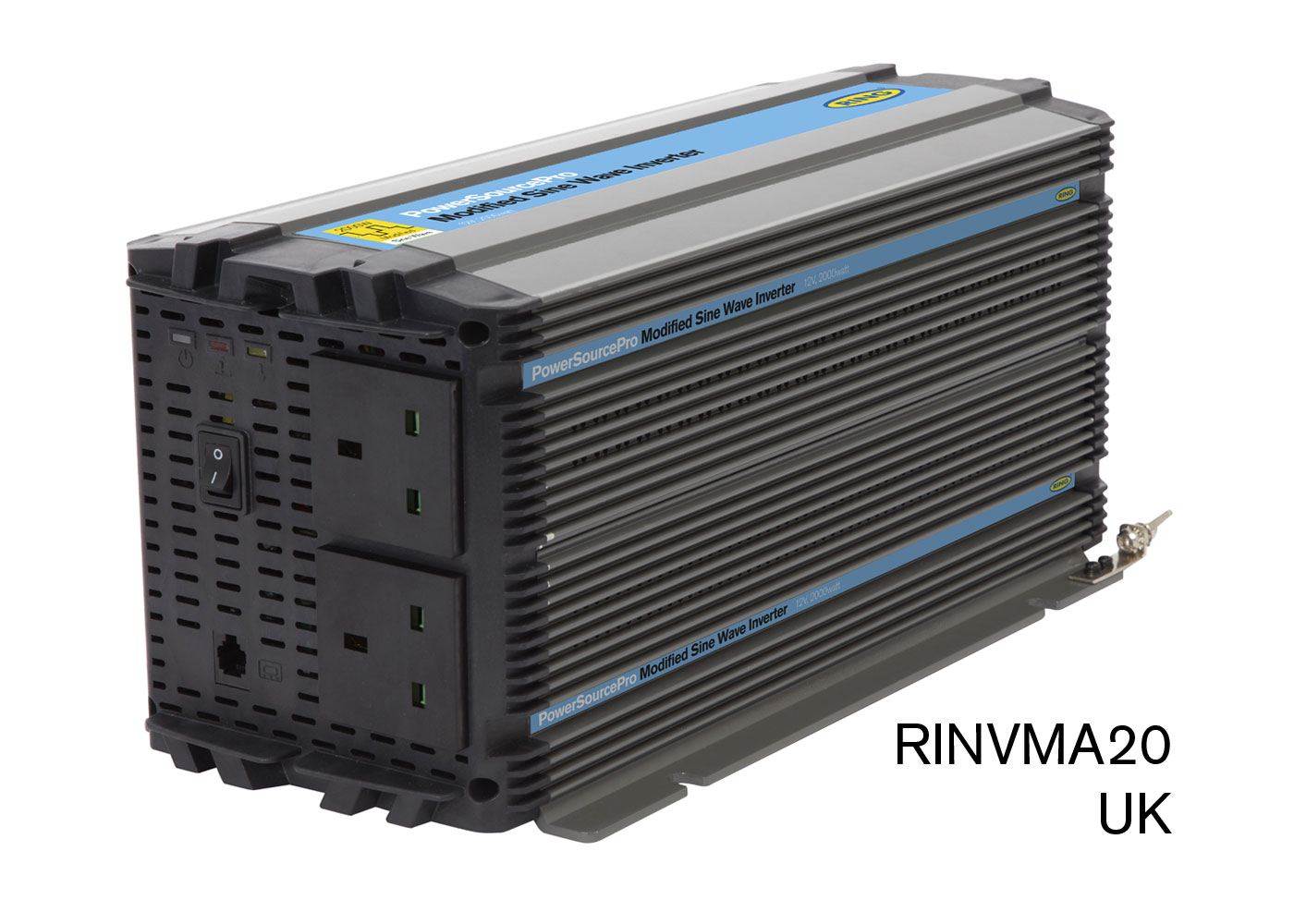

RINVMA20

POWERSOURCEPRO

12V MODIFIED SINE WAVE INVERTER

2000W

  • 2000 watt modified sine wave output
  • Operating mode and fault indicators
  • Up to 12 hours continuous use
  • Compact heavy duty extruded casing
  • USB charging socket for mobile devices
  • Optional multi-function LCD display (part number RINVLCD)
  • Optional current sensor module (part number RINVCM)
  • Low power alarm and shut down to prevent inverter draining the battery
  • Suitable for 12V vehicles

Professional 2000 watt modified sine wave inverter, converts 12 volt battery power into useful 230 volt AC mains power - ideal when working remotely where no mains power is available. Well suited to demanding applications, with rugged extruded metal casing, heavy duty input cables and clamps for direct connection to vehicle batteries. Modified sine wave is suitable for powering the majority of equipment such as mains power tools, fridges and compressors.

Highly efficient, running at 89% efficiency at 75% load, and with minimal footprint to reduce installation space. Fully protected against overload, over temperature and low/high voltages. Additional LCD screen is also available, to provide power consumption information – essential for effective power management when working remotely. Also available is the RINVCM Current Sensor, which monitors the inverter's battery current, allowing indication of time remaining before battery is flat to help improve power management.

PowerSourcePro inverters are tested and certified to the relevant EMC and LVD Directives.

For Ring's full range of commercial inverters and accessories, click here

Spec
Description 2000W Modified Sine Wave Inverter
Input Voltage Range 10V-16V (12V nom)
Input Current 196A (max)
Efficiency @ 75% load 89%
No Load Current Draw <0.8A
Output Voltage 230V AC ±10%
Output Frequency 50Hz ±0.05%
Output Waveform Modified Sine Wave
Cont Power Rating (up to 12 hours) 2000W
Peak Power Rating (up to 200ms) 4000W
Power Saving Mode No
Power Saving Mode Current n/a
Low Battery Alarm 10.5V ±1V
Low Battery Shutdown 10.0V ±1V
Thermal Protection 60° ±10°C
AC Mains Outlets UK: 2 x 13A 3-pin UK Euro: 2 x 10A 2-pin Shuko
USB Port No
LCD Display Panel No
Display Panel Port Yes
Current Sensor Port Yes
Comms Port No
Input Cable Gauge / Length 38mm² / 950mm
Approvals CE-LVD / CE-EMC / RoHS / WEEE
RCD Trip Current N/A
Remote Control Port No
Product Dimensions (mm) 161 x 172 x 387
Weight (kg) 5.572
Case Quantity 2 x 1
