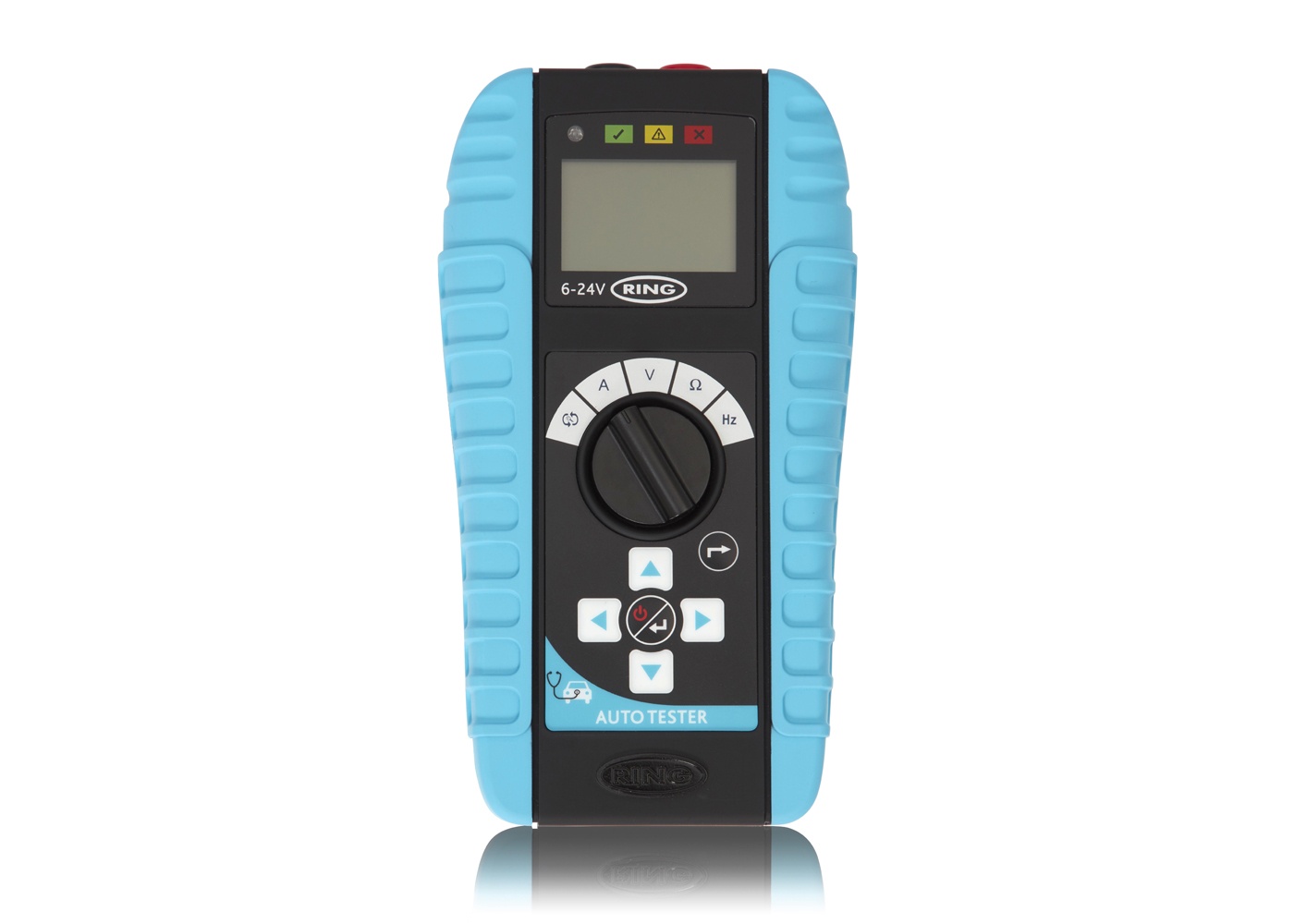

RMM500

MULTI-FUNCTION

AUTOMOTIVE TESTER

With in-line testing

  • Rapid current testing up to 80A without removing fuses

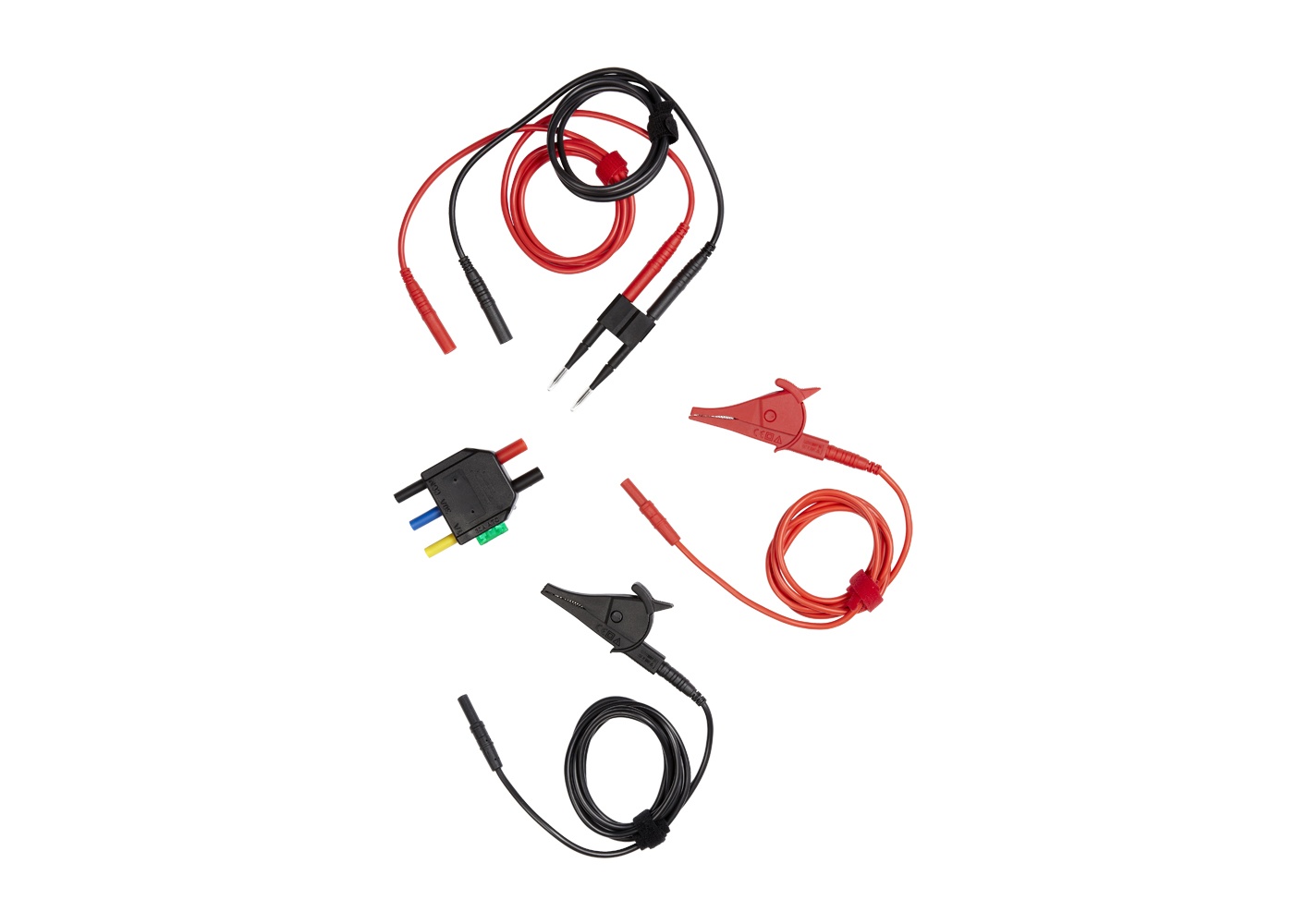

  • Current adapter for in-line current testing
  • Auto ranging 6/12/24V battery testing with traffic light LED result
  • 12/24V starter test checks battery during engine cranking
  • Normal and Smart 12/24V alternator test for checking vehicle charging system
  • Frequency and duty cycle settings aid testing of sensors
  • Continuity and resistance modes for locating wiring faults

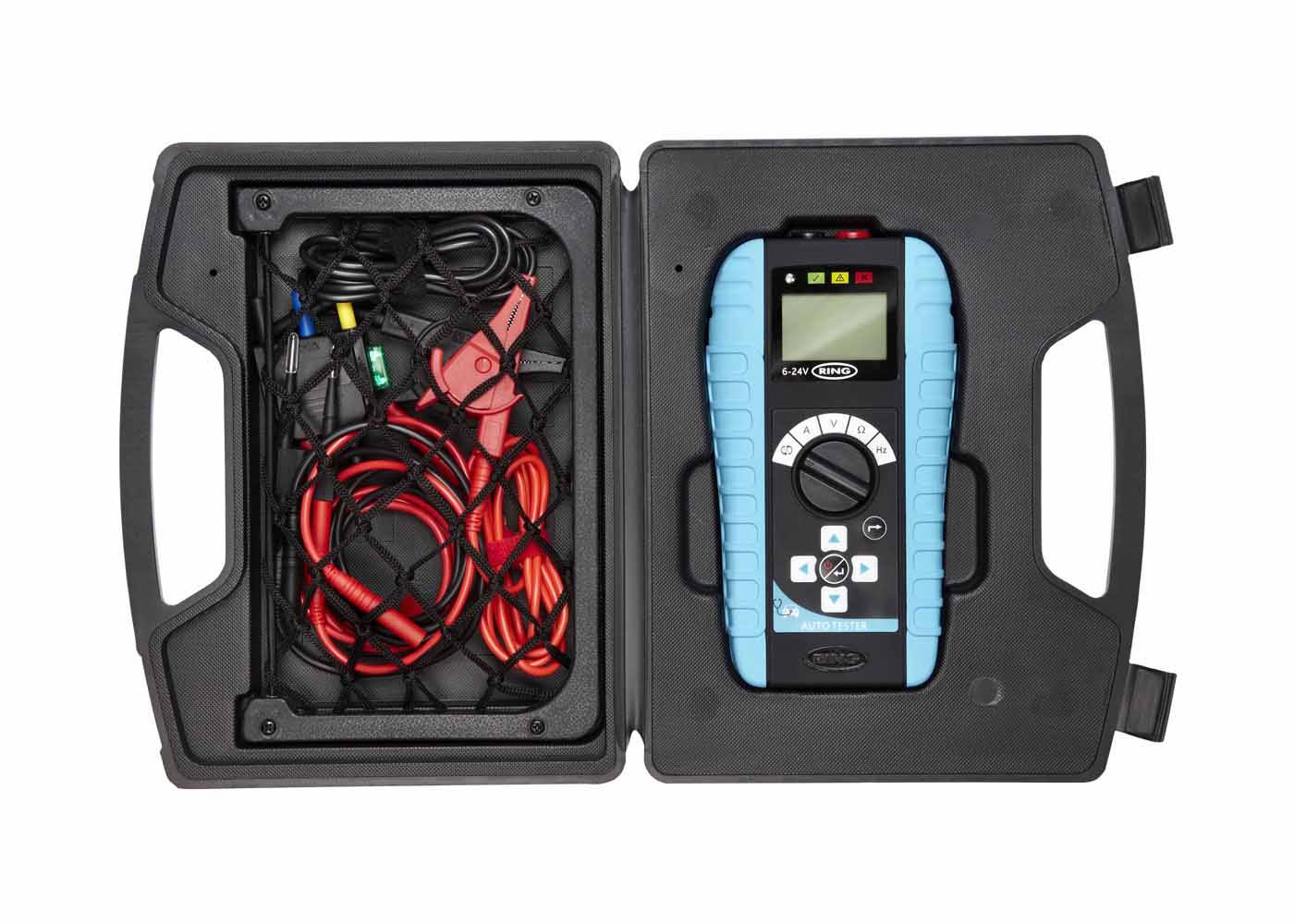

  • Robust storage case

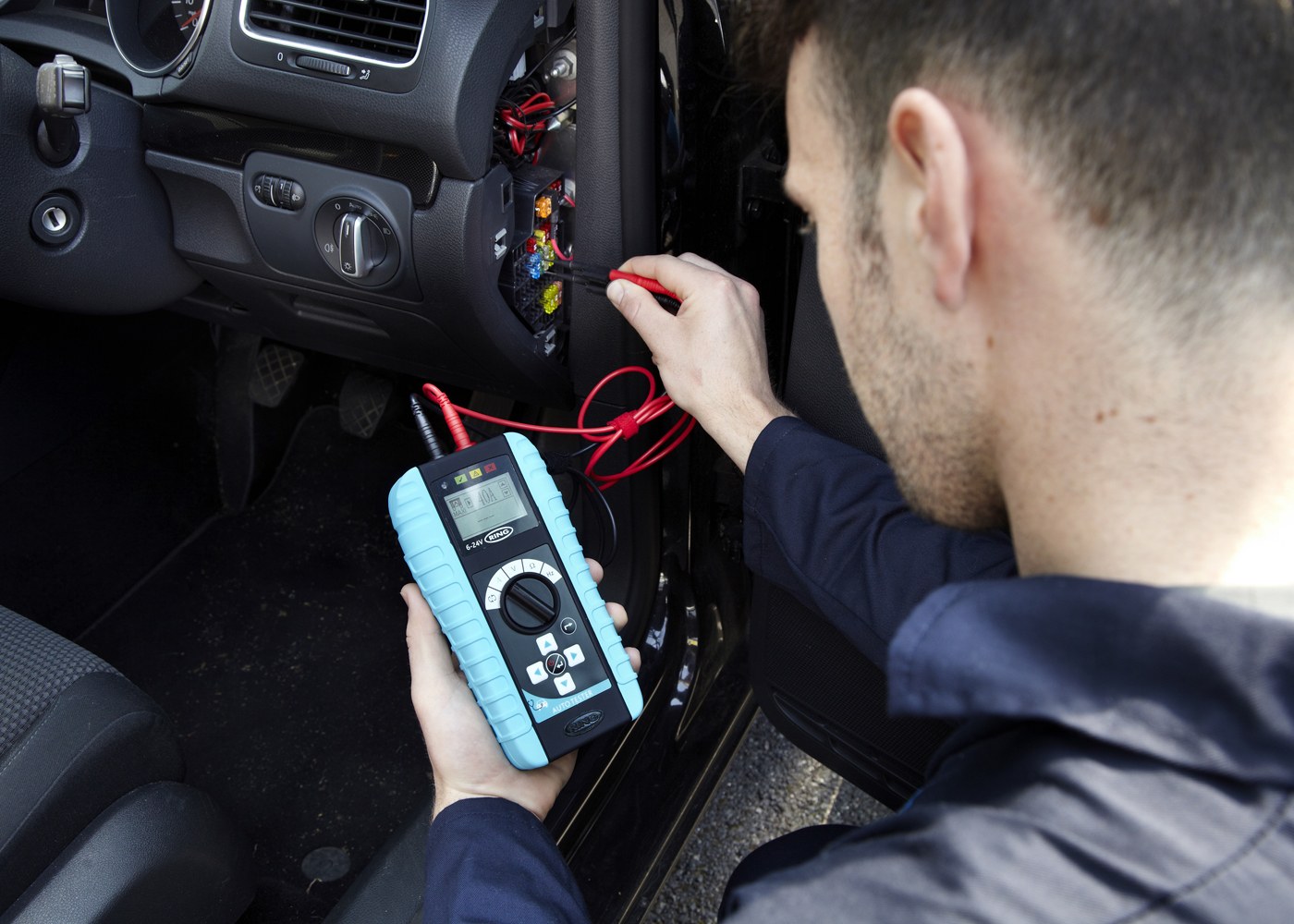

Multi-function automotive tester, designed specifically to find electrical automotive faults. The RMM500 only has settings relevant for automotive use. The innovative current test mode allows the technician to take amp readings directly at the fuse box without removing the fuses, saving time for garages. It features a voltage check, with a traffic light result indicator, giving an instant and easy-to-read assessment of the battery charge levels. The multi-function tester assesses circuit voltages, provides early indication of alternator or starter motor issues, quickly finds breaks in cables and faulty connections, can test operation of fuel injectors, check faulty sensors and more. Suitable for 6V, 12V and 24V vehicles, and comes with protective case, for safe and tidy storage.

For Ring's full range of professional battery tools, click here

Spec
Description Multi-Function Automotive Tester
Voltage Test 6/12/24V
Starter Test 12/24V
Alternator Test 12/24V
Voltage Range 0 - 50V DC ±2%
Current (Parallel) 0 - 80A ±3% 3A - 30A (Mini fuse) 3A - 40A (Standard fuse) 20A - 80A (Maxi fuse)
Current (In-line) 1 - 999mA ±1% (Low range) 1 - 30A ±2% (High range)
Resistance 0 - 1MΩ ±2%
Frequency 1Hz - 20KHz ±1Hz
Continuity 0 - 500Ω
WorkingTemp 0 - 50°C
Batteries 3 x AA (not included)
Product Dimensions (mm) 262 x 350 x 95
Weight (kg) 1.608
Case Quantity 8 x 1
