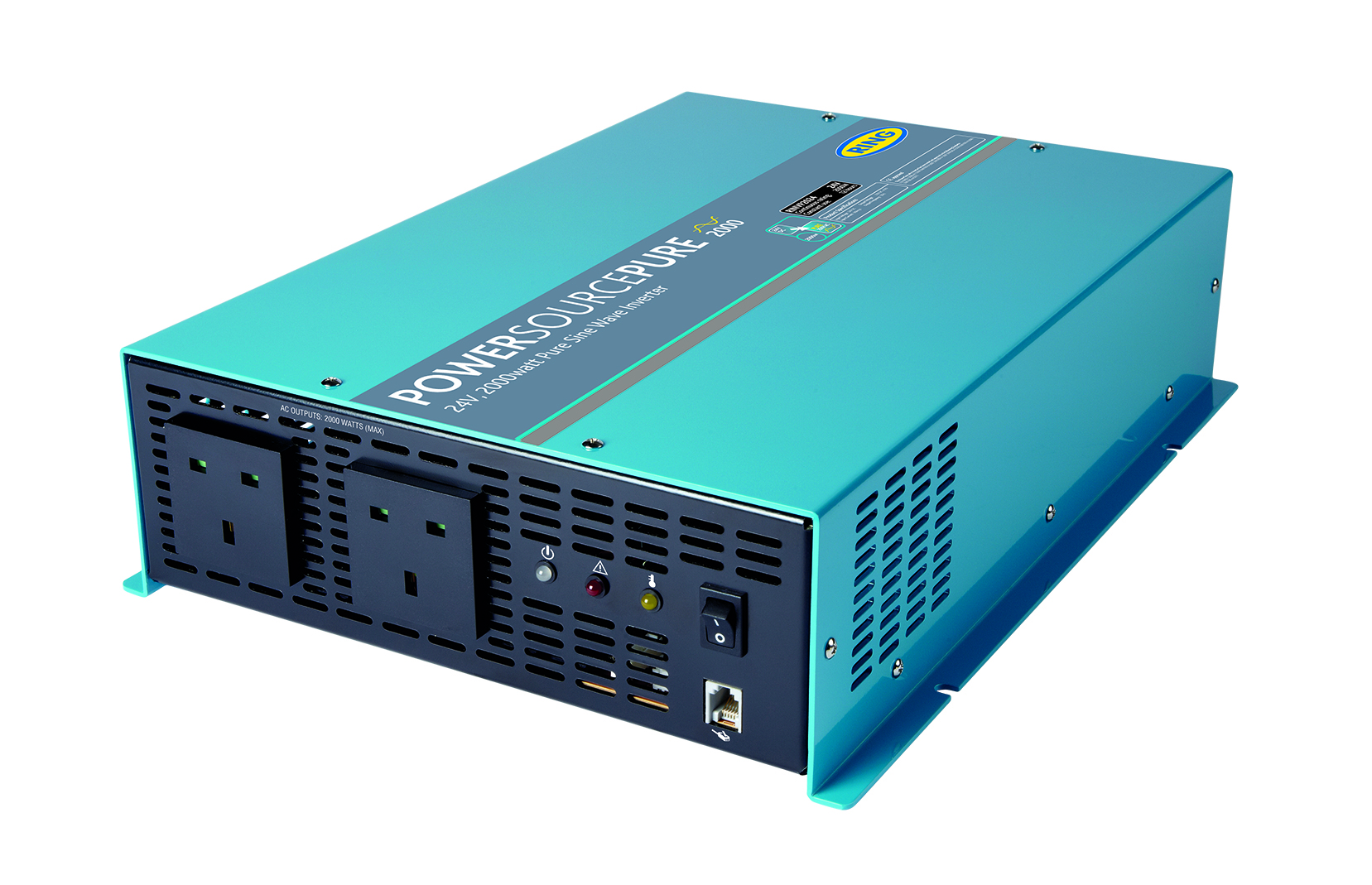

RINVP2024

POWERSOURCEPURE

24V PURE SINE WAVE INVERTER

2000W

  • 2000W pure sine wave inverter
  • Suitable for 24V vehicles
  • Rugged extruded metal casing
  • Heavy duty input cables and clamps
  • Provides continuous power for up to 12 hours
  • Features 2x plug sockets
  • Low power alarm and shut down to prevent inverter draining the battery
  • Fully protected against overload, over temperature and low/high voltage
  • LED display shows operating mode and fault conditions
  • CE approved

Professional 2000W pure sine wave inverter, suitable for 12V vehicles. Converts 12V power into useful 230V power - ideal when working remotely where no mains power is available, and particularly for vehicle conversions. Well suited to demanding applications, with rugged extruded metal casing, heavy duty input cables and clamps for direct connection to batteries and able to provide power for up to 12 hours.

Pure sine wave inverters provide an extremely pure sine wave output, which replicates the normal domestic mains supply. This makes them ideal for powering more sensitive electronics, and able to power the widest range of equipment. This is particularly valuable for powering those products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive audio/visual equipment.

The PowerSourcePure 2000W Inverter is able to power devices up to 2000W, such as mircowaves, an oxygen concentrator or a circular saw. Features 2x plug sockets, available in three pin (part number RINVP2024) and two pin (part number REINVP2024), and includes low power alarm to alert you when the battery powering the inverter is running low - preventing the inverter from draining the vehicle battery - and automatic shut down. Fully protected against overload, over temperature and low/high voltages. The LED display shows operating mode and fault conditions.

Includes remote control port, to add the RINVWRC remote control panel, which provides more convenient control and display of the inverter status for permanent installation.

All Ring inverters are tested and certified to the relevant EMC and LVD Directives.

For Ring's full range of 12 & 24V inverters for commercial vehicles, click here

Spec
Description 2000W Pure Sine Wave Inverter
Input Voltage Range 20V-30V
Input Current 98A (max)
Efficiency @ 75% load >85%
No Load Current Draw <1.0A
Output Voltage 230V AC ±10%
Output Frequency 50Hz
Output Waveform Pure Sine Wave
Cont Power Rating (up to 12 hours) 1000W
Peak Power Rating (up to 200ms) 2000W
Power Saving Mode -
Power Saving Mode Current -
Low Battery Alarm 20V ±1V
Low Battery Shutdown 19.5V ±1V
Thermal Protection 60° ±10°C
AC Mains Outlets No
USB Port 2A
LCD Display Panel No
Display Panel Port No
Current Sensor Port -
Comms Port No
Input Cable Gauge / Length -
Approvals CE-LVD / RoHS / WEEE / E-Mark
RCD Trip Current 30mA
Remote Control Port Yes
Product Dimensions (mm) 99 x 291 x 414
Weight (kg) 6.996
Case Quantity 2 x 1
