RIL6100Y
e-reader
Technical details
RIL6100Y
MAGFLEX
MINI250 YELLOW

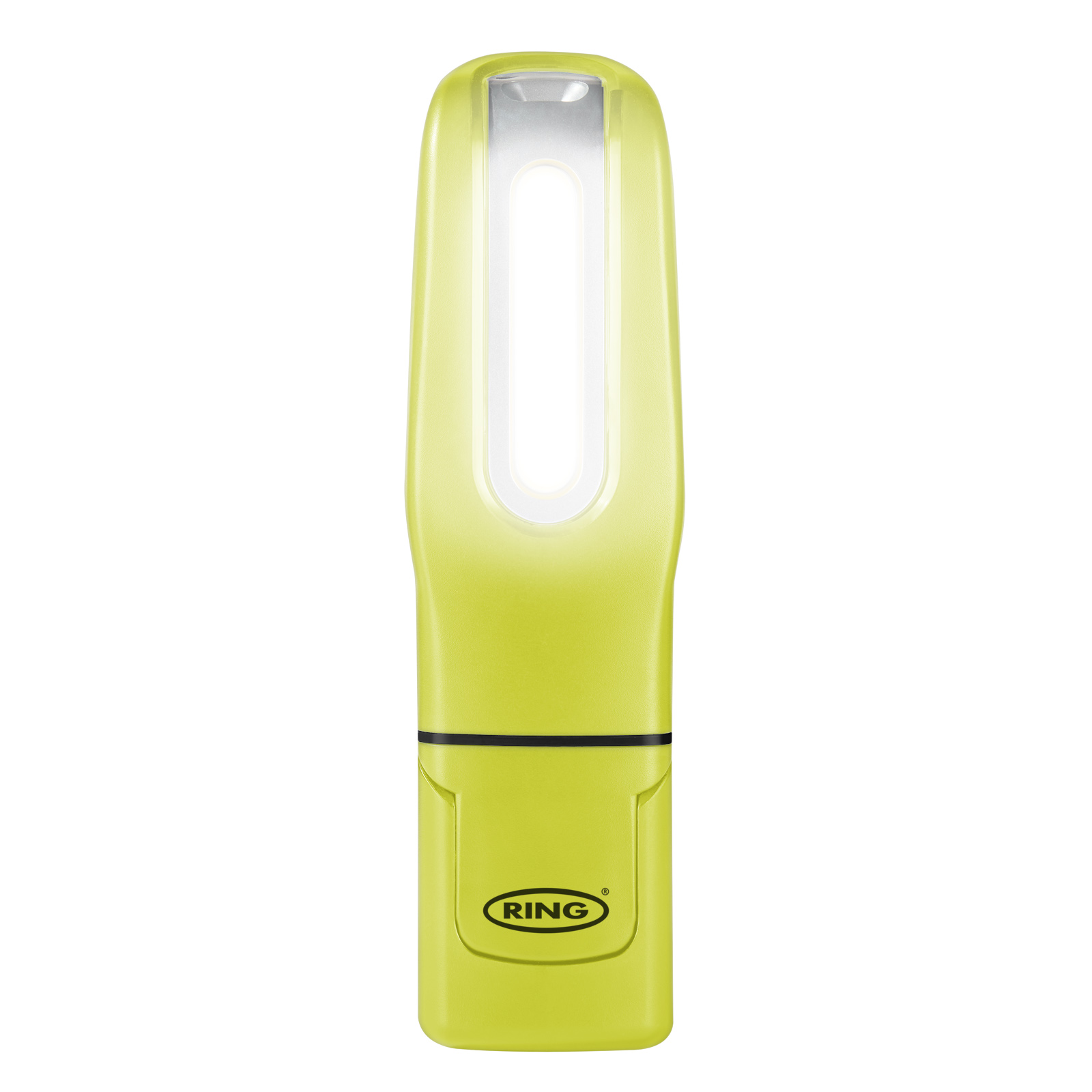

Rechargeable handheld inspection lamp

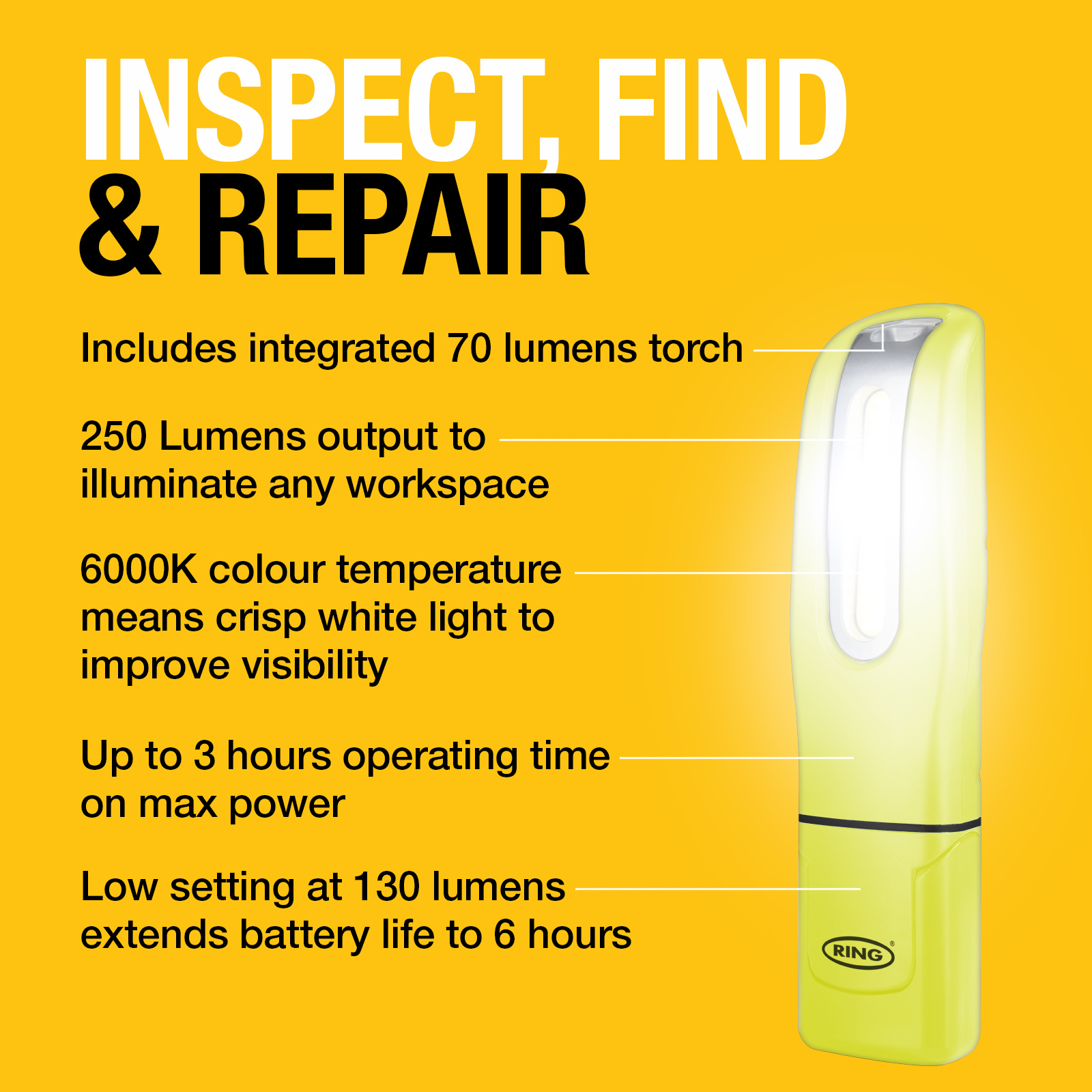

250 Lumens output in a robust housing to withstand tough working environments
Reliable battery life with up to 6 hours operating time from a single charge

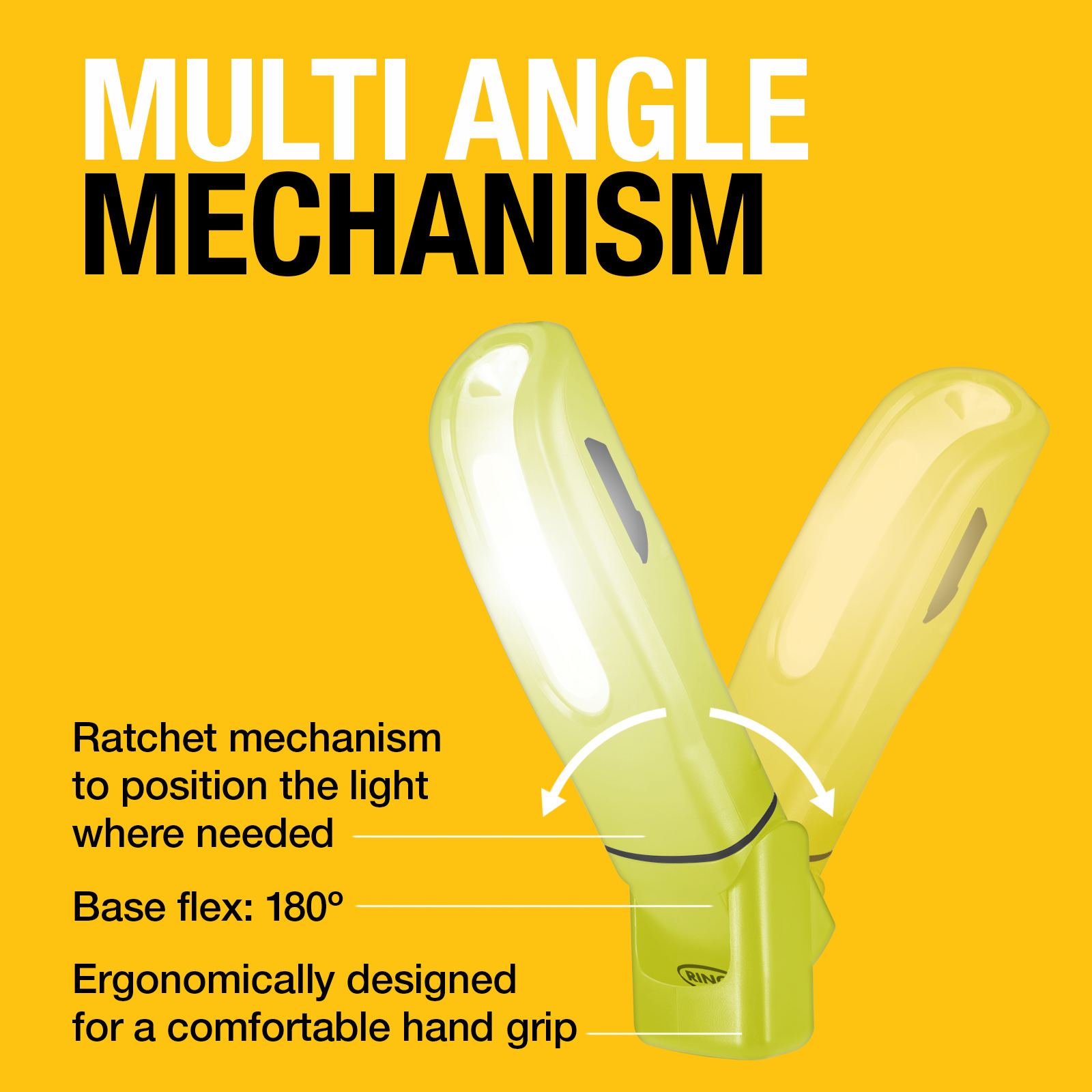

Multi angle positioning 180 degree flex base to adjust the angle to the task at hand

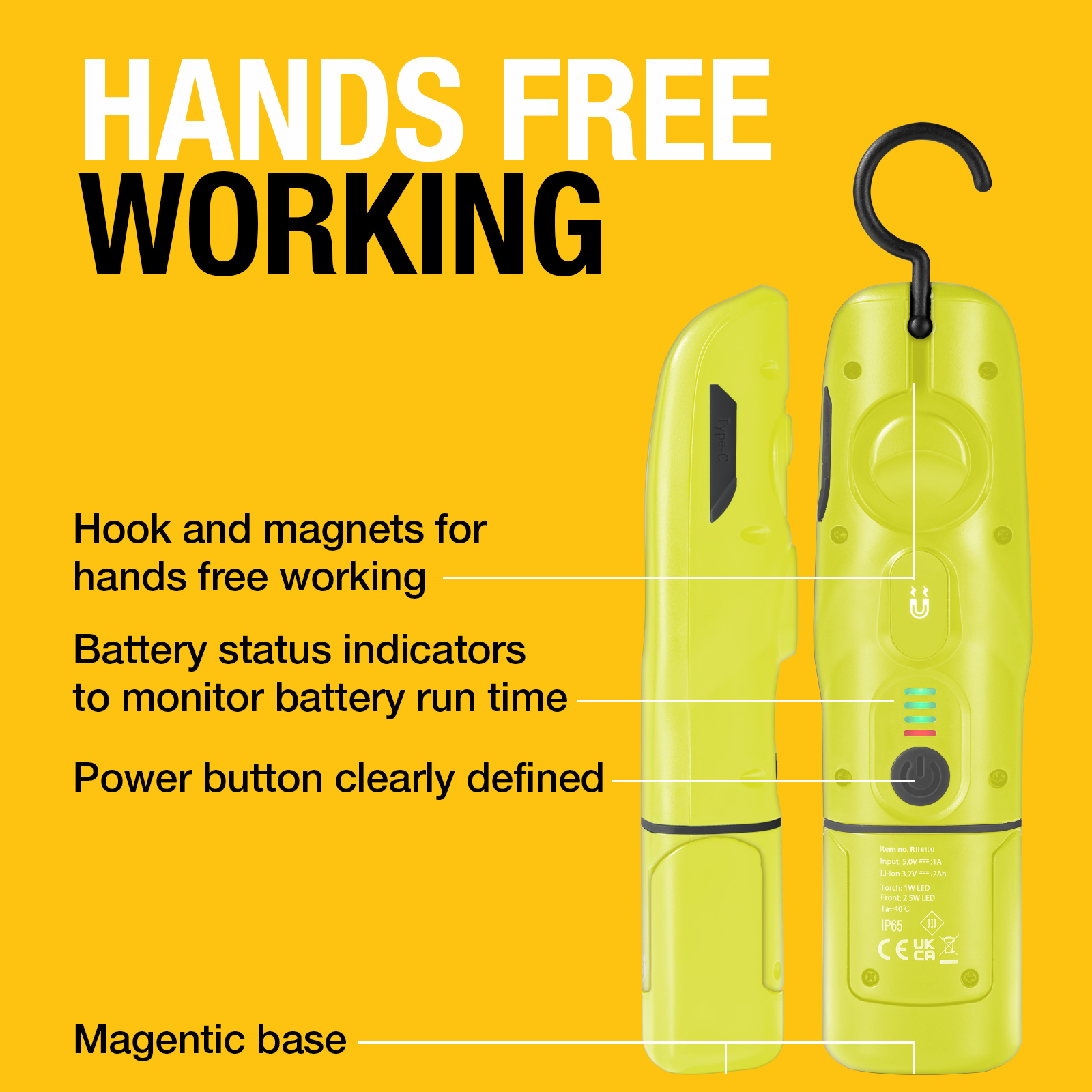

Magnets on the back and base of the lamp as well as a rotating hook for hands free working
Integrated charge level indicator shows the status of the battery during operation or charge mode
Main light emitting surface and charge level indicator provides visual warning of low battery

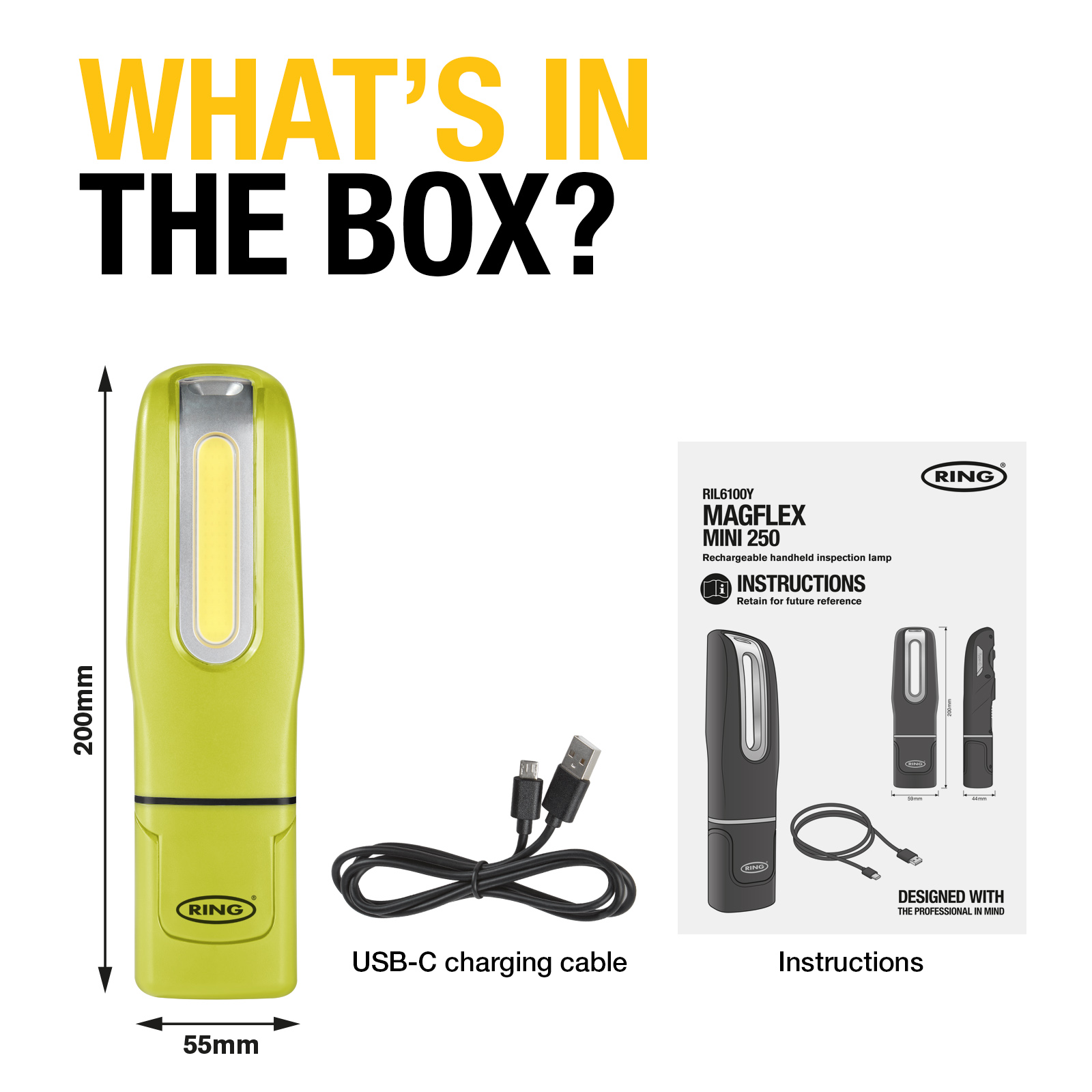

Type-C USB connection for secure consistent connection. USB cable included

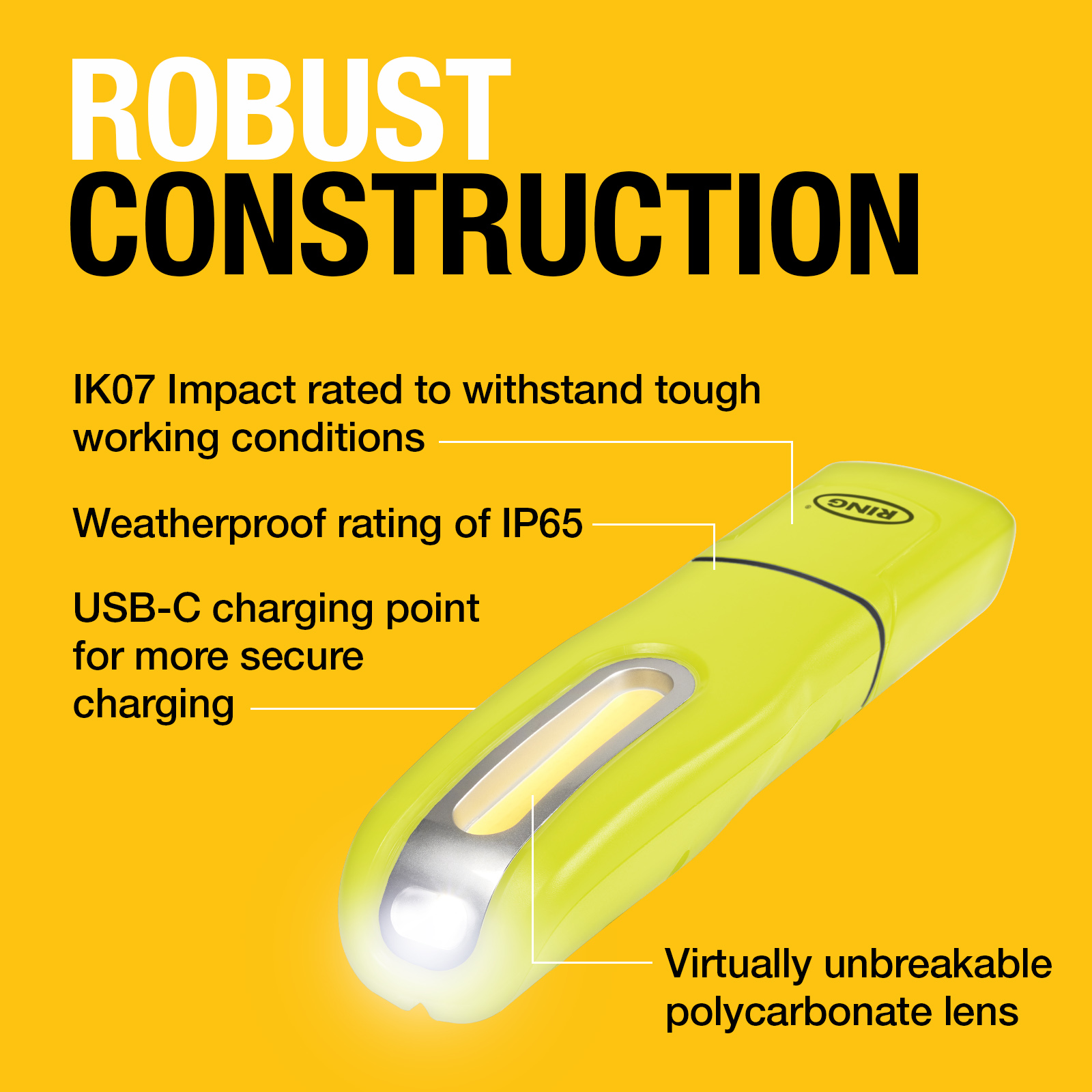

Designed with the professional in mind, the MAGflex MINI250 provides a crisp bright white light where it is needed the most. This 250 lumen multi-angled inspection lamp is tested to IP65 & IK07 standards and operates for up to 6 hours from a single charge. Ideal tool for any tradesmen needing additional light to work with. Bright fluorescent colour to help distinguish the product against dark working environments and identify an individual mechanic or tradesman product.
Related
Products
RIL3600C
MAGFLEX TWIST
LED INSPECTION LAMP
Rechargeable and Cordless
RIL3700C
MAGFLEX UTILITY
LED INSPECTION LAMP
Rechargeable and Cordless
RIL3800C
MAGFLEX SLIM
LED INSPECTION LAMP
With 180º Multi-angle Positioning
RIL4100
SLIM
LED INSPECTION LAMP
Rechargeable and Wireless
RIL6100
MAGFLEX
MINI250
RIL6100B
MAGFLEX
MINI250 BLUE
RIL6200
MAGFLEX
MAX500
RIL6300
MAGFLEX
SLIM500
RIL85
TWIST & FLEX SLIM
LED POCKET INSPECTION LAMP
RIL86
RECHARGEABLE SLIM
LED POCKET INSPECTION LAMP
RUBL1500
MAGFLEX 1000
SUPER FLEX UTILITY LIGHT
RUBL2000
UNDER BONNET
INSPECTION LAMP
Rechargeable, Lightweight and Cordless
Specifications
Specification Documents
Spec
RIL6100Y
RIL3600C
RIL3700C
RIL3800C
RIL4100
RIL6100
RIL6100B
RIL6200
RIL6300
RIL85
RIL86
RUBL1500
RUBL2000
Description
MAGFLEX MINI250 YELLOW
MAGFLEX TWIST LED INSPECTION LAMP
MAGFLEX UTILITY LED INSPECTION LAMP
MAGFLEX SLIM LED INSPECTION LAMP
SLIM LED INSPECTION LAMP
MAGFLEX MINI250
MAGFLEX MINI250 BLUE
MAGFLEX MAX500
MAGFLEX SLIM500
TWIST & FLEX SLIM LED POCKET INSPECTION LAMP
RECHARGEABLE SLIM LED POCKET INSPECTION LAMP
SUPER FLEX UTILITY LIGHT
UNDER BONNET INSPECTION LAMP
Rechargeable
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
Voltage
3.7 V
3.7V
7.4V
3.7V
3.7V DC
3.7 V
3.7 V
3.7V DC
3.7V DC
N/A
N/A
5V
N/A
Watts
7.4 W
8.14W
19.24W
6.6W
10W
7.4W
7.4 W
-
-
-
-
10W
-
Amps
Battery Capacity 2000mAh
N/A
N/A
N/A
Battery Capacity 2600mAh
Battery Capacity 2000mAh
Battery Capacity 2000mAh
Battery Capacity 4500mAh
Battery Capacity 2600mAh
N/A
N/A
N/A
N/A
Light Output
250 Lumens (High) 130 (Low) 70 (Torch)
250 - 450 Lumens
1000 Lumens
250 Lumens (Lamp) 125 (Torch)
-
-
250 Lumens (High) 130 (Low) 70 (Torch)
500 Lumens (High) 250 (low) UV Torch
500 Lumens (High) 250 (Low) 70 (Torch)
200 Lumens (High) 100 (Low) 50 (Torch)
200 Lumens (High) 100 (Low) 50 (Torch)
Max: 1000 Lumens, Mid: 400 Lumens, Low: 100 Lumens
1200 Lumens (High) 600 (Low)
Colour Temperature
-
-
-
-
-
-
-
-
-
6500K
6500K
6500K
Operating Time
3 hrs (High) 6 hrs (Low)
-
2 hrs
3 hrs
1.5 hrs (High), 8 hrs (Low
3hrs (High) 6hrs (Low)
3 hrs (High) 6 hrs (Low)
4.5 hrs (High) 7.5 hrs (Low)
3.5 hrs (High) 6 hrs (Low)
5 hrs (battery dependent)
2 hrs (High) 3 hrs (Low)
2 hrs (High) 4.5 hrs (Low)
Battery Info
3.7V Li-ion 2000mAh
RECHARGEABLE LITHIUM-ION
RECHARGEABLE LITHIUM-ION
RECHARGEABLE LITHIUM-ION
3.7V Li-ion, 2500mAh
3.7V Li-ion 2000mAh
3.7V Li-ion 2000mAh
3.7V Li-ion 4500mAh
3.7V Li-ion 2600mAh
3 x AAA (Included)
800mAh Li-ion
RECHARGEABLE LITHIUM-ION 2 x CUSTOM
4400mAh Li-ion
Impact Rating
-
IK07
-
-
-
-
-
-
-
-
-
IK07 impact rated
IK07
Approvals
-
-
-
-
-
-
-
-
-
CE
CE
CE
Product Dimensions (mm)
202 x 55 x 40
229 x 51 x 45
502 x 49 x 44
33 x 39 x 361
362 x 53 x 53
202 x 55 x 40
202 x 55 x 40
252 x 58 x 43
327 x 41 x 37
164 x 23 x 37
267 x 24 x 39
1479 x 39 x 39
72 x 62 x 1153
Weight (kg)
0.214
0.294
0.494
0.17
0.42
0.241
0.214
0.382
0.2
0.108
0.12
0.286
0.862
