RCV9591
e-reader
Technical details
RCV9591
RECTANGULAR LED FLOOD
WORK LIGHT
Extra Long Life

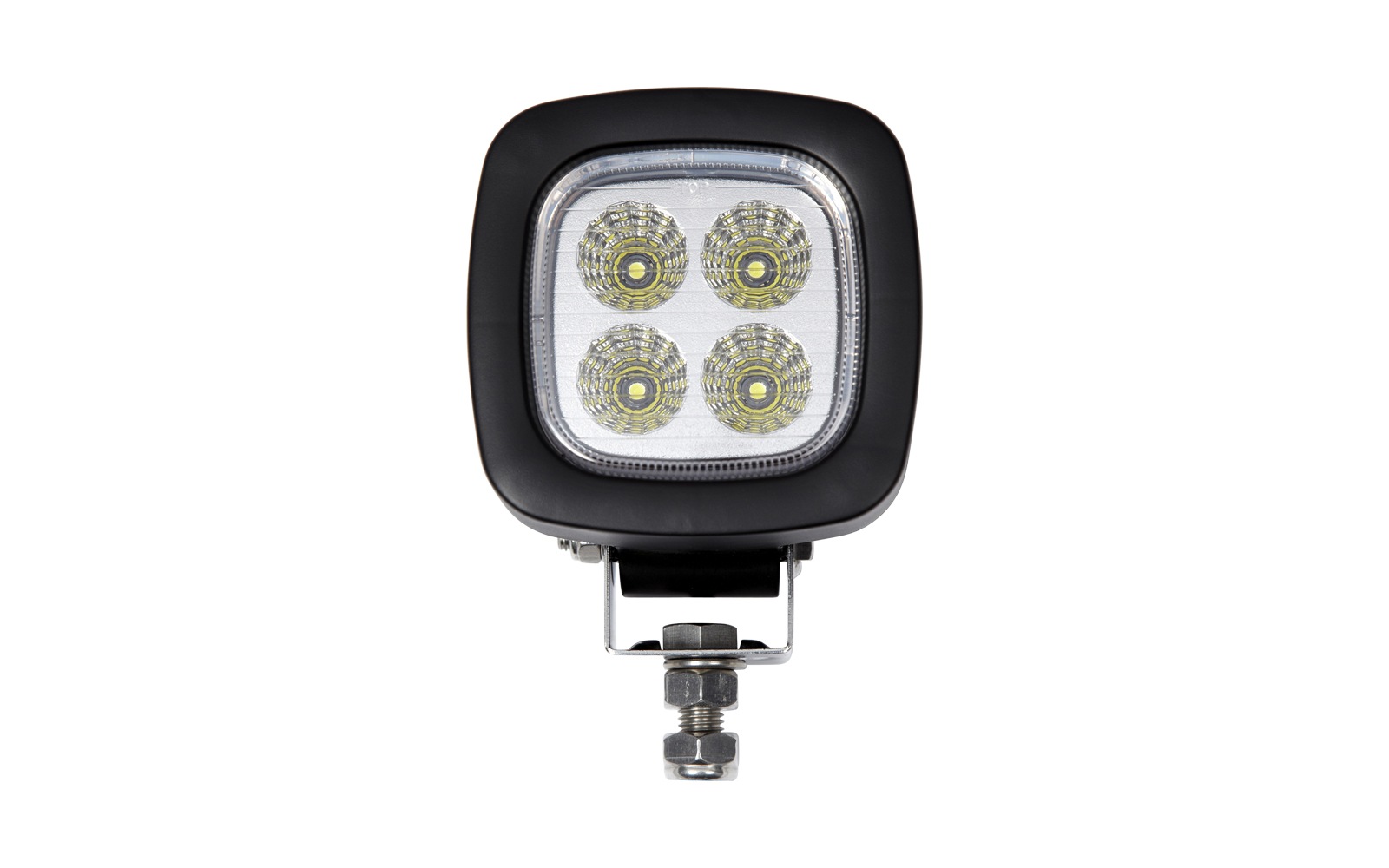

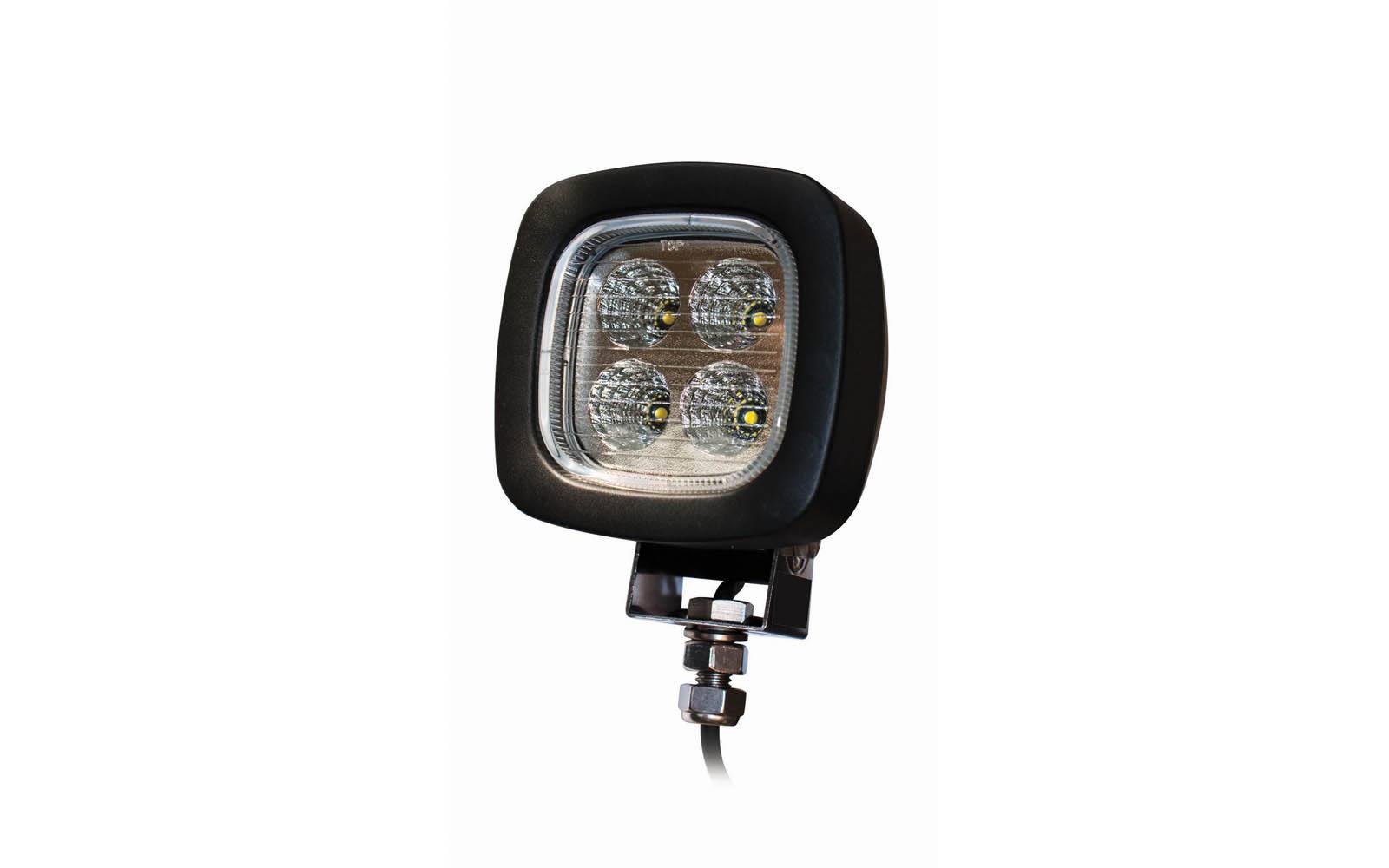

The Ring RCV9591 is a square LED flood work light, with 4x 3W LEDs. Emits 800 lumens of white light. Single bolt fixing. Efficient and with extreme long life - up to 50,000. Multiple voltage, suitable for vehicles between 12V to 48V. Weatherproof - rated IP66. Made from durable materials for tough conditions - diecast aluminium housing, stainless steel mounting bracket and toughened, heat resistant glass lens. ECE approved. Ideal for commercial use.
Related
Products
RCV9590
ROUND LED FLOOD
WORK LIGHT
Extra Long Life
12-48V DC
RCV9594
ROUND LED FLOOD
WORK LIGHT
700 Lumens
12V/24V DC
RCV9595
ROUND LED FLOOD
WORK LIGHT
660 Lumens
12V/24V DC
RCV9596
SQUARE LED FLOOD
WORK LIGHT
700 Lumens
12V/24V DC
RCV9597
MAGNETIC MOUNT
LED WORK LIGHT
700 Lumens
9-33V DC
RCV9602
LED LIGHT BAR
WORK LIGHT
7500 Lumens
12V/24V DC
RCV9603
OVAL LED FLOOD
WORK LIGHT
2000 Lumens
10-33V DC
RCV9607
5 LED
SQUARE WORKLAMP
With Integrated Switch 750 Lumens
RCV9608
5 LED
LIGHTWEIGHT WORKLAMP
Medium Flood 750 Lumens
RCV9609
16 LED
LIGHTWEIGHT WORKLAMP
Medium Flood 1100 Lumens
Spec
RCV9591
RCV9590
RCV9594
RCV9595
RCV9596
RCV9597
RCV9602
RCV9603
RCV9607
RCV9608
RCV9609
Description
LED Flood Work Light
Voltage
12-48V DC
Wattage
12W
Amps
1A
Flood
Medium Flood
Light Source
4 x 3W LED
Light Output
800 Lumens
Colour Temperature
-
Integral Switch
-
Mounting
Bolt mount
Cable Length
2000mm
Housing Material
Diecast Aluminium
Lens Material
Polycarbonate
Approvals
ECE
IP Rating
IP66

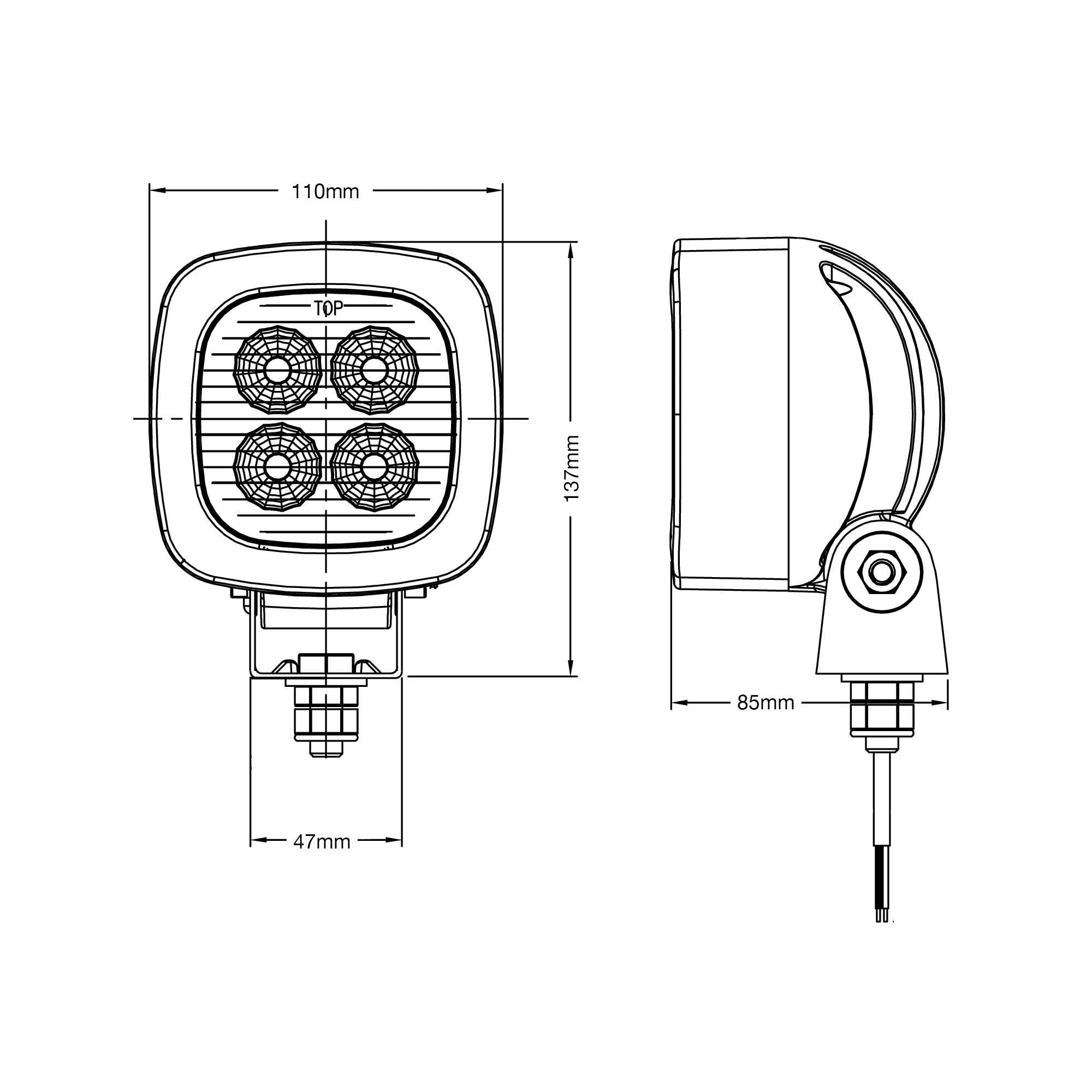

Product Dimensions (mm)
135 x 108 x 80
Weight (kg)
0.89
LED Flood Work Light
12-48V DC
12W
1A
Medium Flood
4 x 3W LED
800 Lumens
-
-
Bolt mount
2000mm
Diecast Aluminium
Polycarbonate
ECE
IP66
178 x 118 x 81
0.852
LED Flood Work Light
10-30V DC
12W
1A
Medium Flood
4 x 3W LED
700 Lumens
N/A
NO
Bolt mount
500mm
Diecast Aluminium
Polycarbonate
Reg 10
IP67
135 x 83 x 66
0.406
LED Flood Work Light
10-30V DC
18W
1.5A
Wide Flood
6 x 3W LED
900 Lumens
N/A
NO
Bolt mount
500mm
Diecast Aluminium
Polycarbonate
CE
IP67
126 x 115 x 33
0.384
LED Flood Work Light
10-30V DC
15W
1.3A
Wide Flood
5 x 3W LED
700 Lumens
N/A
NO
Bolt mount
500mm
Diecast Aluminium
Polycarbonate
CE
IP67
117 x 107 x 35
0.41
LED Flood Work Light
10-30V DC
10W
0.8A
Medium Flood
5 x 2W LED
700 Lumens
N/A
NO
Magnetic mount
3000mm
Diecast Aluminium
Polycarbonate
CE
IP67
172 x 94 x 89
0.796
LED Bar Work Light
12-24V DC
90W
-
2 x wide flood (+ 3 x spot)
-
7500 Lumens
-
-
Bolt mount
-
Diecast Aluminium
Polycarbonate
Reg 10
IP67
99 x 582 x 95
2.898
Halogen Work Light
12/24V DC
55W / 70W
4.6A / 2.9A
Wide Flood
-
780 Lumens
H3
-
-
Polypropylene
Polycarbonate
-
-
120 x 143 x 0.06
0.68
LED Flood Work Light
10-30V DC
15W
1.3A
Medium Flood
5 x 3W LED
750 Lumens
5600K
Yes
Bolt mount
300mm
Diecast Aluminium
Polycarbonate
Reg 10
IP67
127 x 107 x 57
0.43
Lightweight LED Flood Work Light
10-30V DC
15W
1.25A
Medium Flood
5 x 3W LED
750 Lumens
n/a
No
Bolt mount
300mm
Thermal Plastic
Polycarbonate
Reg 11
IP68
-
-
Lightweight LED Flood Work Light
10-30V DC
48W
4A
Medium Flood
16 x 3W LED
1100 Lumens
n/a
No
Bolt mount
300mm
Thermal Plastic
Polycarbonate
Reg 12
IP69
125 x 106 x 22
0.276
