| RCV9590

Technical details

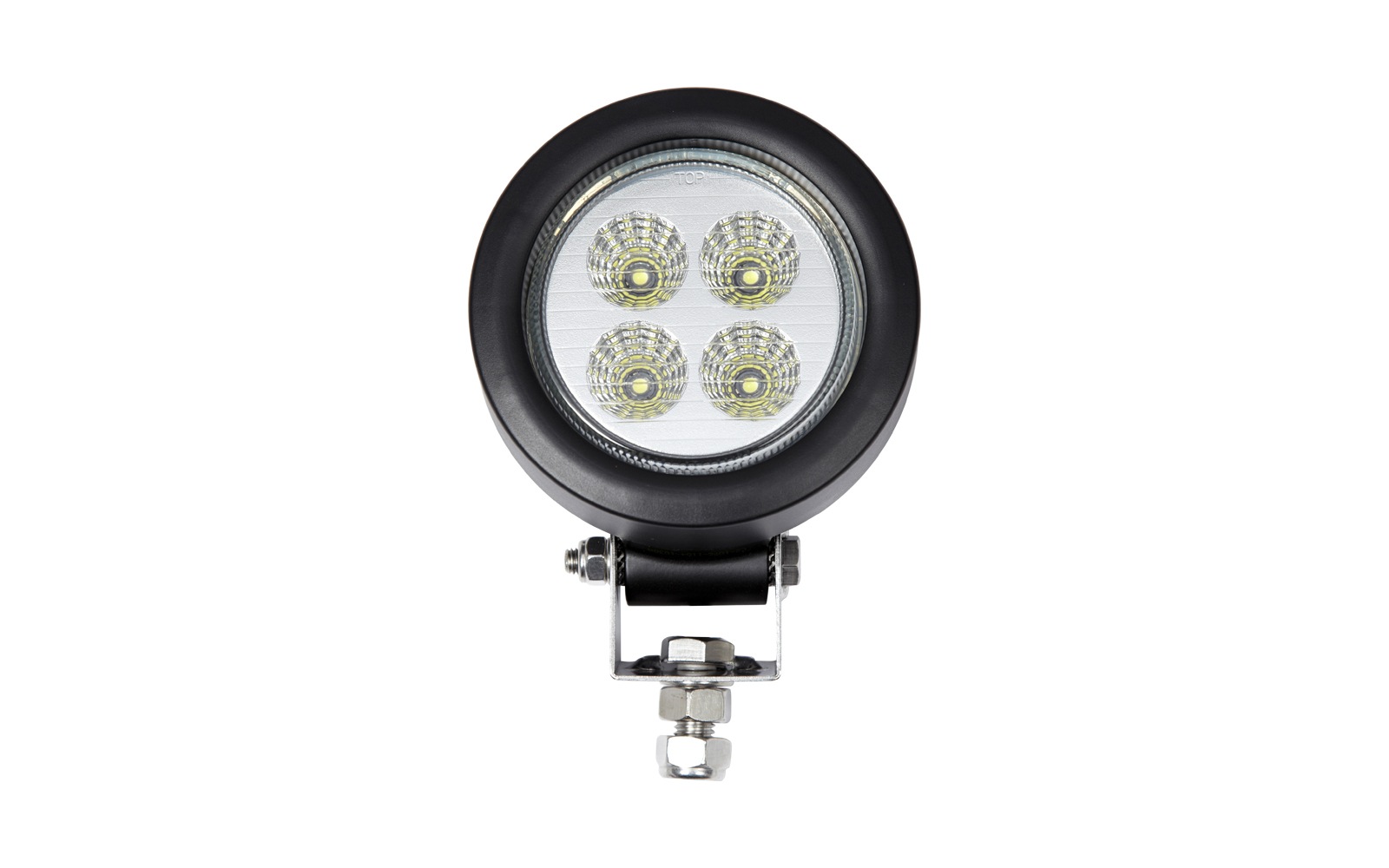

RCV9590

ROUND LED FLOOD

WORK LIGHT

Extra Long Life

LED work light
Emits 800 lumens
Extreme long life - up to 50,000 hours
Suitable for vehicles between 12V and 48V
Rated IP66
ECE approved
Three year warranty

The Ring RCV9590 is a round LED flood work light, with 4x 3W LEDs. Emits 800 lumens of white light. Single bolt fixing. Efficient and with extreme long life - up to 50,000. Multiple voltage, suitable for vehicles between 12V to 48V. Weatherproof - rated IP66. Made from durable materials for tough conditions - diecast aluminium housing, stainless steel mounting bracket and toughened, heat resistant glass lens. ECE approved. Ideal for commercial use.

Related Products

RCV9571

18 LED
ROUND WORKLAMP

RCV9572

9 LED
ROUND WORKLAMP

RCV9573

9 LED
SQUARE WORKLAMP

RCV9574

16 LED
SQUARE WORKLAMP

RCV9575

8 LED
OVAL WORKLAMP

RCV9577

9 LED
SQUARE WORKLAMP

RCV9578

4 LED
SQUARE WORKLAMP

RCV9594

ROUND LED FLOOD
WORK LIGHT

RCV9595

ROUND LED FLOOD
WORK LIGHT

RCV9596

SQUARE LED FLOOD
WORK LIGHT

RCV9597

MAGNETIC MOUNT
LED WORK LIGHT

RCV9602

LED LIGHT BAR
WORK LIGHT

RCV9603

OVAL LED FLOOD
WORK LIGHT

RCV9607

5 LED
SQUARE WORKLAMP

RCV9608

5 LED
LIGHTWEIGHT WORKLAMP

RCV9609

16 LED
LIGHTWEIGHT WORKLAMP

Specifications

Spec	RCV9590	RCV9571	RCV9572	RCV9573	RCV9574	RCV9575	RCV9577	RCV9578	RCV9594	RCV9595	RCV9596	RCV9597	RCV9602	RCV9603	RCV9607	RCV9608	RCV9609
Description	LED Flood Work Light	Flood Beam Worklamp	Flood Beam Worklamp	Spot/Flood Beam Worklamp	Spot/Flood Beam Worklamp	Flood Beam Worklamp	Flood Beam Worklamp	Flood Beam Worklamp	LED Flood Work Light	LED Flood Work Light	LED Flood Work Light	LED Flood Work Light	LED Bar Work Light	Halogen Work Light	LED Flood Work Light	Lightweight LED Flood Work Light	Lightweight LED Flood Work Light
Voltage	12-48V DC	-	-	-	-	-	-	-	10-30V DC	10-30V DC	10-30V DC	10-30V DC	12-24V DC	12/24V DC	10-30V DC	10-30V DC	10-30V DC
Wattage	12W	36W Raw Wattage	20W Raw Wattage	40W Raw Wattage	27W Raw Wattage	20W Raw Wattage	27W Raw Wattage	20W Raw Wattage	12W	18W	15W	10W	90W	55W / 70W	15W	15W	48W
Amps	1A	3A @ 12V; 1.5A @ 24V	1.7A @ 12V; 0.85A @ 24V	3.33A @ 12V; 1.66A @ 24V	2.25A @ 12V; 1.13A @ 24V	1.7A @ 12V; 0.85 @ 24V	2.25A @ 12V; 1.13A @ 24V	1.7A @ 12V; 0.85A @ 24V	1A	1.5A	1.3A	0.8A	-	4.6A / 2.9A	1.3A	1.25A	4A
Flood	Medium Flood	-	-	-	-	-	-	-	Medium Flood	Wide Flood	Wide Flood	Medium Flood	2 x wide flood (+ 3 x spot)	Wide Flood	Medium Flood	Medium Flood	Medium Flood
Light Source	4 x 3W LED	18 x 2W LED	9 x 3W LED	16 x 3W LED	9 x 3W LED	8 x 3W LED	9 x 3W LED	4 x 10W LED	4 x 3W LED	6 x 3W LED	5 x 3W LED	5 x 2W LED	-	-	5 x 3W LED	5 x 3W LED	16 x 3W LED
Light Output	800 Lumens	1300 Lumens	2200 Lumens	2000 Lumens	1200 Lumens	700 Lumens	1900 Lumens	1500 Lumens	700 Lumens	900 Lumens	700 Lumens	700 Lumens	7500 Lumens	780 Lumens	750 Lumens	750 Lumens	1100 Lumens
Colour Temperature	-	-	-	-	-	-	-	-	N/A	N/A	N/A	N/A	-	H3	5600K	n/a	n/a
Integral Switch	-	-	-	-	-	-	-	-	NO	NO	NO	NO	-	-	Yes	No	No
Mounting	Bolt mount	-	-	-	-	-	-	-	Bolt mount	Bolt mount	Bolt mount	Magnetic mount	Bolt mount	-	Bolt mount	Bolt mount	Bolt mount
Cable Length	2000mm	300mm	300mm	300mm	300mm	300mm	400mm	300mm	500mm	500mm	500mm	3000mm	-	Polypropylene	300mm	300mm	300mm
Housing Material	Diecast Aluminium	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy	Diecast Aluminium	Diecast Aluminium	Diecast Aluminium	Diecast Aluminium	Diecast Aluminium	Polycarbonate	Diecast Aluminium	Thermal Plastic	Thermal Plastic
Lens Material	Polycarbonate	PC	PC	PC	PC	PC	PC	PC	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	-	Polycarbonate	Polycarbonate	Polycarbonate
Approvals	ECE	-	-	-	-	-	-	-	Reg 10	CE	CE	CE	Reg 10	-	Reg 10	Reg 11	Reg 12
IP Rating	IP66	-	-	-	-	-	-	-	IP67	IP67	IP67	IP67	IP67	120 x 143 x 0.06	IP67	IP68	IP69

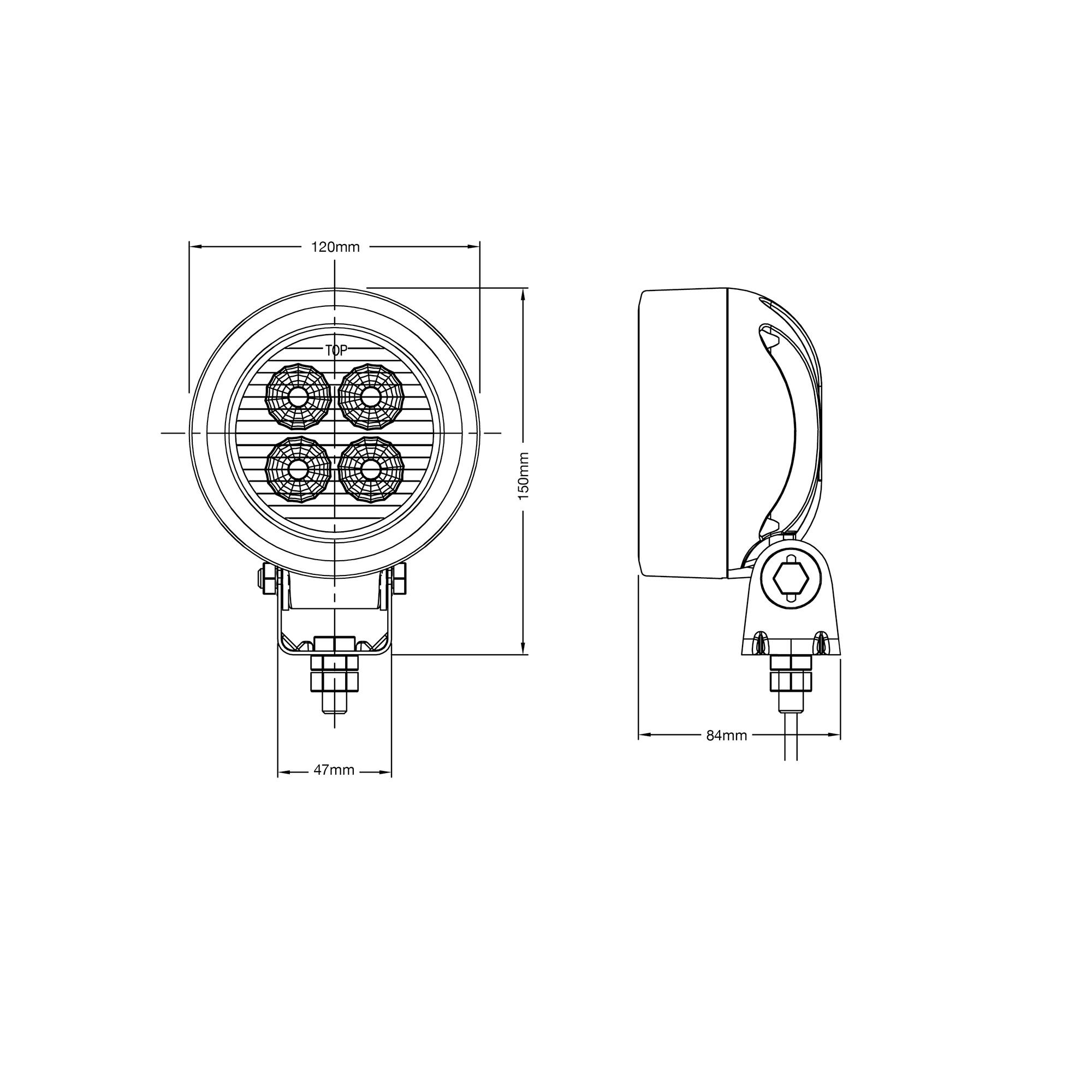

Product Dimensions (mm)	178 x 118 x 81	144 x 122 x 40mm	Ø113 x 48.5mm	110 x 128 x 57mm	109 x 138 x 41mm	141.5 x 90 x 64.5mm	100 x 116 x 47mm	75.5 x 112 x 47mm	135 x 83 x 66	126 x 115 x 33	117 x 107 x 35	172 x 94 x 89	99 x 582 x 95	0.68	127 x 107 x 57	-	125 x 106 x 22
Weight (kg)	0.852	-	-	-	-	-	-	-	0.406	0.384	0.41	0.796	2.898	0.43	-	0.276
