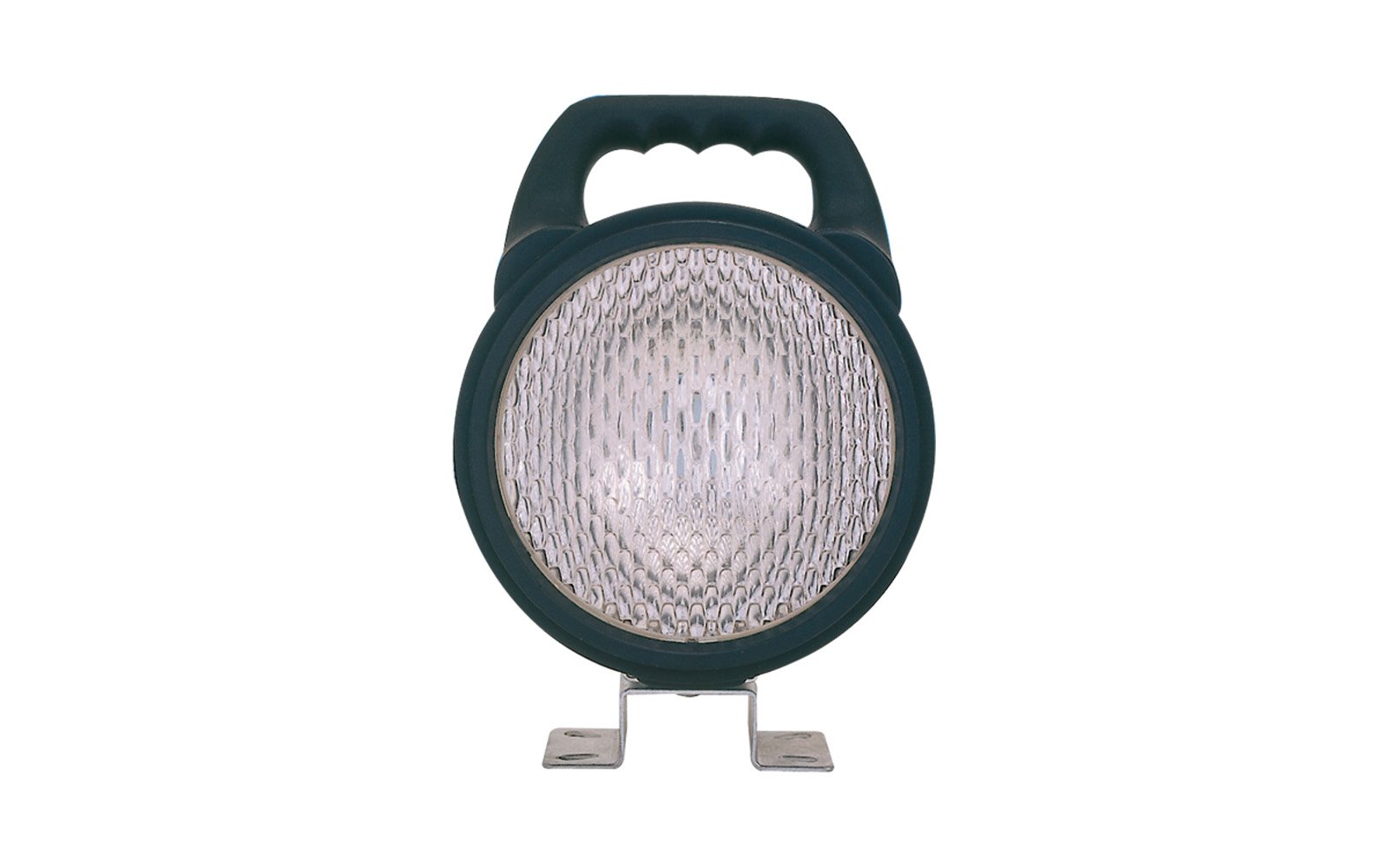

work lighting RCV9540

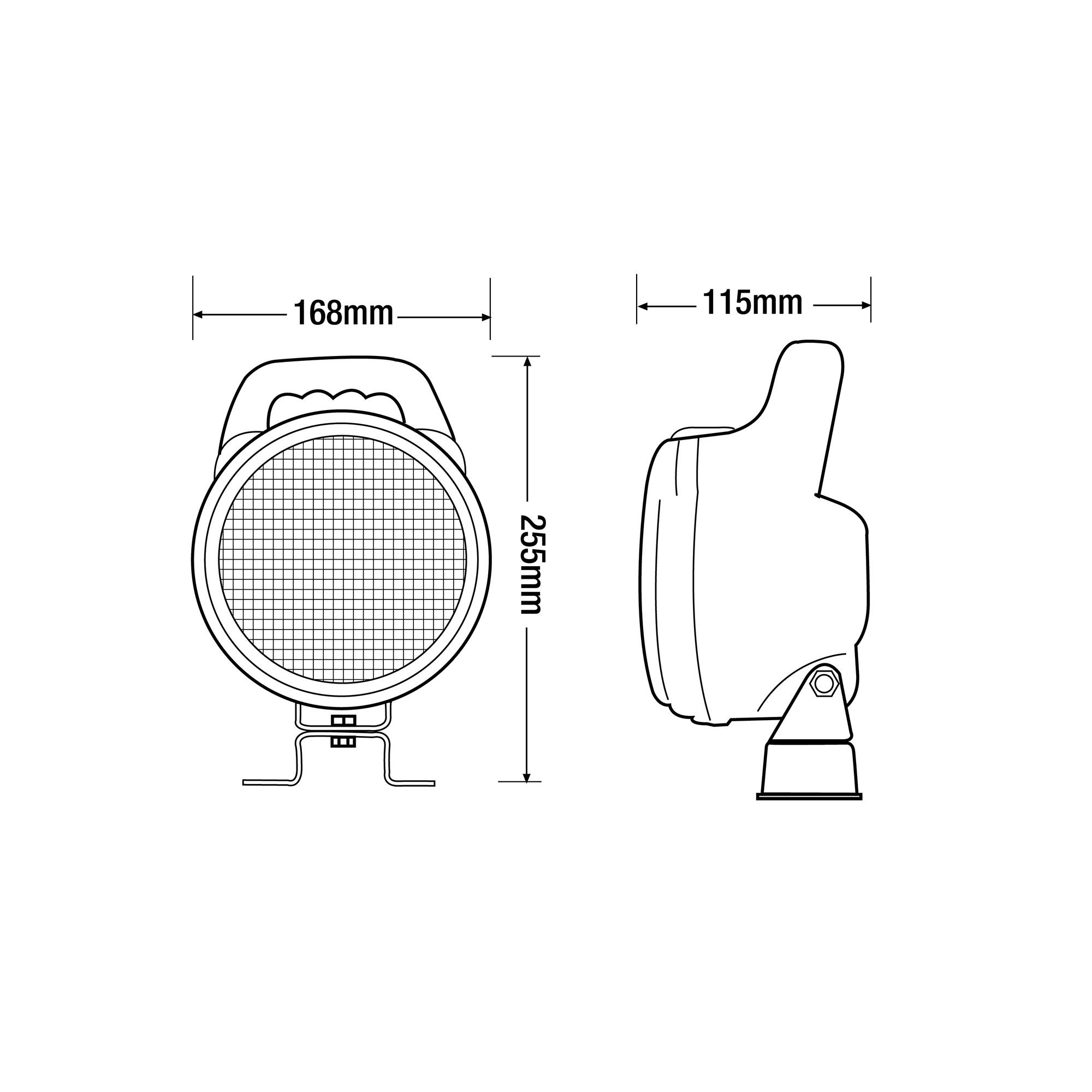

RCV9540 diagram
work lighting RCV9540
RCV9540 diagram
RCV9540

HALOGEN

WORK LIGHT

Round

  • Round halogen work light
  • Emits 680 lumens
  • Wide flood beam
  • Suitable for 12V and 24V vehicles
  • Requires H3 bulb
  • Impact and heat resistant polypropylene housing
  • Clear polycarbonate lens
  • Includes protected switch

The Ring RCV9540 is a halogen work light with wide flood beam. Dual voltage: suitable for 12V and 24V vehicles. Emits 680 lumens. Requires H3 bulb fitment. Impact and heat resistant polypropylene housing, with tough, clear polycarbonate lens. Includes protected switch.

For Ring's full range of work lighting, click here

Spec
Description Halogen Work Light Halogen Work Light Halogen Work Light Halogen Spot Light Halogen Work Light Halogen Work Light
Voltage 12/24V DC 12-80V DC 12/24V DC 12/24V DC 12/24V DC12/24V DC
Wattage 55W / 70W 45-55W 55W / 70W 55W / 70W 55W / 70W 55W / 70W
Amps 4.6A / 2.9A ---4.6A / 2.9A4.6A / 2.9A
Flood Wide Flood Wide Flood Wide Flood -Wide FloodWide Flood
Light Source R453 / R460 ---860 Lumens-
Light Output 680 Lumens 610 Lumens 1000 Lumens 690 Lumens -780 Lumens
Bulb Required H3 H3 H3H3H3H3
Mounting - -----
Cable Length 290mm -----
Housing Material Polypropylene Polypropylene Polypropylene Polypropylene PolypropylenePolypropylene
Lens Material Polycarbonate PolycarbonateGlass PolycarbonatePolycarbonatePolycarbonate
Approvals - -----
IP Rating - -----
Product Dimensions (mm) 253 x 168 x 119 175 x 77 x 80178 x 160 x 116239 x 177 x 89140 x 110 x 12688 x 99 x 165
Weight (kg) 0.772 0.2320.8760.6520.7540.45
