RCV2213
e-reader
Technical details

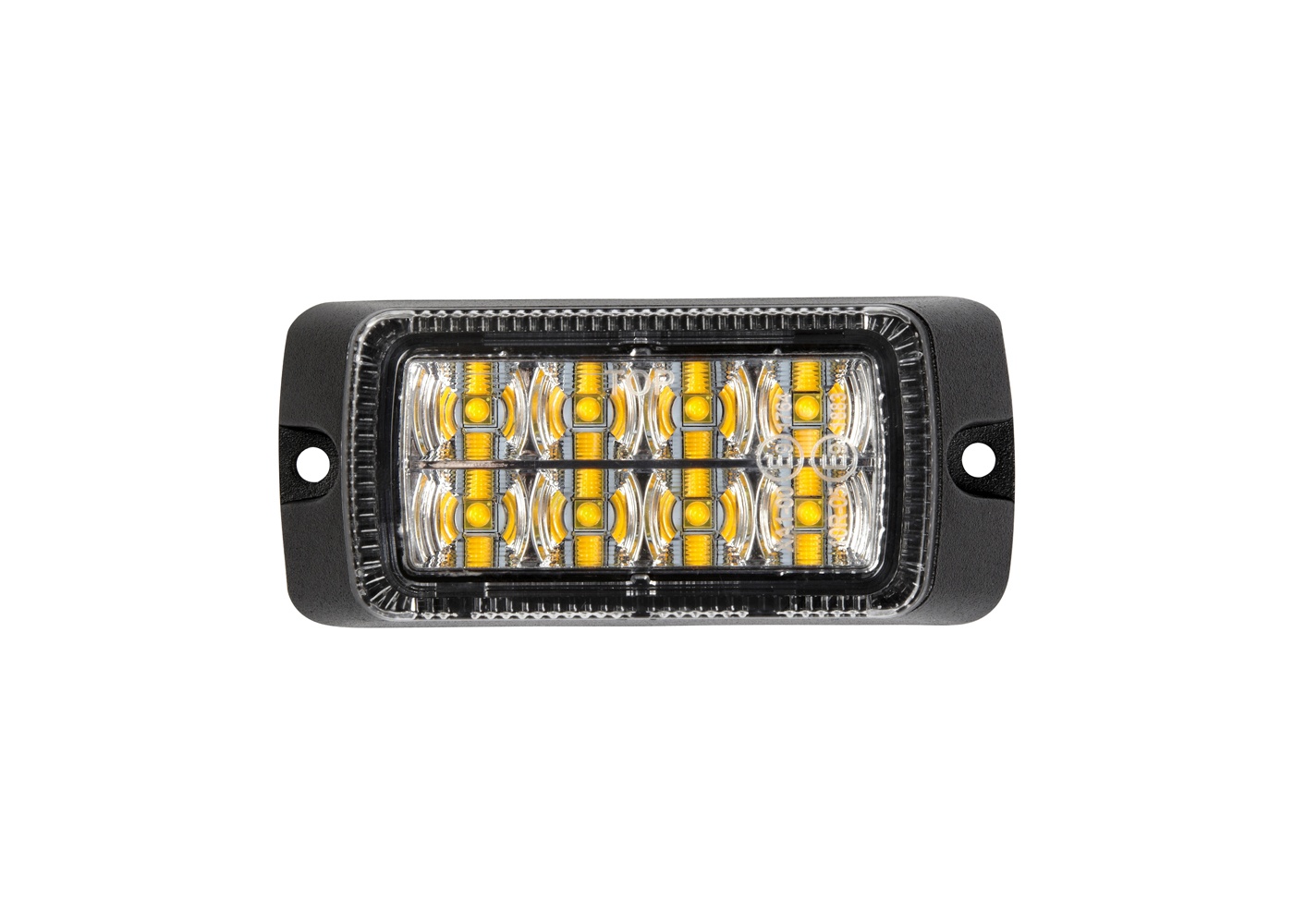

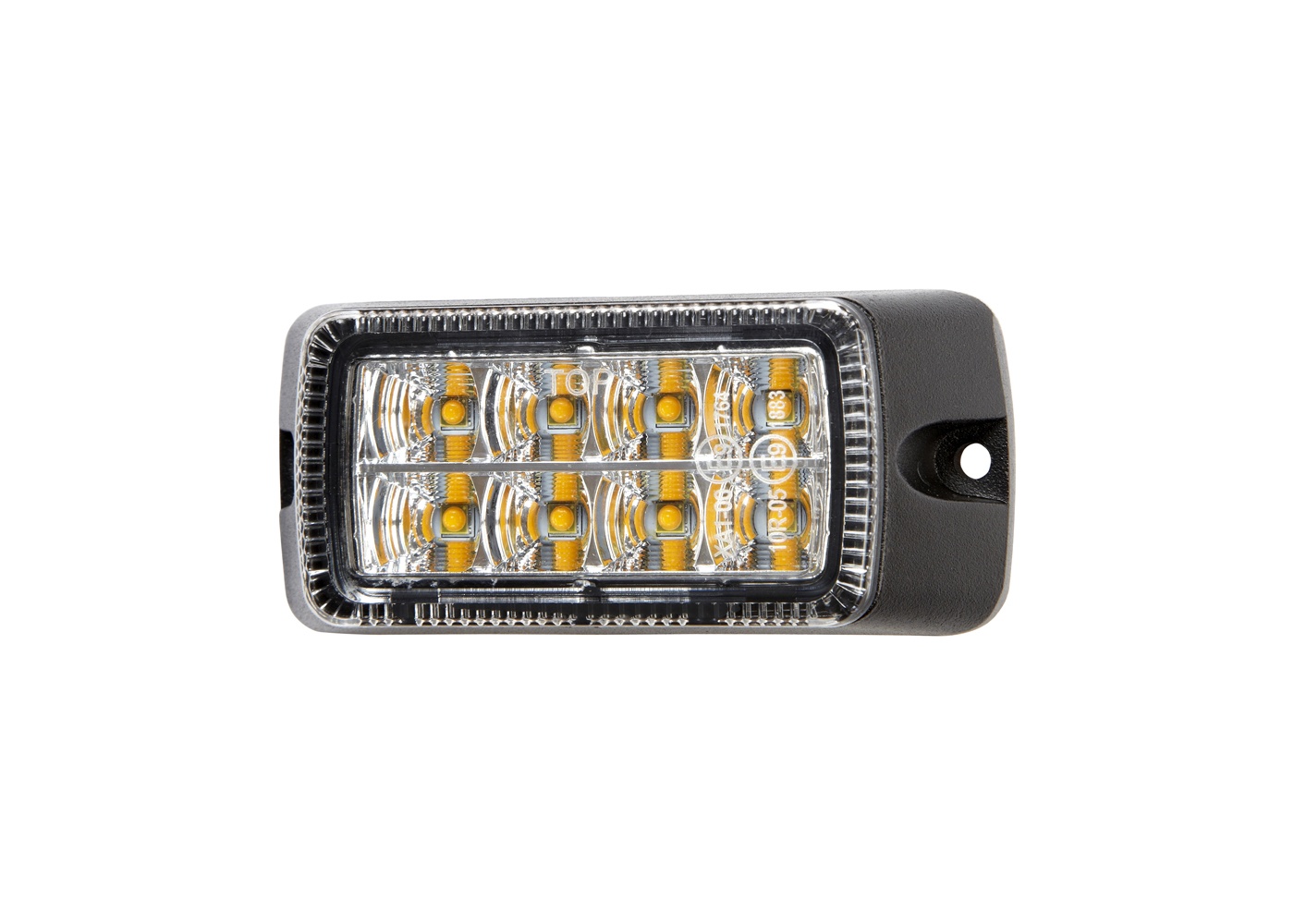

RCV2213
8 LED AMBER
STROBE LIGHT
10 x Flash Patterns
LED amber strobe light
8x 3W LEDs
Surface mounted
Synchronise with up to 10 other RCV2213 strobe units
Energy efficient, long life LEDs
10 flash patterns
Rated IP67
E approved
Three year warranty
LED amber strobe light, with 8x 3W LEDs. Multiple voltage, suitable for vehicles between 10V and 33V. Able to be synchronised with up to 10 other strobe units. Choose from 10 flash patterns. Energy efficient and long life. Made from resilient diecast aluminium and polycarbonate, and rated IP67 - dust and waterproof. Reg 65 and Reg 10 approved. Ideal for commercial use.
Related
Products
RCV2210
6 LED AMBER
STROBE LIGHT
10 x Flash Patterns
10-30V DC 18W
RCV2212
3 LED AMBER
STROBE LIGHT
10 x Flash Patterns
10-30V DC 2W
RCV2214
4 LED AMBER
SLIMLINE STROBE LIGHT
19 x Flash Patterns
10-30V DC 2W
RCV2215
6 LED AMBER
SLIMLINE STROBE LIGHT
19 x Flash Patterns
10-30V DC 3W
RCV2216
6 LED AMBER
SLIMLINE STROBE LIGHT
REG65 Approved
10-30V DC 18W
RCV2217
6 LED AMBER
ROOF MOUNTED STROBE LIGHT
REG65 Approved
10-30V DC 18W
RCV2218
LED AMBER
STROBE LIGHT
8 x 3W LED
DUAL VOLTAGE
RCV2219
LED AMBER
STROBE LIGHT
6.3W LED
DUAL VOLTAGE
Spec
RCV2213
RCV2210
RCV2212
RCV2214
RCV2215
RCV2216
RCV2217
RCV2218
RCV2219
Description
8 LED Amber Strobe
Voltage
10-30V DC
Wattage
24W
Amps
2.0A
Light Source
8 x 3W LED
Flash Patterns
10
Synchronisation
up to 10 other strobe units
Mounting
Surface
Cable Length
200mm
Bracket
-
Housing Material
Diecast Aluminium
Lens Material
Polycarbonate
Approvals
Reg 10 / Reg 65
IP Rating
IP67
Product Dimensions (mm)
41 x 93 x 26
Weight (kg)
0.144
6 LED Amber Strobe
10-30V DC
18W
1.5A
6 x 3W LED
10
up to 10 other strobe units
Surface
200mm
N/A
Diecast Aluminium
Polycarbonate
Reg 10 / Reg 65
IP67
138 x 46 x 30
0.166
3 LED Amber Strobe
10-30V DC
9W
0.75A
3 x 3W LED
10
up to 10 other strobe units
Surface
200mm
N/A
Diecast Aluminium
Polycarbonate
Reg 10 / Reg 65
IP67
39 x 85 x 26
0.104
4 LED Slimline Amber Strobe
10-30V DC
2W
0.17A
4 x 0.5W LED
19
up to 10 other strobe units
Surface
200mm
RCV2214BR
Diecast Aluminium
Polycarbonate
Reg 10
IP67
28 x 112 x 10
0.039
6 LED Slimline Amber Strobe
10-30V DC
3W
0.25A
6 x 0.5W LED
19
up to 10 other strobe units
Surface
200mm
RCV2215BR
Diecast Aluminium
Polycarbonate
Reg 10
IP67
28 x 112 x 10
0.042
6 LED Slimline Amber Strobe
10-30V DC
18W
1.5A
6 x 3W LED
10
up to 10 other strobe units
Surface
200mm
RCV2216BR
Diecast Aluminium
Polycarbonate
Reg 10 / Reg 65
IP67
32 x 120 x 13
0.062
6 LED Roof Mounted Amber Strobe
10-30V DC
18W
1.5A @ 12V, 0.75A @ 24V
6 x 3W LED
10
Yes
Bracket
500mm
Included
ABS
Polycarbonate
Reg 10 / Reg 65
IP67
39 x 176 x 55
0.346
Amber Strobe
-
9.5W
0.8A@12V; 0.4A@24V
LED
-
-
-
300mm
-
Plastic
PC
-
-
130 x 34 x 16mm
-
Amber Strobe
-
6.3W
0.5A@12V; 0.25A@24V
LED
-
-
-
300mm
-
ADC12
PC
-
-
80 x 29 x 10mm
-
